| Basic Information | |||
| Driving license: | A2 | Announcement Model: | ZZ4256V384HF1LW |
| Drive type: | 6X4 | Wheelbase: | 3800+1400mm |
| engine: | Sinotruk MT13.44-60 | Gearbox: | Sinotruk HW25712XSTCL |
| Body length: | 7.525 m | Body width: | 2.52 m |
| Ride height: | 3.98 m | Front track: | 2041mm |
| Rear track: | 1830/1830mm | Vehicle weight: | 9.68 tons |
| Total mass: | 25 tons | Total traction mass: | 39.1 tons |
| Maximum speed: | 80km/h | Market Segments: | Dangerous Goods Transport |
| Origin: | Zhangqiu, Shandong | Tonnage level: | Heavy Truck |
| Fuel Type: | Liquefied Natural Gas (LNG) | ||
| Engine parameters | |||
| Engine Model: | Sinotruk MT13.44-60 | Engine Brand: | Sinotruk |
| Number of cylinders: | 6 cylinders | Fuel Type: | Liquefied Natural Gas (LNG) |
| Cylinder arrangement: | In-line | Displacement: | 12.419L |
| Emission standards: | National VI | Maximum horsepower: | 440 hp |
| Maximum output power: | 327kW | Maximum Torque: | 2100N m |
| Maximum torque speed: | 1000-1400rpm | Rated speed: | 1800rpm |

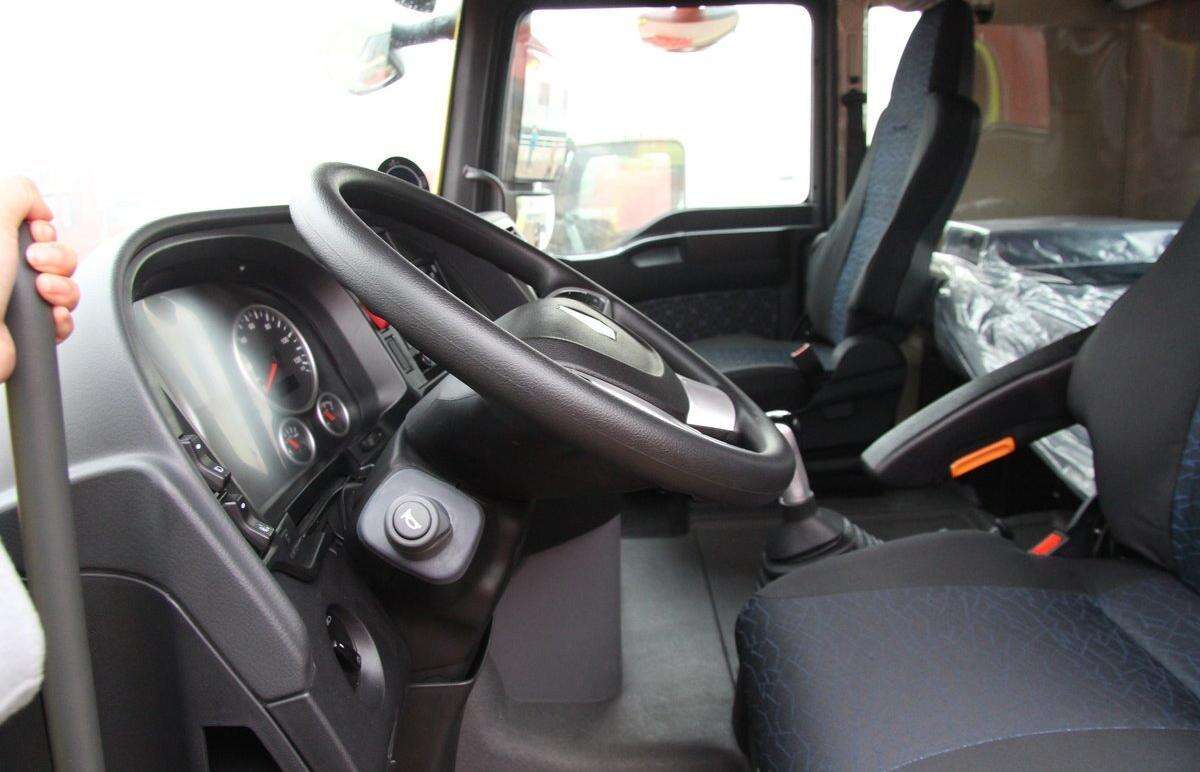

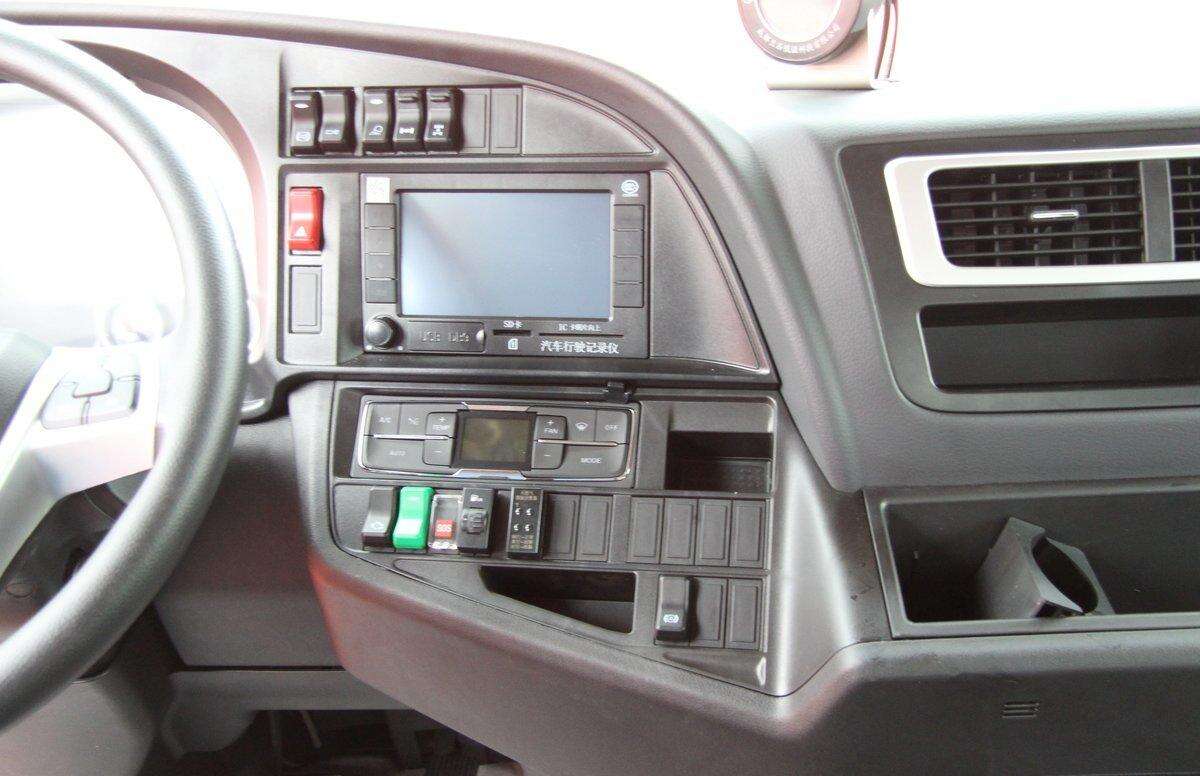

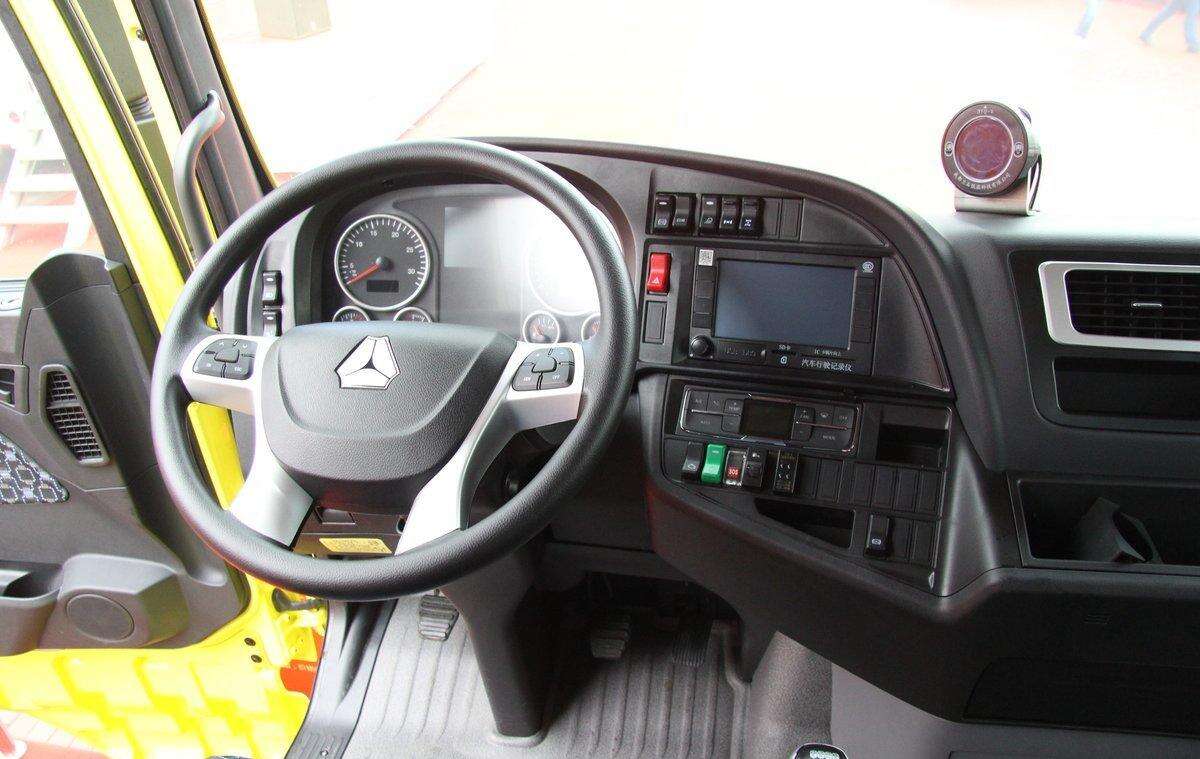

| Cab parameters | |||
| Cab: | High Top | Number of passengers allowed: | 3 people |
| Number of Seat Rows: | Half row | ||

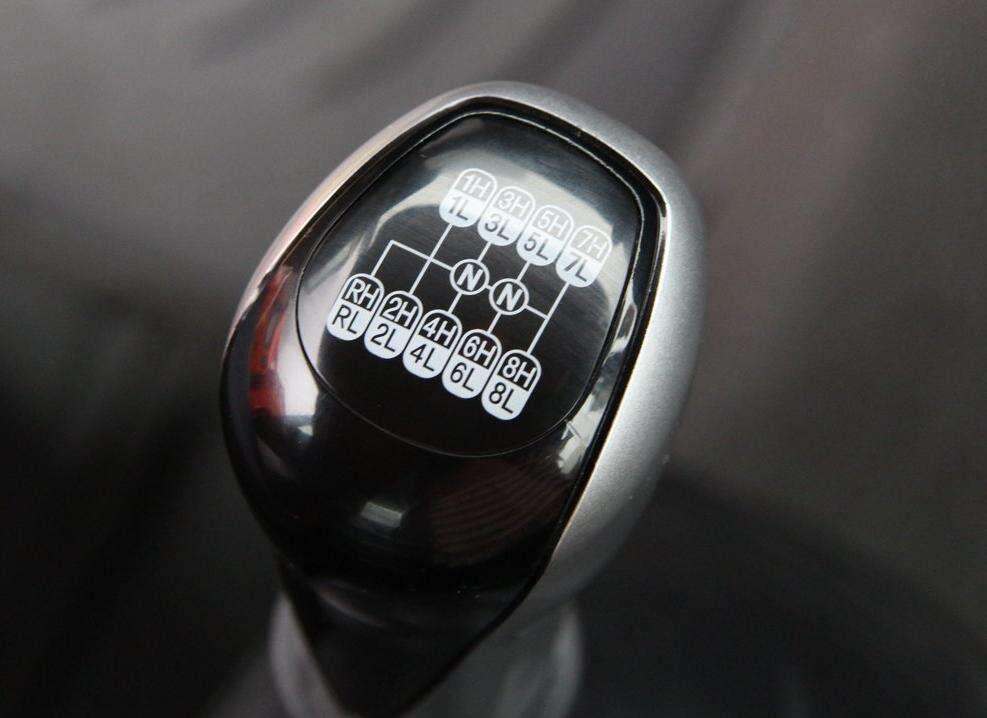

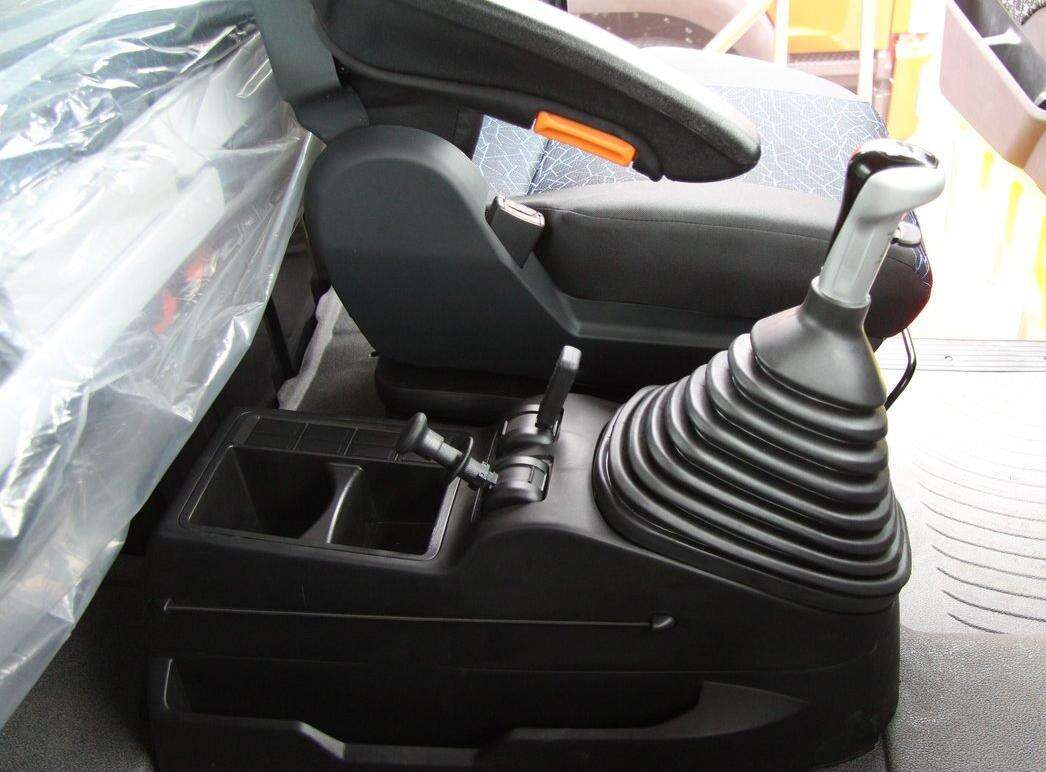

| Gearbox parameters | |||
| Gearbox Model: | Sinotruk HW25712XSTCL | Gearbox brand: | Sinotruk |
| Shifting method: | Manual | Forward gears: | 12 gears |
| Reverse gear number: | 2 | ||

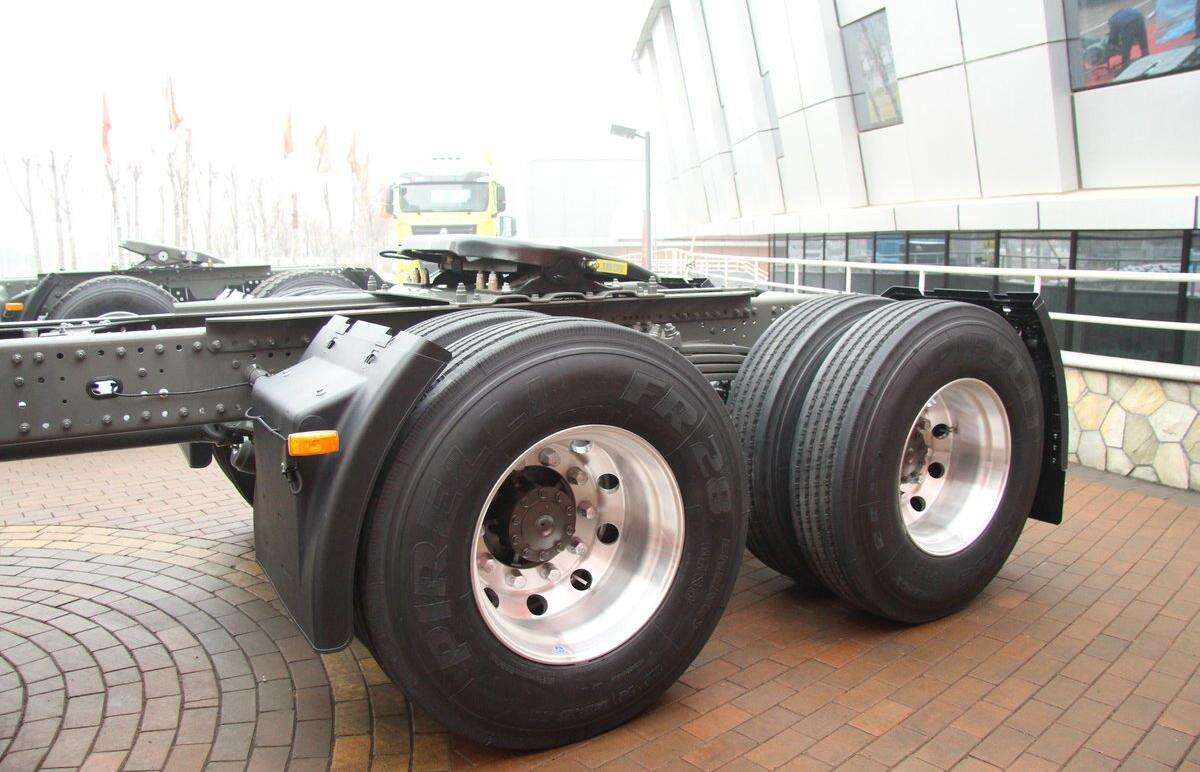

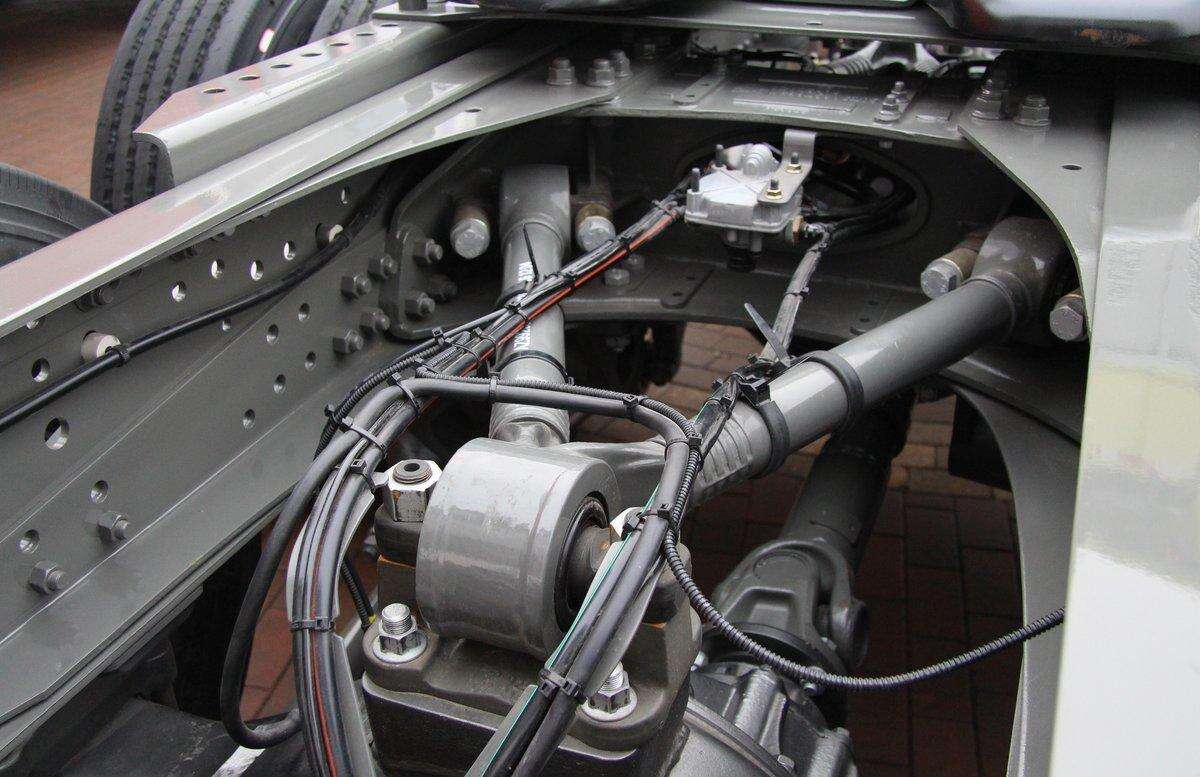

| Chassis parameters | |||
| Permissible load on front axle: | 7000kg | Permissible load on rear axle: | 18000(two-axle group)kg |
| Number of springs: | 2/-/- | ||
| tire | |||
| Number of tires: | 10 | Tire specifications: | 12R22.5 |
