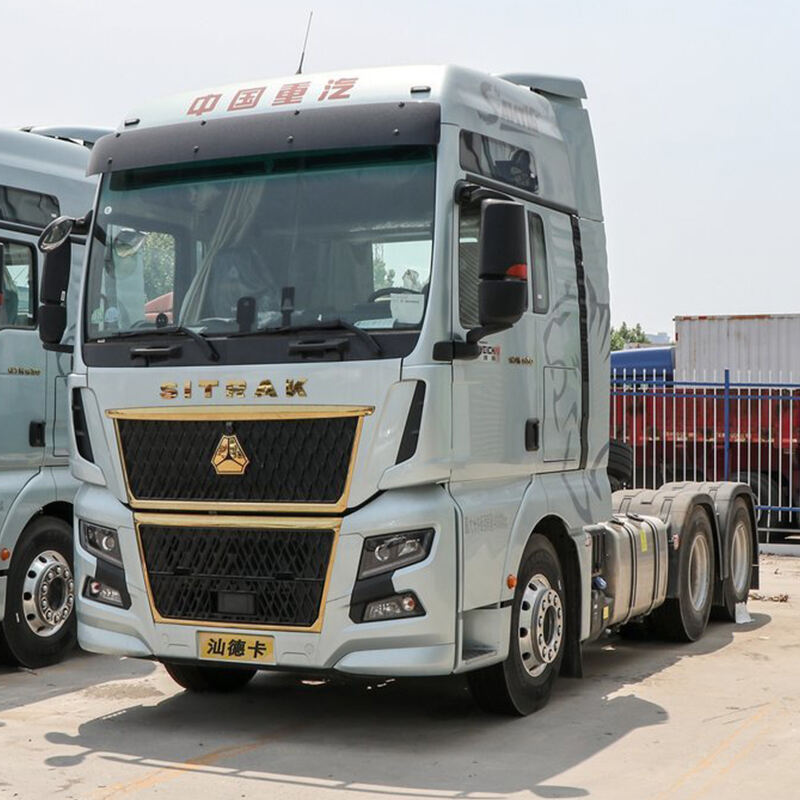

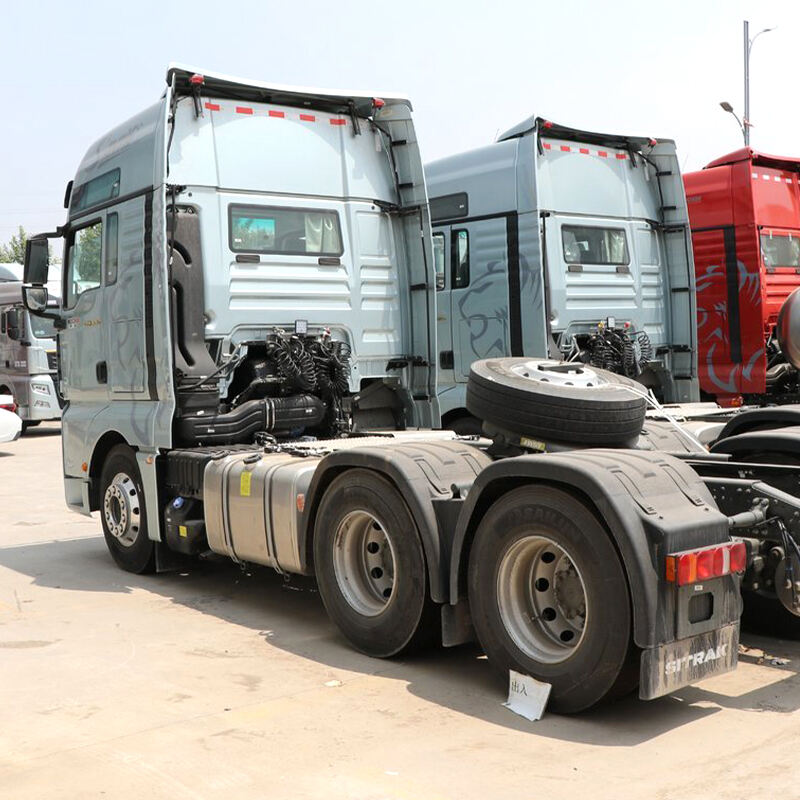

| Basic Information | |||
| Driving license: | A2 | Announcement Model: | ZZ4256Y324HF1B |
| Drive type: | 6X4 | Wheelbase: | 3400+1400mm |
| engine: | Weichai WP14T630E62 | Gearbox: | Sinotruk HW27716XAL |
| Rear axle ratio: | 2.71 | Body length: | 7.17 m |
| Body width: | 2.55 m | Ride height: | 3.96 m |
| Front track: | 2022mm | Rear track: | 1830/1830mm |
| Vehicle weight: | 8.8 tons | Total mass: | 25 tons |
| Total traction mass: | 40 tons | Maximum speed: | 89km/h |
| Origin: | Zhangqiu, Shandong | Tonnage level: | Heavy Truck |
| Version: | Luxury Edition | Fuel Type: | diesel fuel |
| Engine parameters | |||
| Engine Model: | Weichai WP14T630E62 | Engine Brand: | Weichai |
| Number of cylinders: | 6 cylinders | Fuel Type: | diesel fuel |
| Cylinder arrangement: | In-line | Displacement: | 13.5L |
| Emission standards: | National VI | Maximum horsepower: | 630 hp |
| Maximum output power: | 463kW | Maximum Torque: | 2750N m |
| Maximum torque speed: | 900-1400rpm | Rated speed: | 1800rpm |

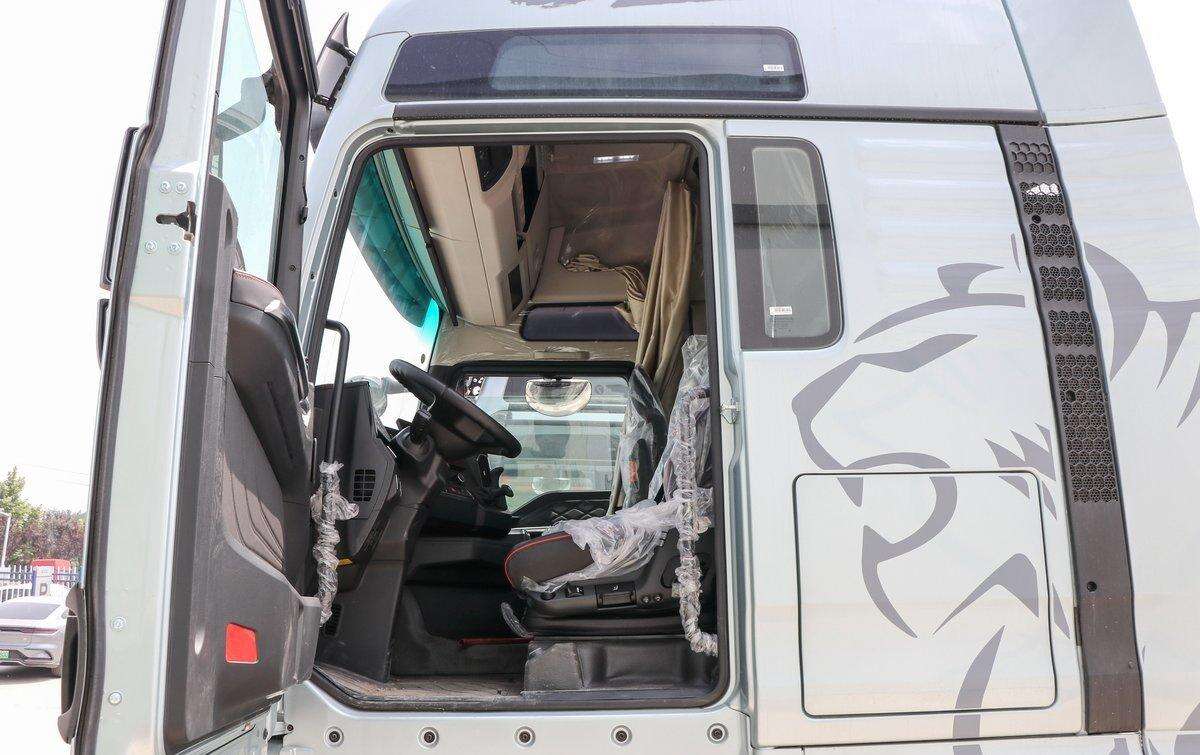

| Cab parameters | |||
| Cab: | High ceiling and flat floor | Number of passengers allowed: | 2 people |
| Number of Seat Rows: | Half row | Driver's seat type: | Airbag shock absorbing seat |
| Skylight: | Electric sunroof | ||
| Gearbox parameters | |||
| Gearbox Model: | Sinotruk HW27716XAL | Gearbox brand: | Sinotruk |
| Shifting method: | AMT | Forward gears: | 16 levels |
| Reverse gear number: | 2 | ||
| tank | |||
| Fuel tank capacity: | 550+550L | ||
| Chassis parameters | |||

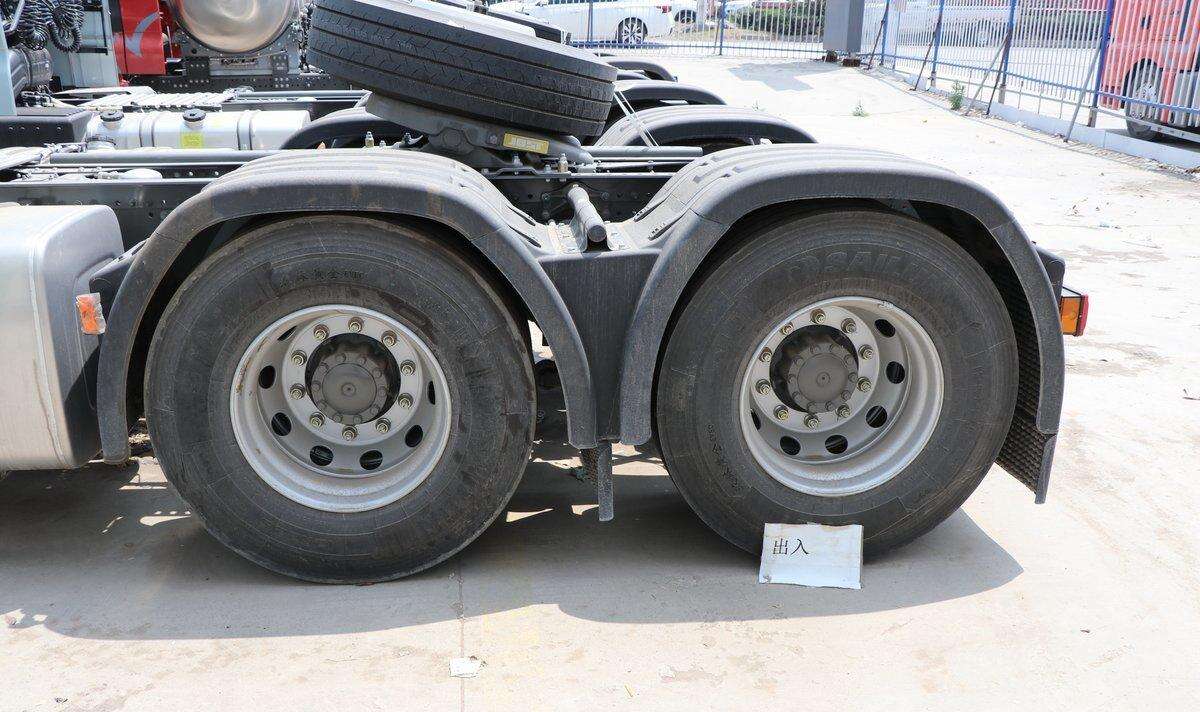

| Front axle description: | 7.1T front axle | Rear Axle Description: | 12T double rear axle |
| Permissible load on front axle: | 7000kg | Permissible load on rear axle: | 18000(two-axle group)kg |
| Speedatio: | 2.71 | Number of springs: | 2/3,2/2 |
| Aluminum Alloy Wheels: | font> | ||

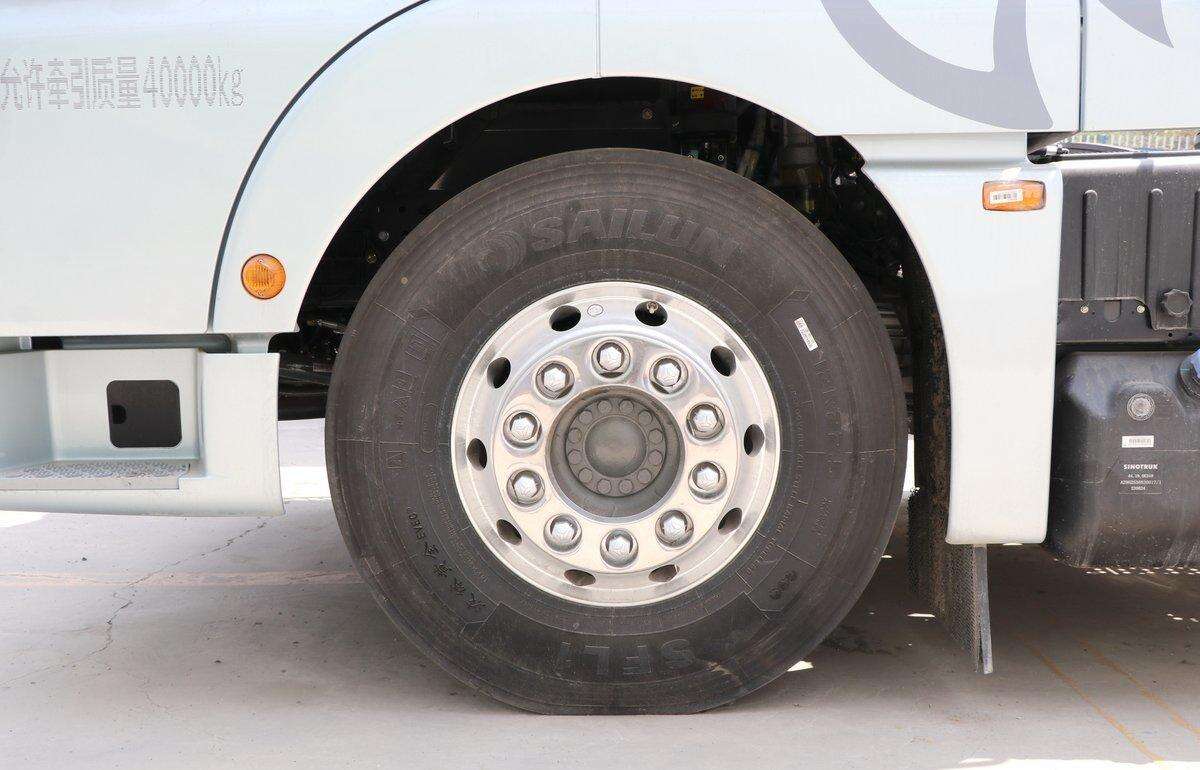

| tire | |||
| Number of tires: | 10 | Tire specifications: | 12R22.5 18PR |
