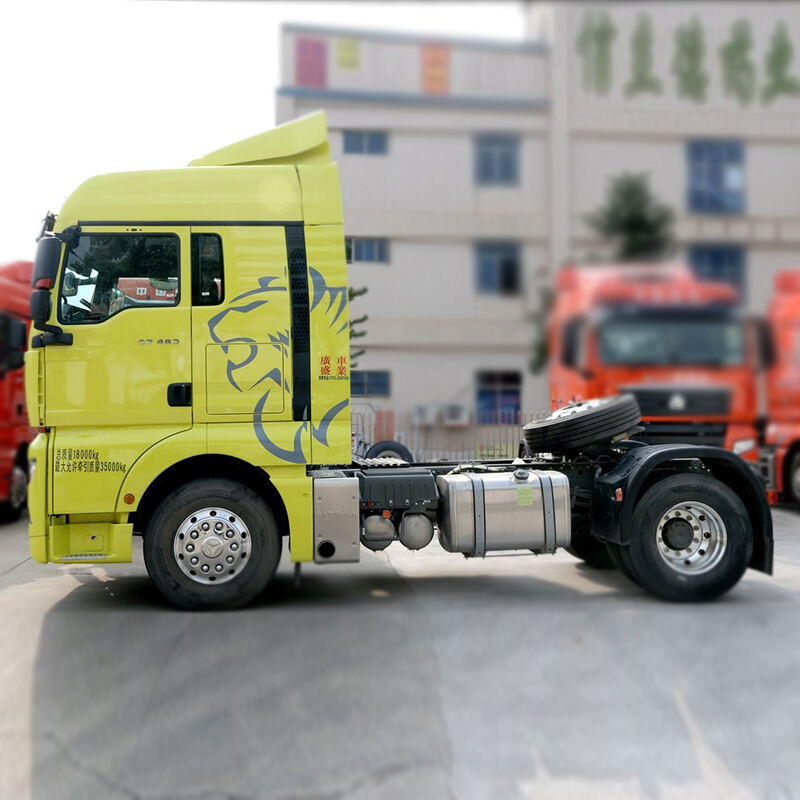

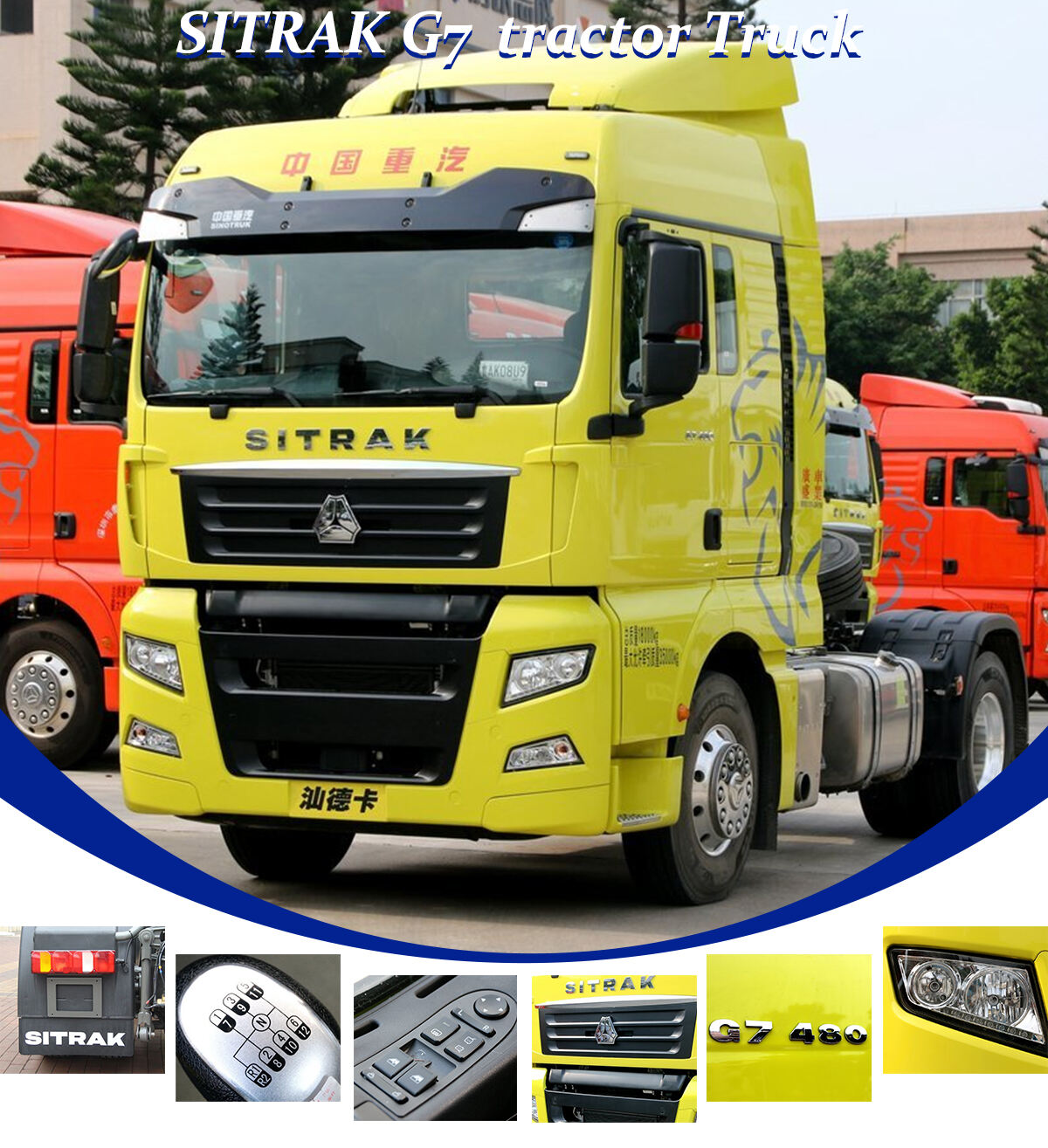

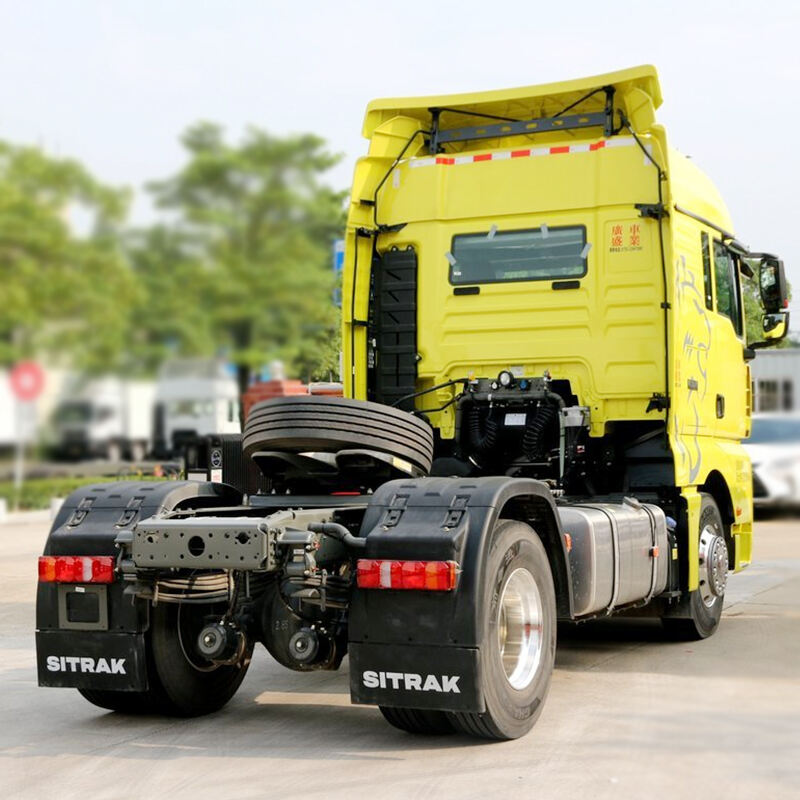

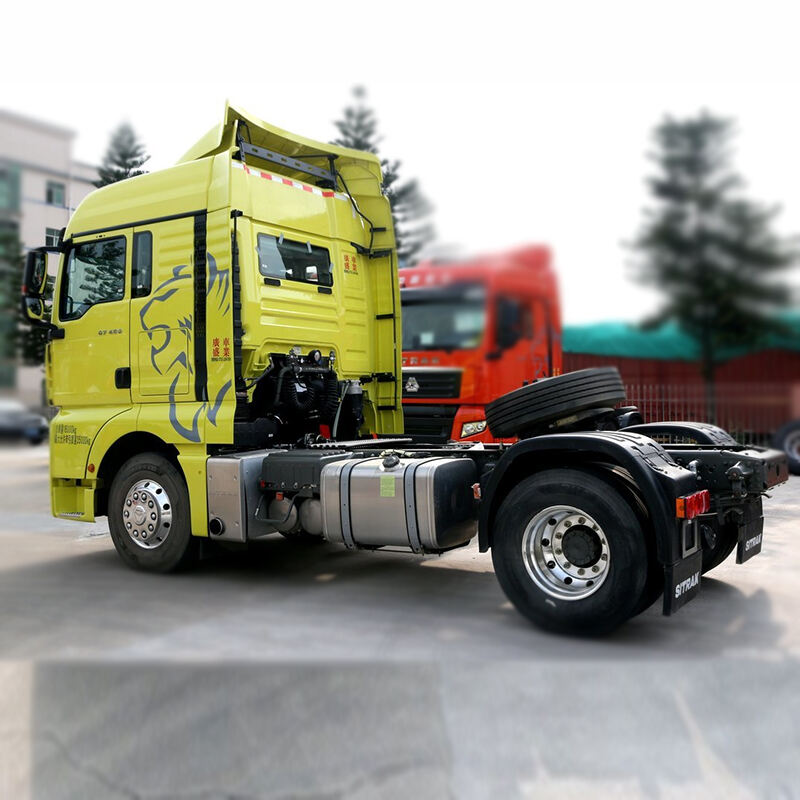

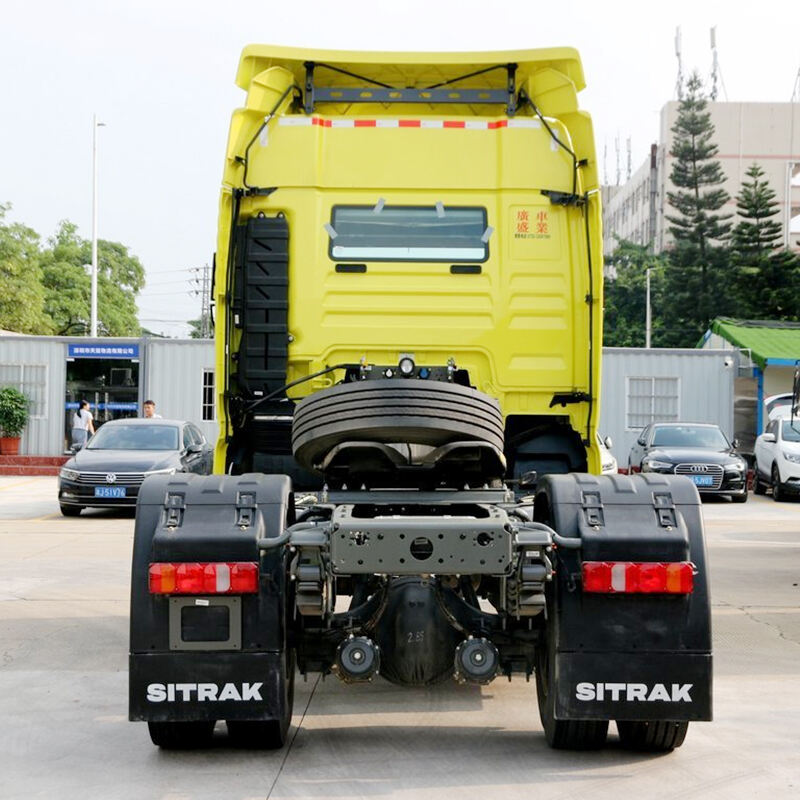

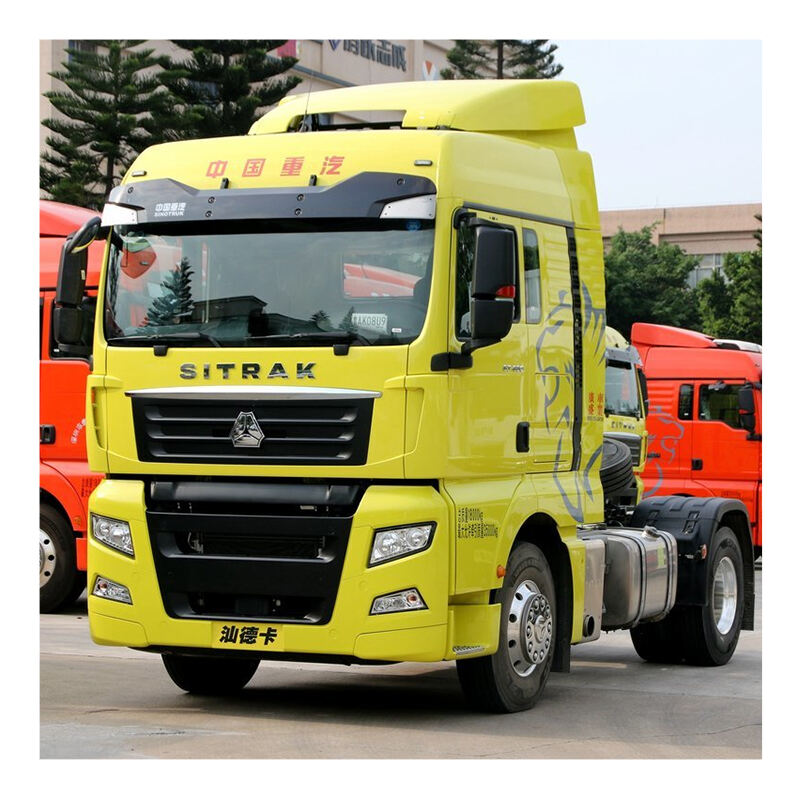

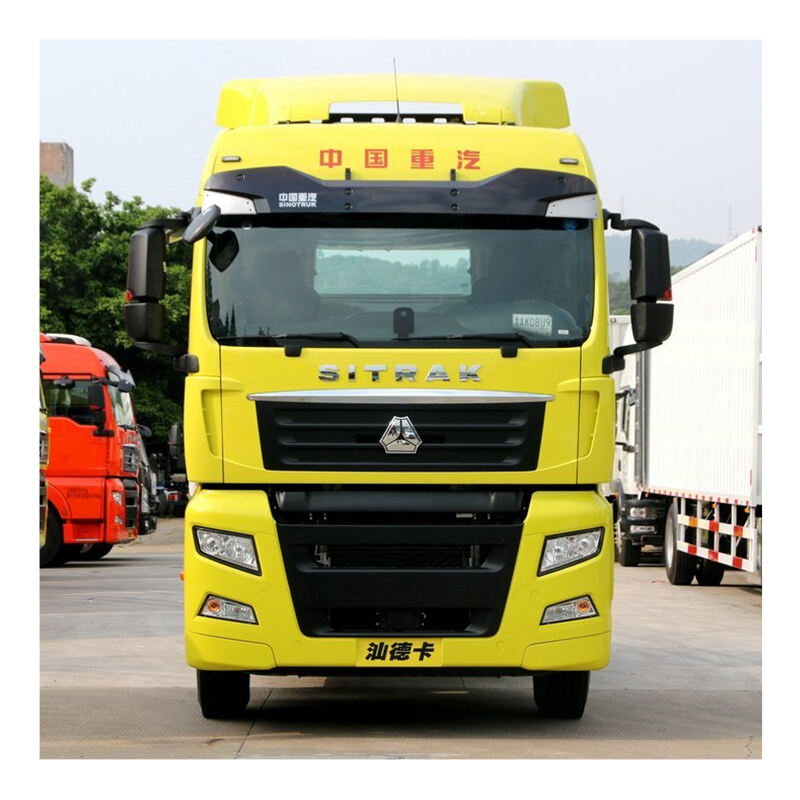

SITRAK G7 480 Tractor Truck


Basic Information
Driving license:	A2	Announcement Model:	ZZ4186V361HE1B
Drive type:	4X2	Wheelbase:	3600mm
engine:	Sinotruk MC13.48-50	Gearbox:	Sinotruk HW25712XTSL
Rear axle ratio:	2.85	Body length:	6.52 m
Body width:	2.496 m	Ride height:	3.98 m
Front track:	2022mm	Rear track:	1816mm
Vehicle weight:	6.8 tons	Total mass:	18 tons
Total traction mass:	35 tons	Maximum speed:	101km/h
Market Segments:	Express delivery	Origin:	Zhangqiu, Shandong
Tonnage level:	Heavy Truck	Fuel Type:	diesel fuel
Engine parameters
Engine Model:	Sinotruk MC13.48-50	Engine Brand:	Sinotruk
Number of cylinders:	6 cylinders	Fuel Type:	diesel fuel
Cylinder arrangement:	In-line	Displacement:	12.419L
Emission standards:	National Five	Maximum horsepower:	480 hp
Maximum output power:	353kW	Maximum Torque:	2300N m
Maximum torque speed:	1050-1400rpm	Rated speed:	1900rpm

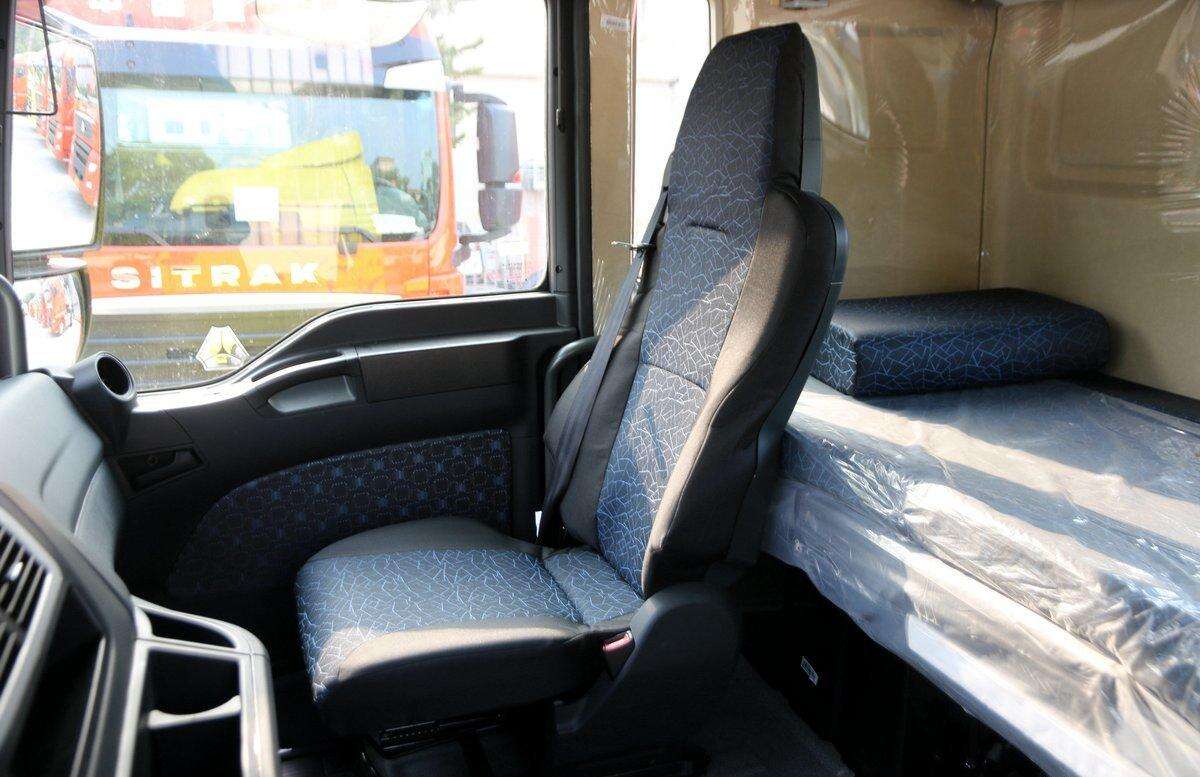

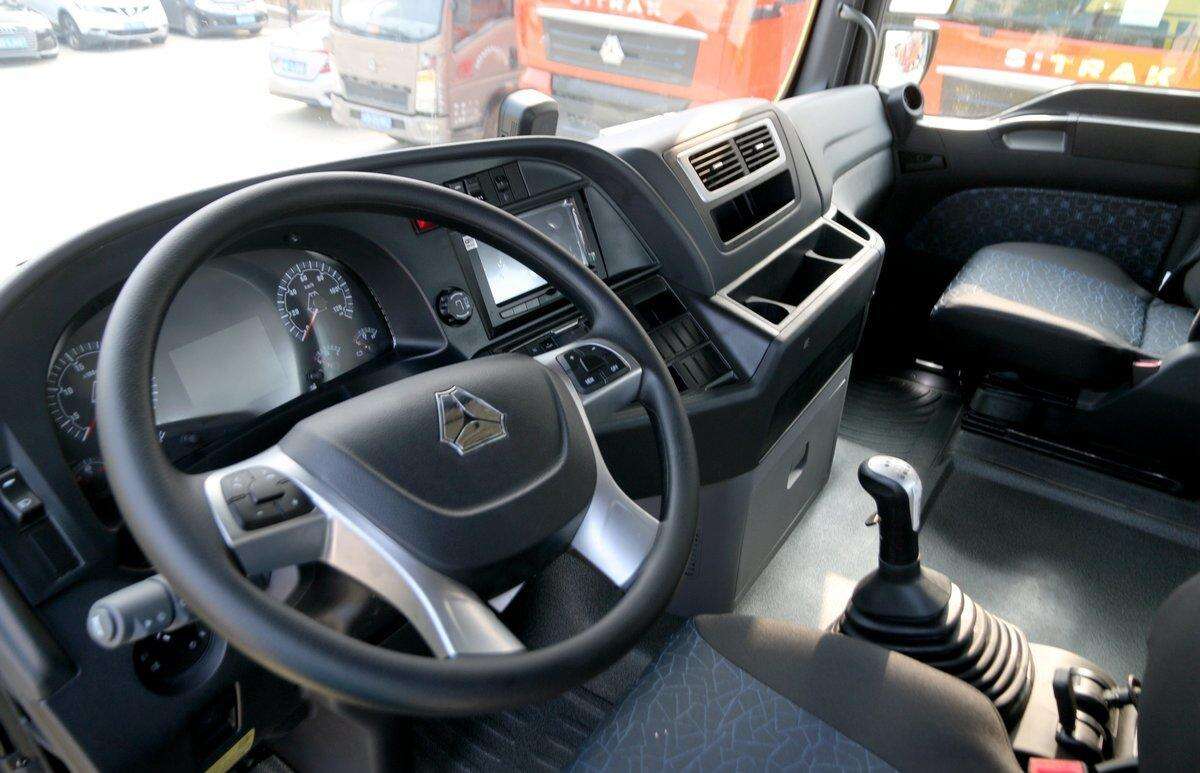

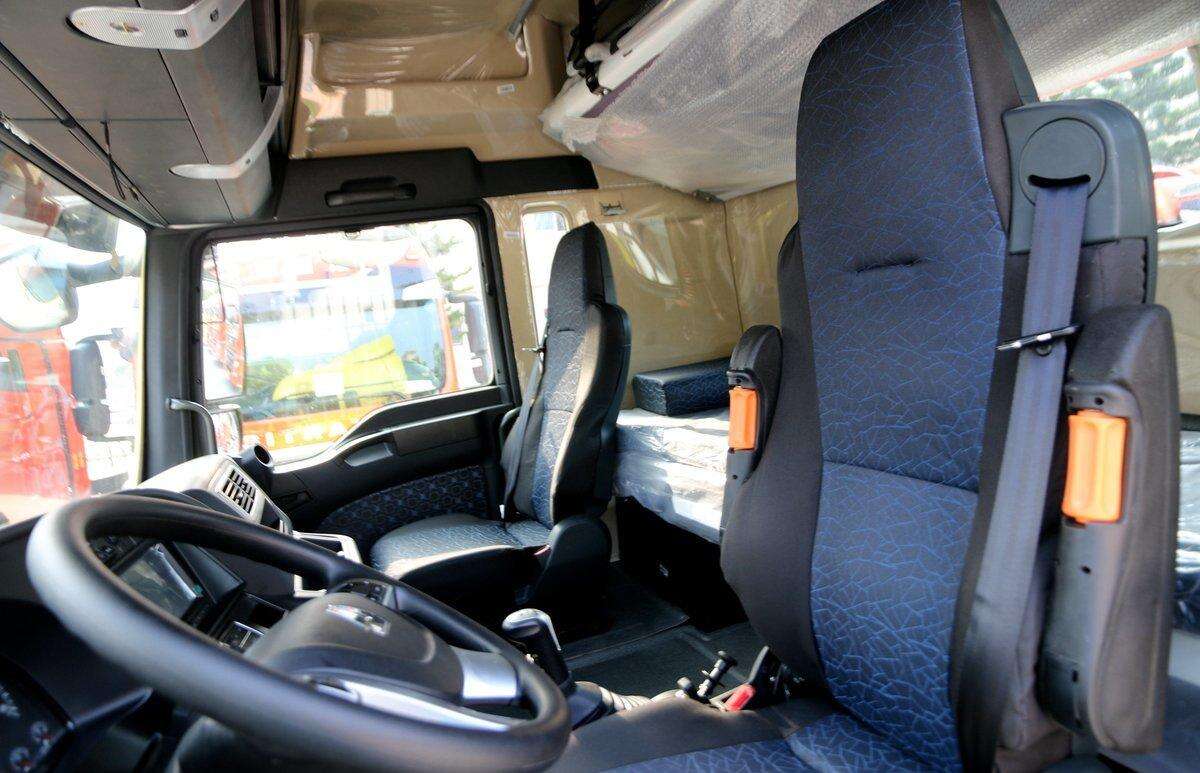

Cab parameters
Cab:	High Top	Lower berth width:	800mm
Number of passengers allowed:	3 people	Number of Seat Rows:	Half row

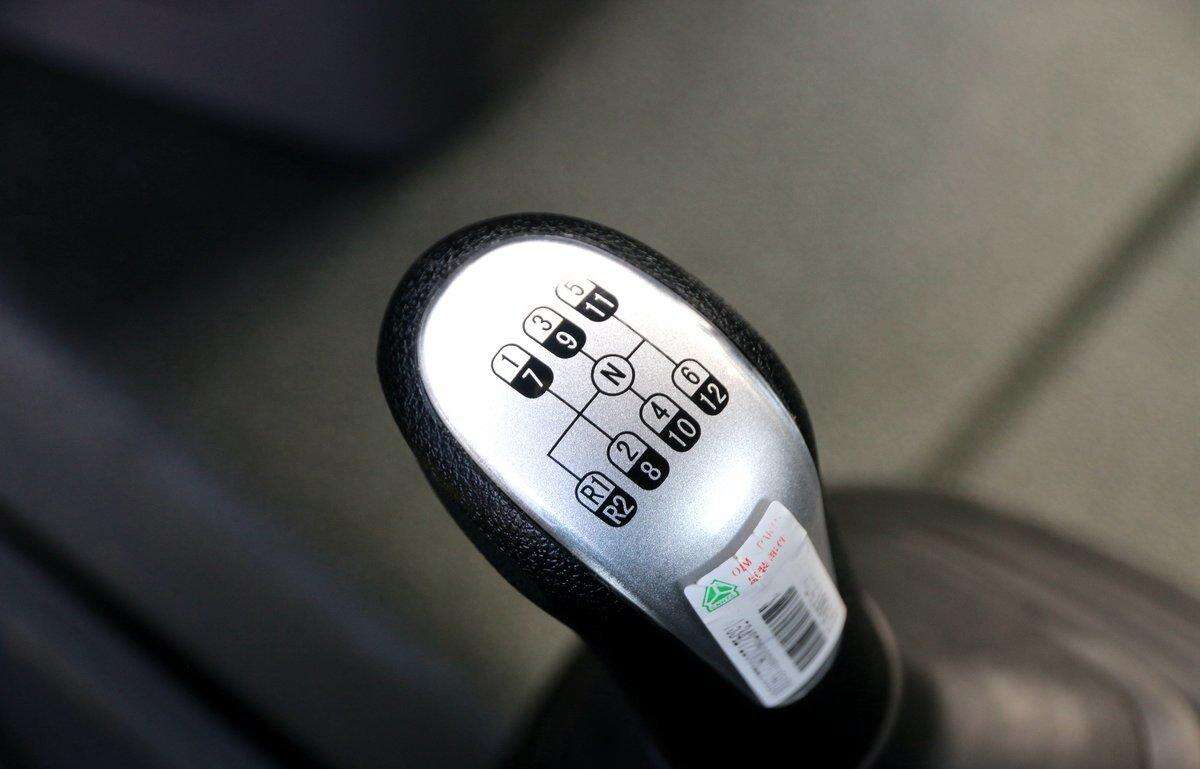

Gearbox parameters
Gearbox Model:	Sinotruk HW25712XTSL	Gearbox brand:	Sinotruk
Shifting method:	Manual	Forward gears:	12 gears
Reverse gear number:	2
tank
Fuel tank/gas tank material:	Aluminum Alloy	Fuel tank capacity:	600L
Chassis parameters
Permissible load on front axle:	6500kg	Permissible load on rear axle:	11500kg
Speed atio:	2.85	Number of springs:	3/5,3/-
Saddle:	50JOST
tire
Number of tires:	6	Tire specifications:	12R22.5
