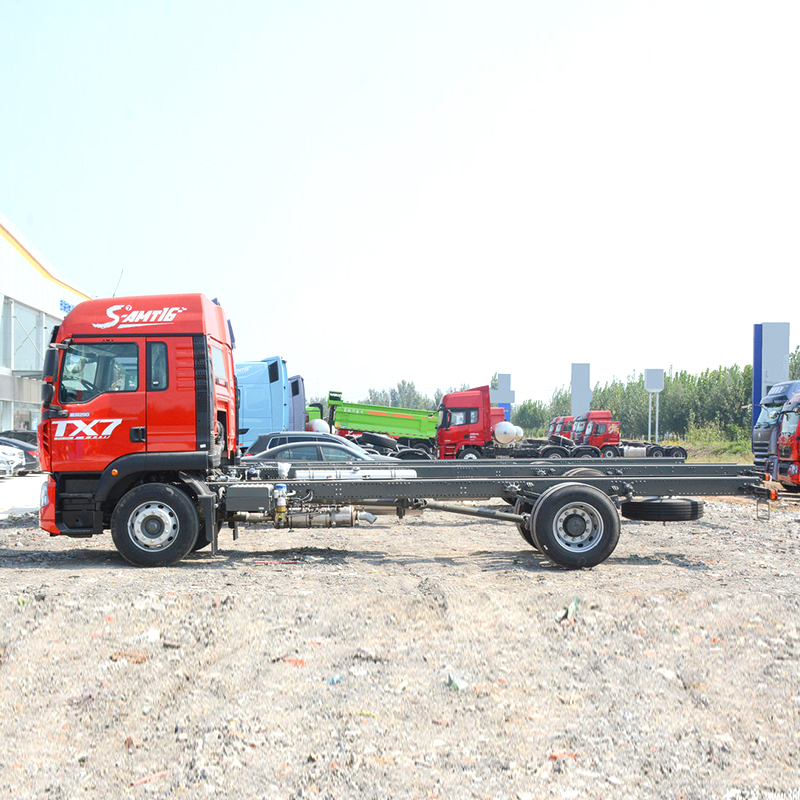

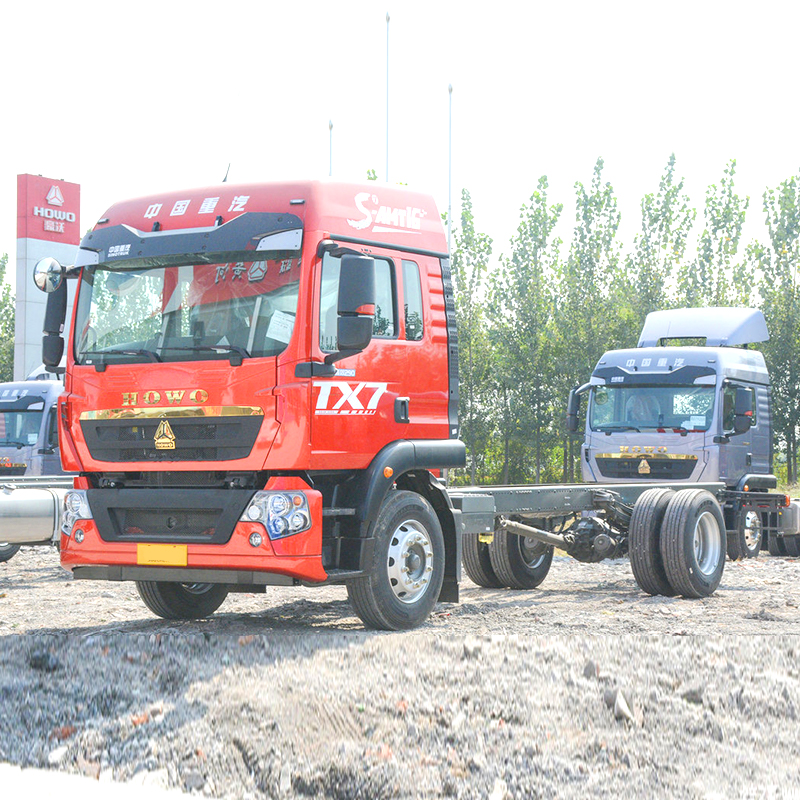

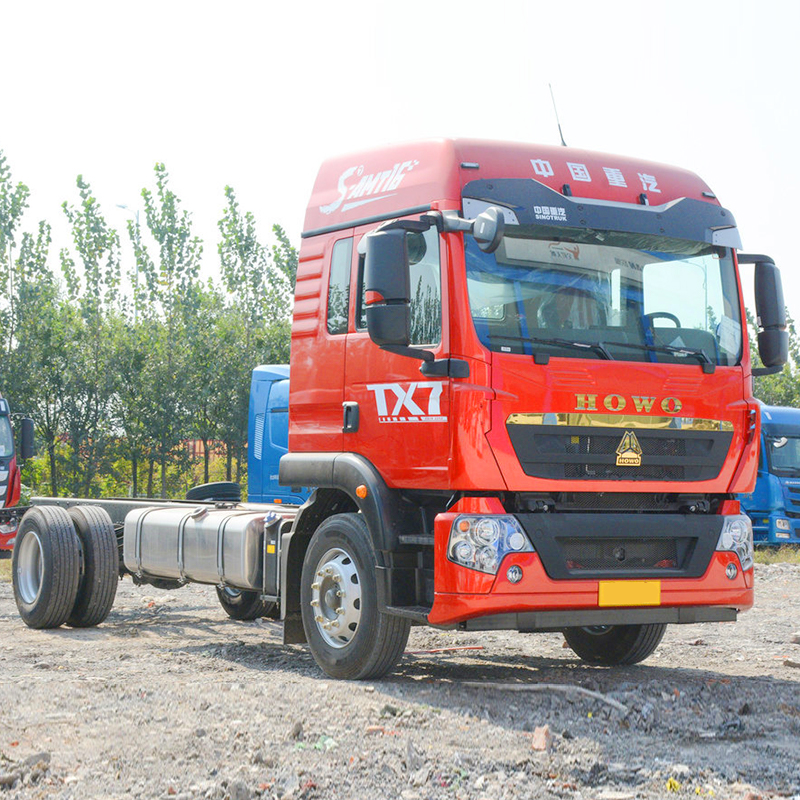

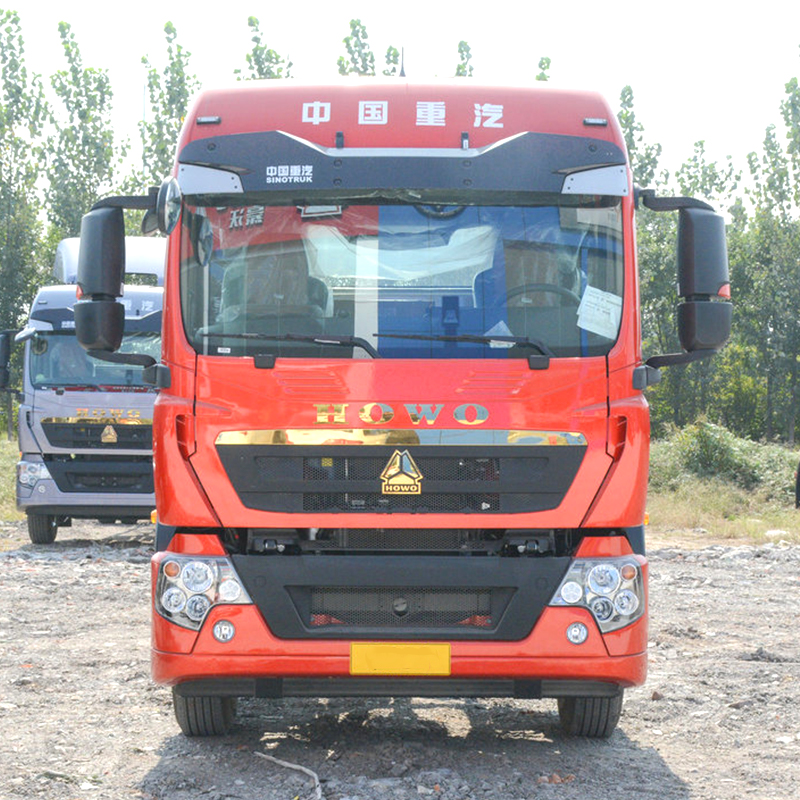

Sinotruk HOWO TX7 290HP 4X2 6.2m AMT automatic gearbox flatbed Tractor Truck | |||
Basic Information | |||
Announcement Model: |
ZZ1187K501GF1 |
type: |
Truck |
Drive type: |
4X2 |
Wheelbase: |
4700mm |
Box length level: |
6.2 m |
engine: |
Sinotruk MC07.29-61 |
Gearbox: |
16-speed AMT gearbox |
Rear axle ratio: |
4.11 |
Body length: |
8.45 m |
Body width: |
2.55 m |
Ride height: |
3.35 m |
Front track: |
2035mm |
Rear track: |
1860mm |
Vehicle weight: |
7.3 tons |
Rated load: |
10.57 tons |
Total mass: |
18 tons |
Maximum speed: |
89KM/h |
Origin: |
Jinan, Shandong |
Tonnage level: |
Heavy trucks |
Driving license: |
A1,A2,B2 |
Approach Angle: |
19 degrees |
Departure angle: |
17 degrees |
Front overhang/rear overhang: |
1.43/2.32m |
Fuel Type: |
diesel fuel |
Engine parameters | |||
Engine Model: |
Sinotruk MC07.29-61 |
Engine Brand: |
Sinotruk |
Engine common name: |
Sinotruk 6 cylinder |
Number of cylinders: |
6 cylinders |
Fuel Type: |
diesel fuel |
Cylinder arrangement: |
In-line |
Displacement: |
6.87L |
Emission standards: |
National VI |
Maximum output power: |
213kw |
Maximum horsepower: |
290 hp |
Maximum Torque: |
1200Nm |
Maximum torque speed: |
1200-1800RPM |
Rated speed: |
2200RPM |
||
Cargo box parameters | |||
Cargo box form: |
Fence type |
Length of cargo box: |
6.2 m |
Cargo box width: |
2.47 m |
Cargo box height: |
0.55m |

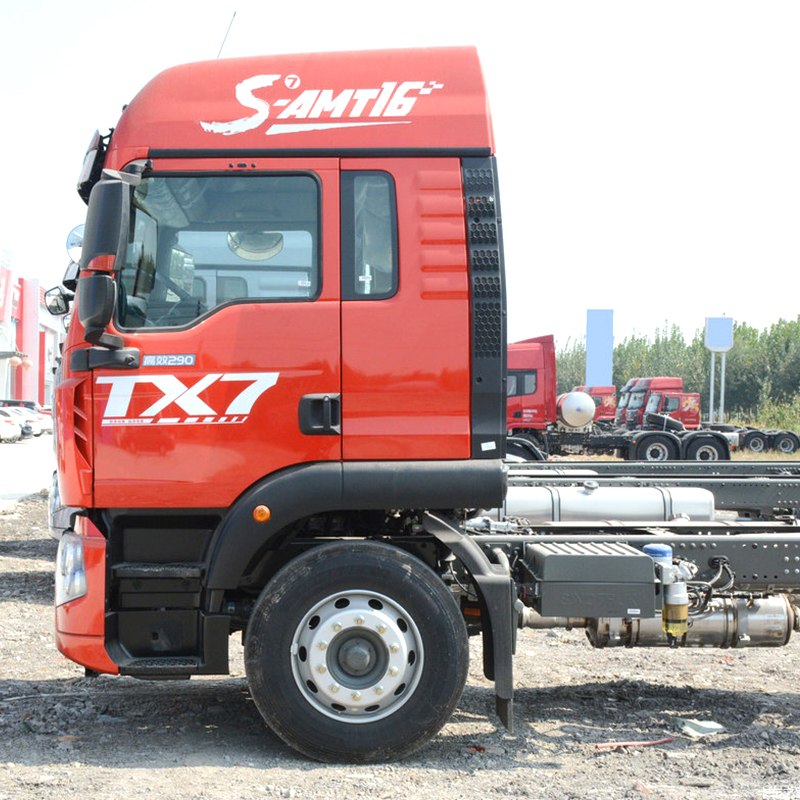

Cab parameters | |||
Cab width: |
2280mm |
Number of passengers allowed: |
2 people |
Number of Seat Rows: |
Half row |
||
Gearbox parameters | |||
Gearbox Model: |
16-speed AMT gearbox |
Shifting method: |
AMT |
Forward gears: |
16 levels |
Reverse gear number: |
4 |

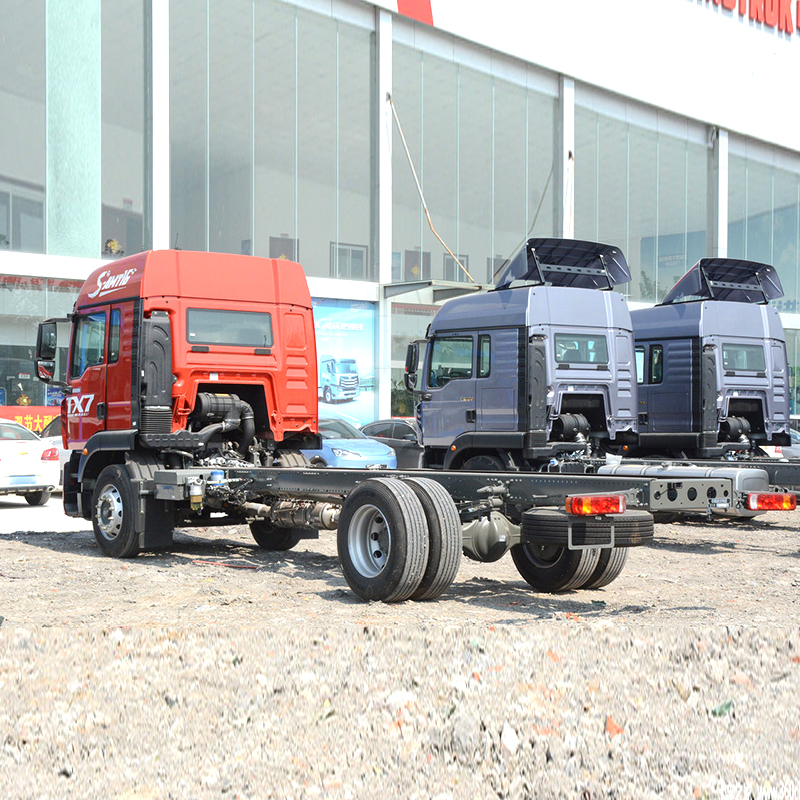

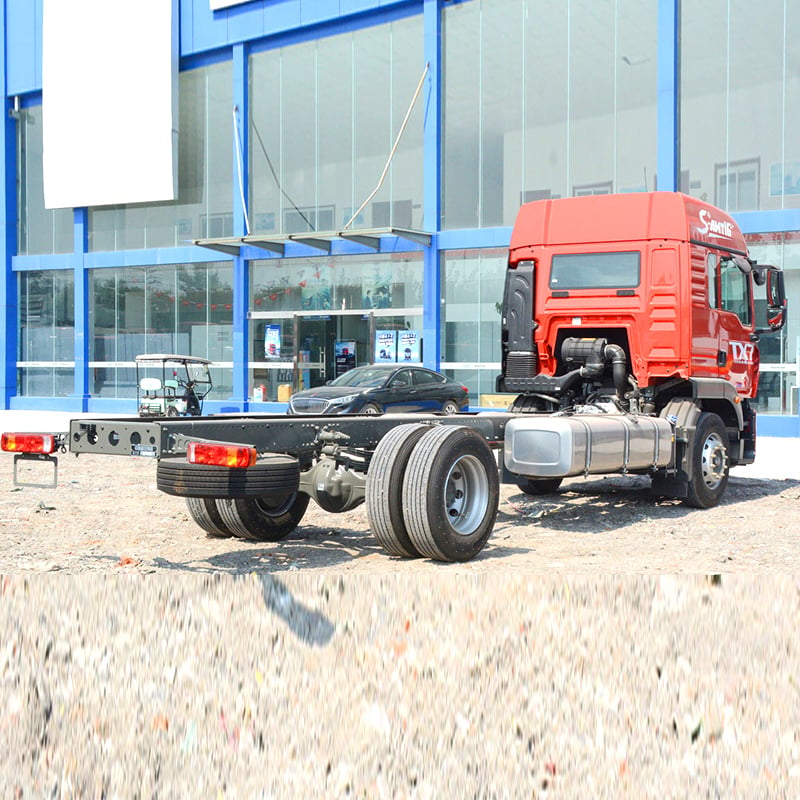

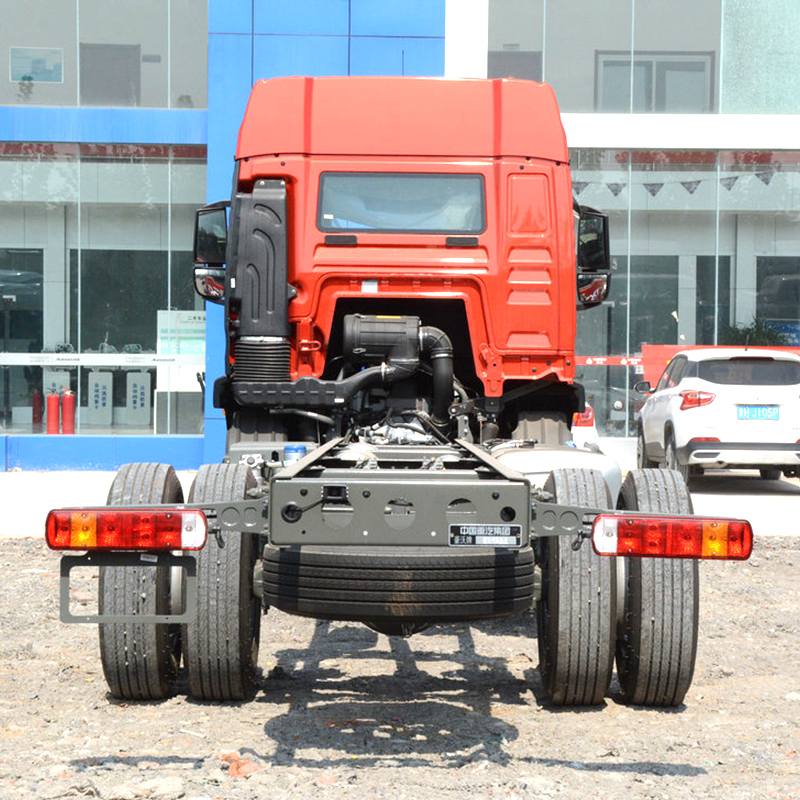

Chassis parameters | |||
Permissible load on front axle: |
6500KG |
Permissible load on rear axle: |
11500KG |
Speed atio: |
4.11 |
Number of springs: |
7/7+6,7/7+3 |
tire | |||
Tire specifications: |
275/80R22.5 18PR |
Number of tires: |
6 |
Control configuration | |||
ABS anti-lock braking system: |
/font |
||
Internal Configuration | |||

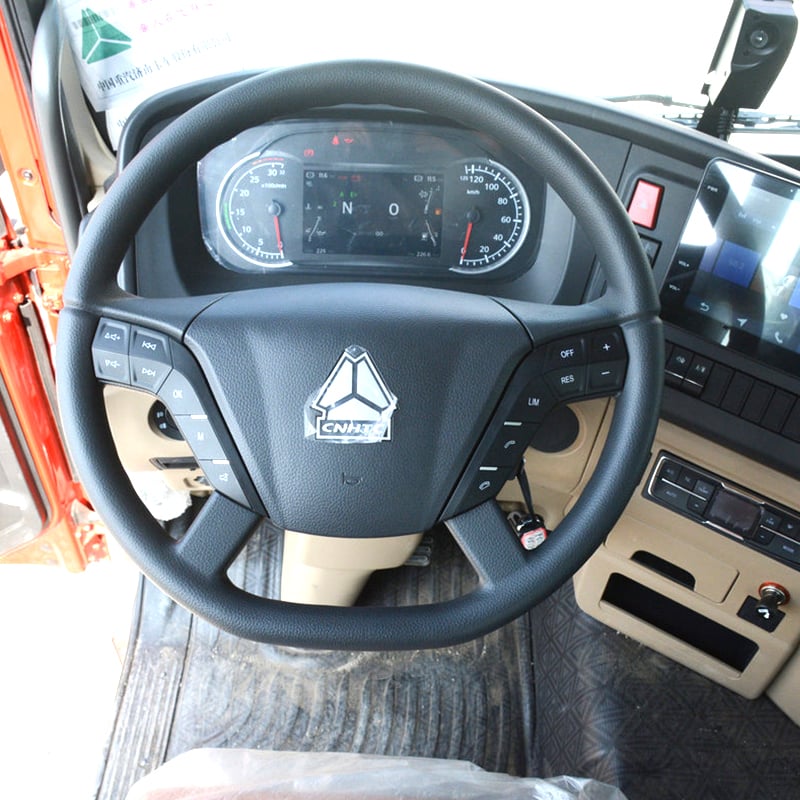

Multifunction steering wheel: |
/font |
Air conditioning adjustment form: |
automatic |
Power windows: |
/font |
Electric rearview mirror: |
/font |
Electric heating of rearview mirror: |
/font |
Electronic central locking: |
/font |
Multimedia Configuration | |||
Bluetooth/Car Phone: |
/font |
radio: |
/font |
Intelligent configuration | |||
Cruise control: |
/font |
||
