HOWO T7H 7.3m Dump Truck

Introduction

Introduction

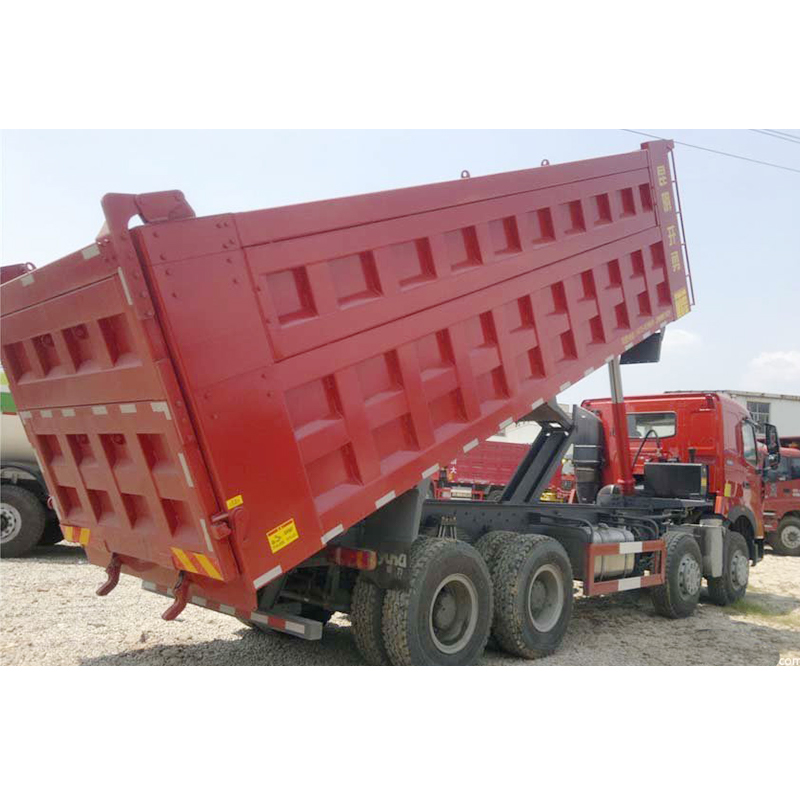

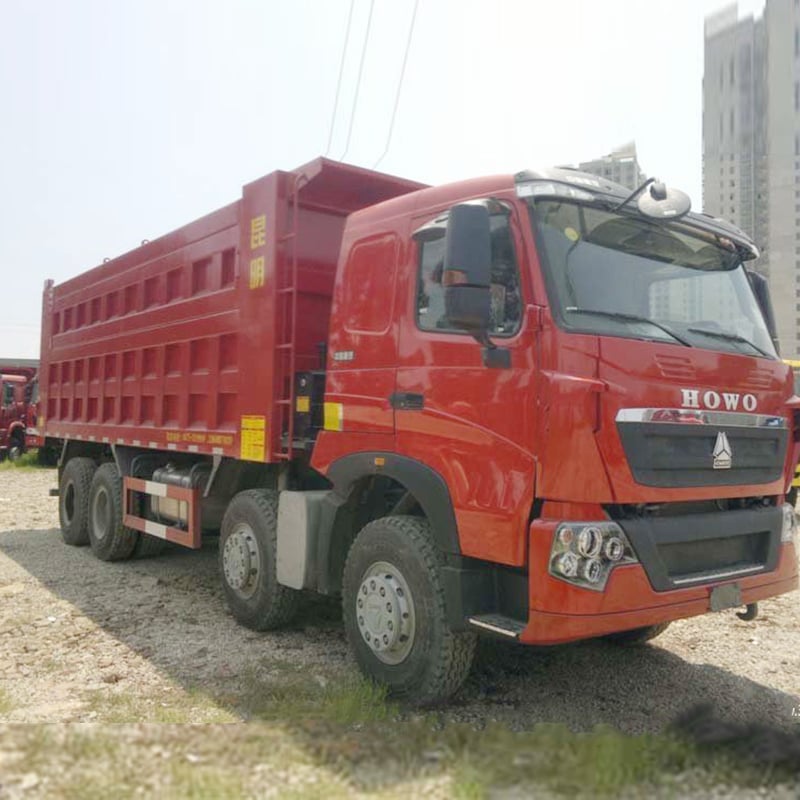

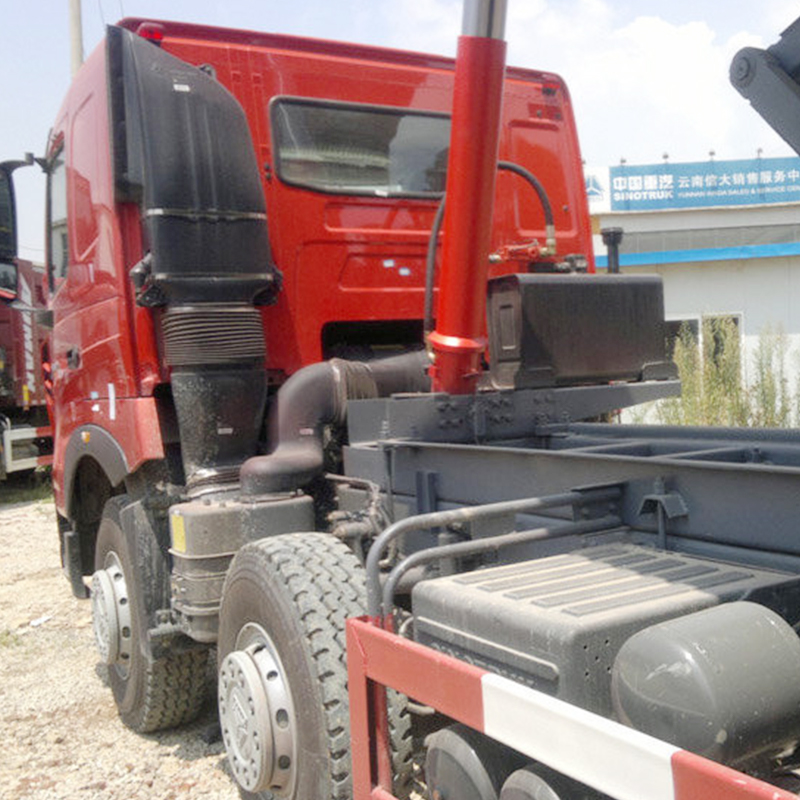

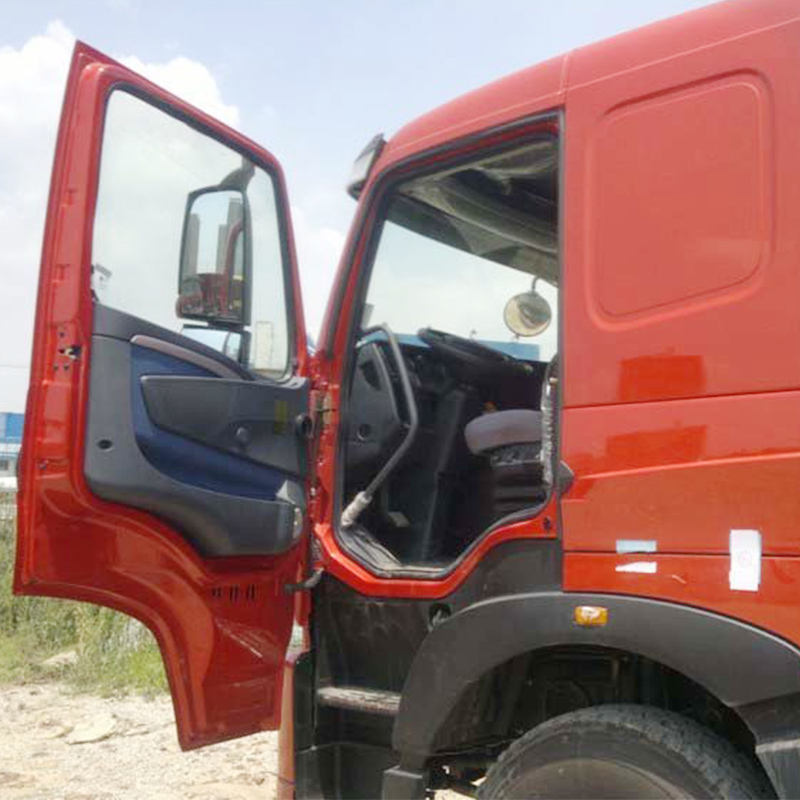

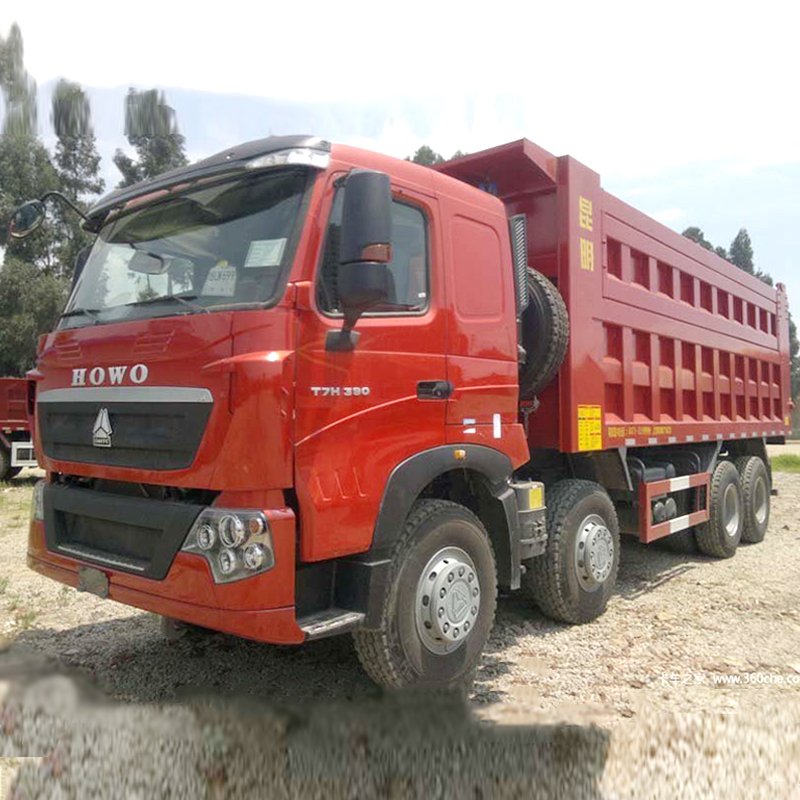

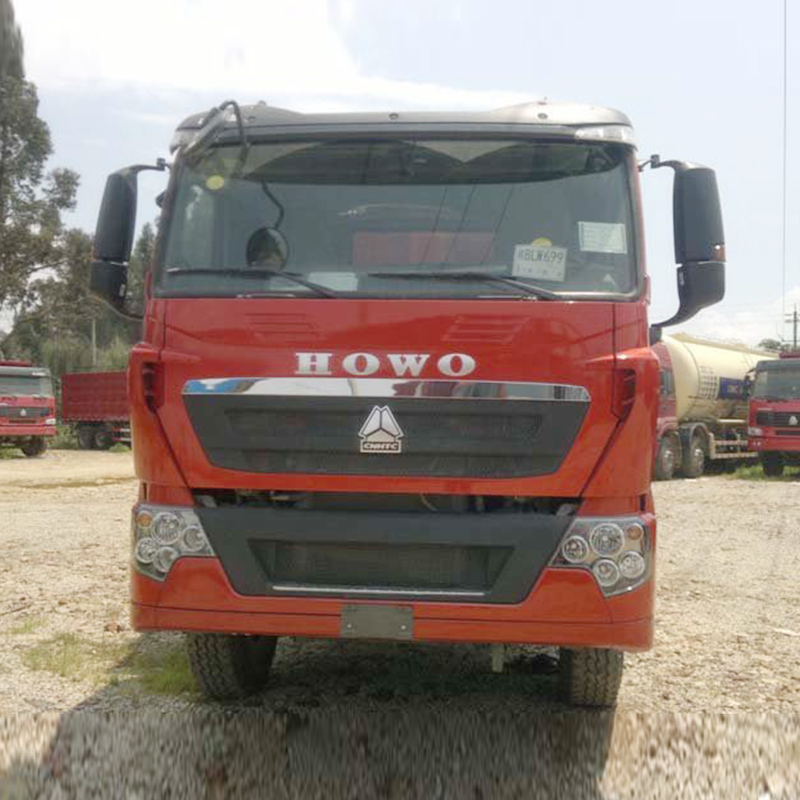

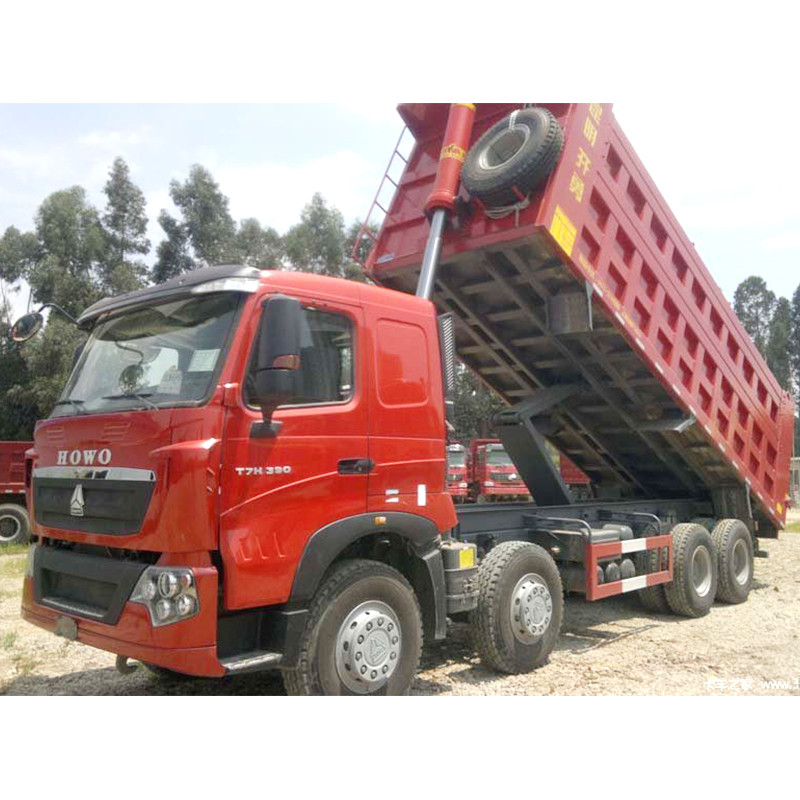

主图白边-01.jpg 主图白边-05(2d0a88c325).jpg 主图白边-04(3c59a723cc).jpg 主图白边-02(3cf69b094f).jpg 主图白边-03(0563c188c3).jpg 主图白边-06(1124b26f80).jpg 主图白边-07(5e95aa2dc5).jpg

Basic Information
Driving license:	A1,A2,B2	Announcement Model:	ZZ3317V356HC1
Drive type:	8X4	Wheelbase:	1950+3525+1350mm
engine:	Sinotruk MC11.39-30	Gearbox:	Sinotruk HW19712
Rear axle ratio:	5.45	Body length:	10.41 m
Body width:	2.496 m	Ride height:	3.49 m
Front track:	2022/2022,2041/2041mm	Rear track:	1830/1830mm
Vehicle weight:	15.2 tons	Rated load:	15.67 tons
Total mass:	31 tons	Tonnage level:	Heavy Truck
Approach Angle:	20 degrees	Departure angle:	23 degrees
Origin:	Jinan, Shandong	Market Segments:	Urban construction waste, road transportation
Overall speed ratio:	5.45	Fuel Type:	diesel fuel
Engine parameters
Engine Model:	Sinotruk MC11.39-30	Engine Brand:	Sinotruk
Number of cylinders:	6 cylinders	Fuel Type:	diesel fuel
Displacement:	10.518L	Emission standards:	National Three
Maximum horsepower:	390 hp	Maximum output power:	287kW
Maximum Torque:	1900N路m	Maximum torque speed:	1000-1400rpm
Rated speed:	1900rpm	Engine Type:	Inline six-cylinder, water-cooled, four-stroke, high-pressure common rail, supercharged intercooler
Cargo box parameters
Length of cargo box:	7.3 m	Cargo box width:	2.3 m
Cargo box height:	1.1m	Cargo box form:	Rear dump type
Gearbox parameters
Gearbox Model:	Sinotruk HW19712	Gearbox brand:	Sinotruk
Forward gears:	12 gears	Reverse gear number:	2
tank
Fuel tank capacity:	300L
Chassis parameters
Rear Axle Description:	HC16	Permissible load on rear axle:	17500kg
Speed atio:	5.45	Number of springs:	11/11/12,
tire
Tire specifications:	12.00R20	Number of tires:	12
