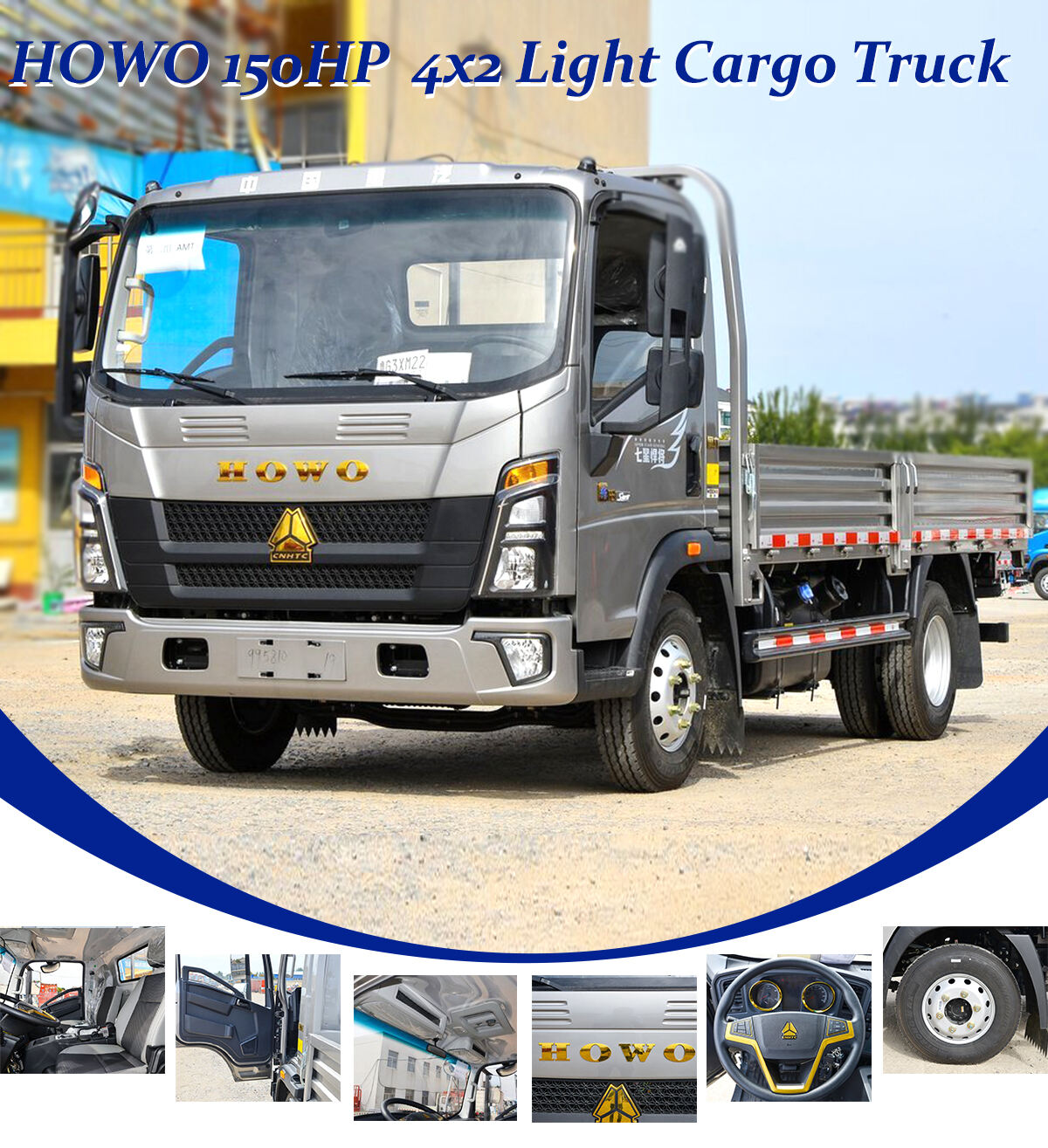

| Basic Information | |||
| Announcement Model: | ZZ1047G3215F144 | type: | Truck |
| Drive type: | 4X2 | Wheelbase: | 3280mm |
| Box length level: | 4.2 m | engine: | Weichai WP2.5NQ150E61 |
| Gearbox: | Sinotruk HW51508ACL | Body length: | 5.99 m |
| Body width: | 2.2 m | Ride height: | 2.5 m |
| Front track: | 1620mm | Rear track: | 1560mm |
| Vehicle weight: | 2.56 tons | Rated load: | 1.8 tons |
| Total mass: | 4.49 tons | Maximum speed: | 95KM/h |
| Origin: | Zhangqiu, Shandong | Tonnage level: | Light Truck |
| Driving license: | A1,A2,B1,B2,C1 | Approach Angle: | 18 degrees |
| Departure angle: | 17 degrees | Front overhang/rear overhang: | 1.16/1.55m |
| Fuel Type: | diesel fuel | ||
| Engine parameters | |||
| Engine Model: | Weichai WP2.5NQ150E61 | Engine Brand: | Weichai |
| Engine common name: | Weichai WP2.5N | Number of cylinders: | 4 cylinders |
| Fuel Type: | diesel fuel | Cylinder arrangement: | In-line |
| Displacement: | 2.49L | Emission standards: | National VI |
| Maximum output power: | 110kw | Maximum horsepower: | 150 HP |
| Engine oil change cycle: | 50,000 km | ||
| Cargo box parameters | |||

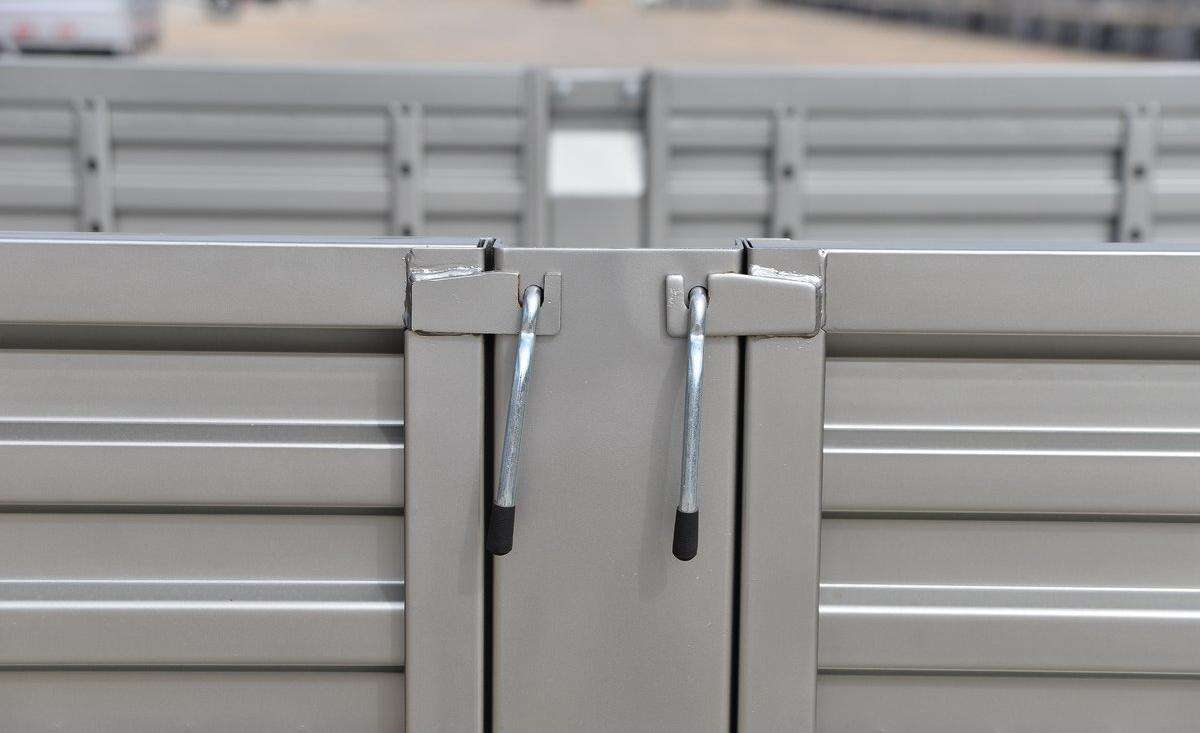

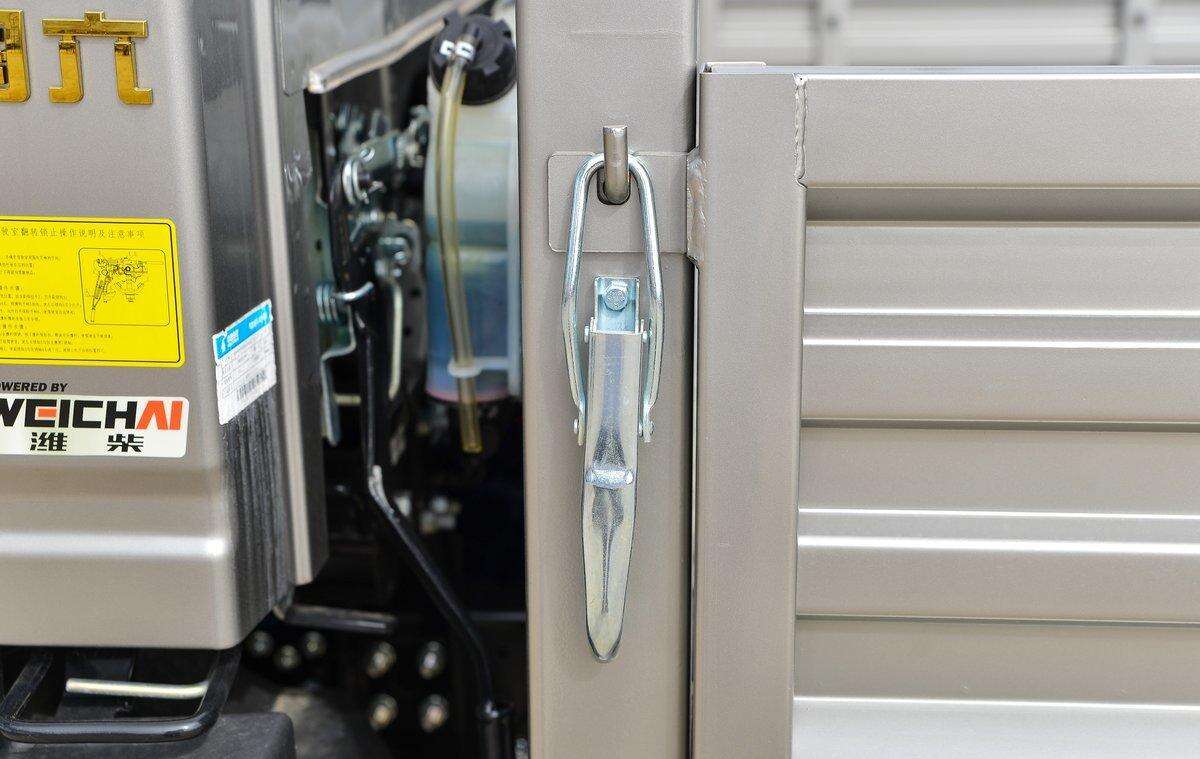

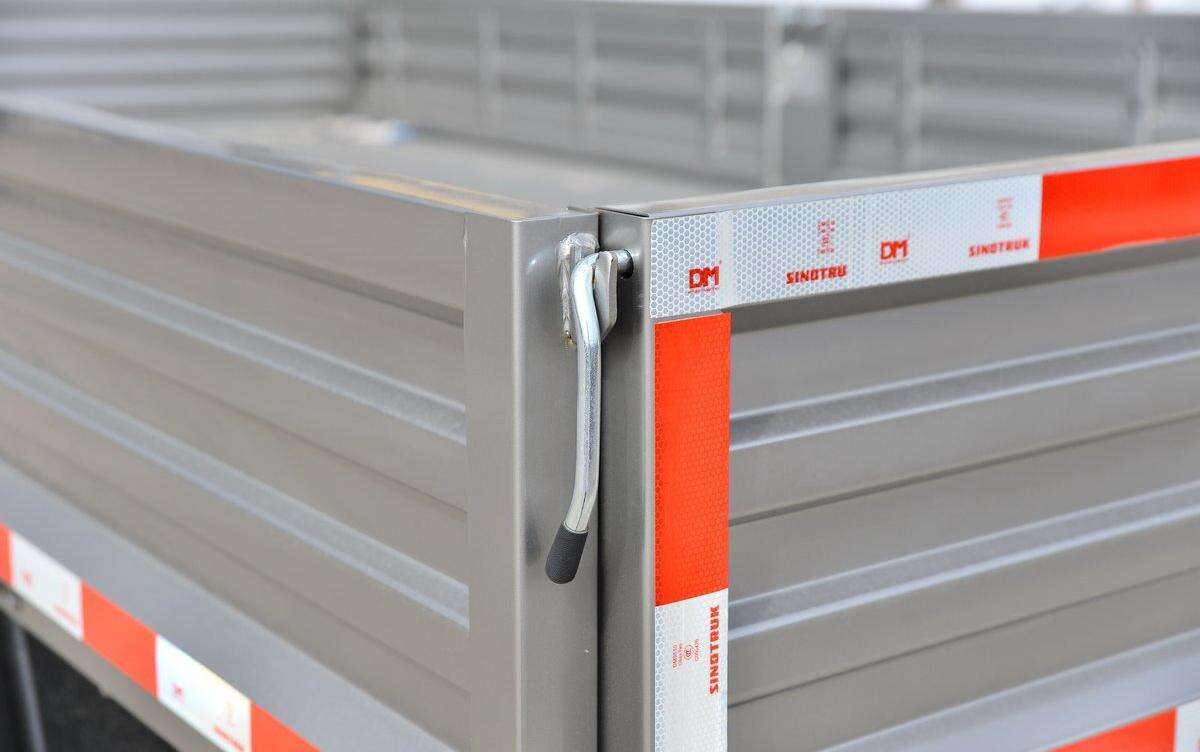

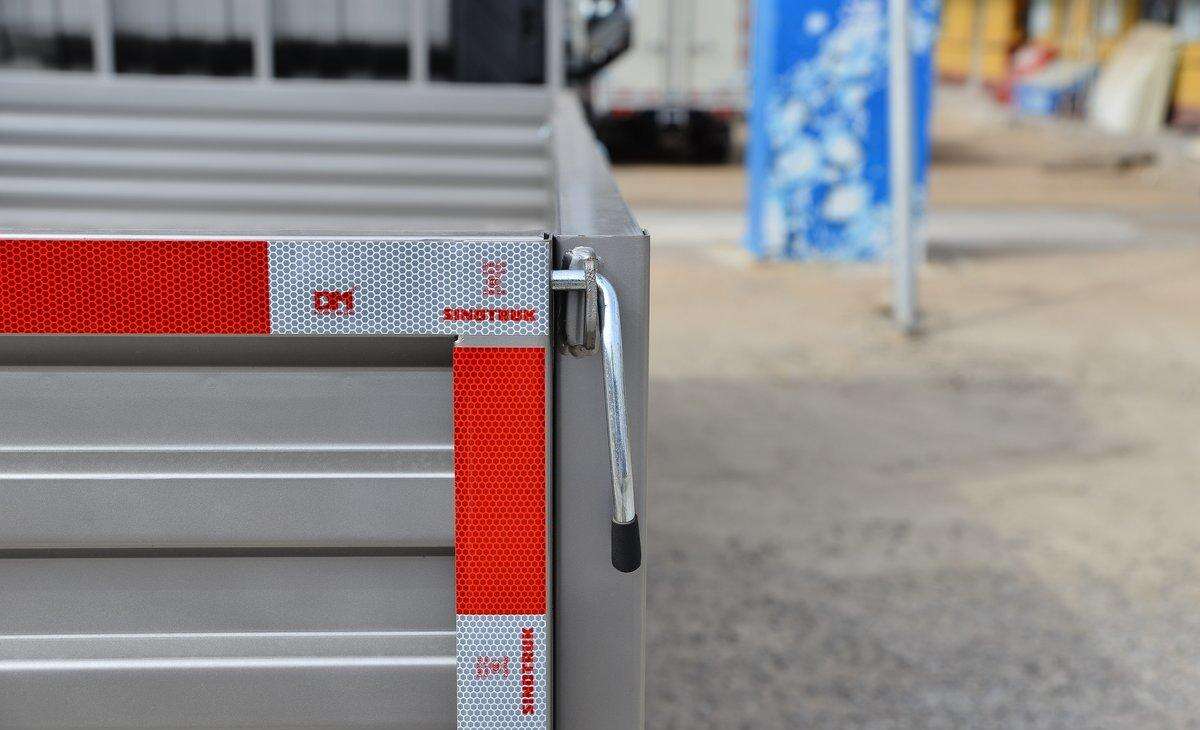

| Cargo box form: | Fence type | Length of cargo box: | 4.15 m |
| Cargo box width: | 2.1 m | Cargo box height: | 0.4m |

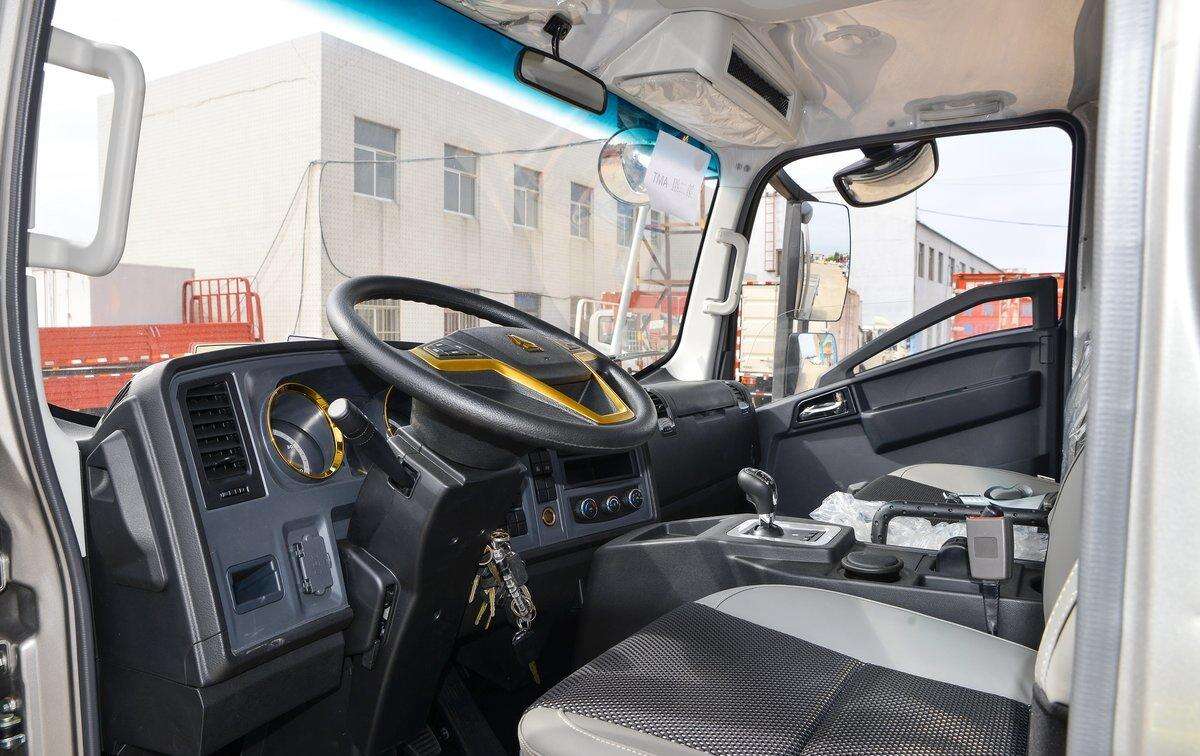

| Cab parameters | |||

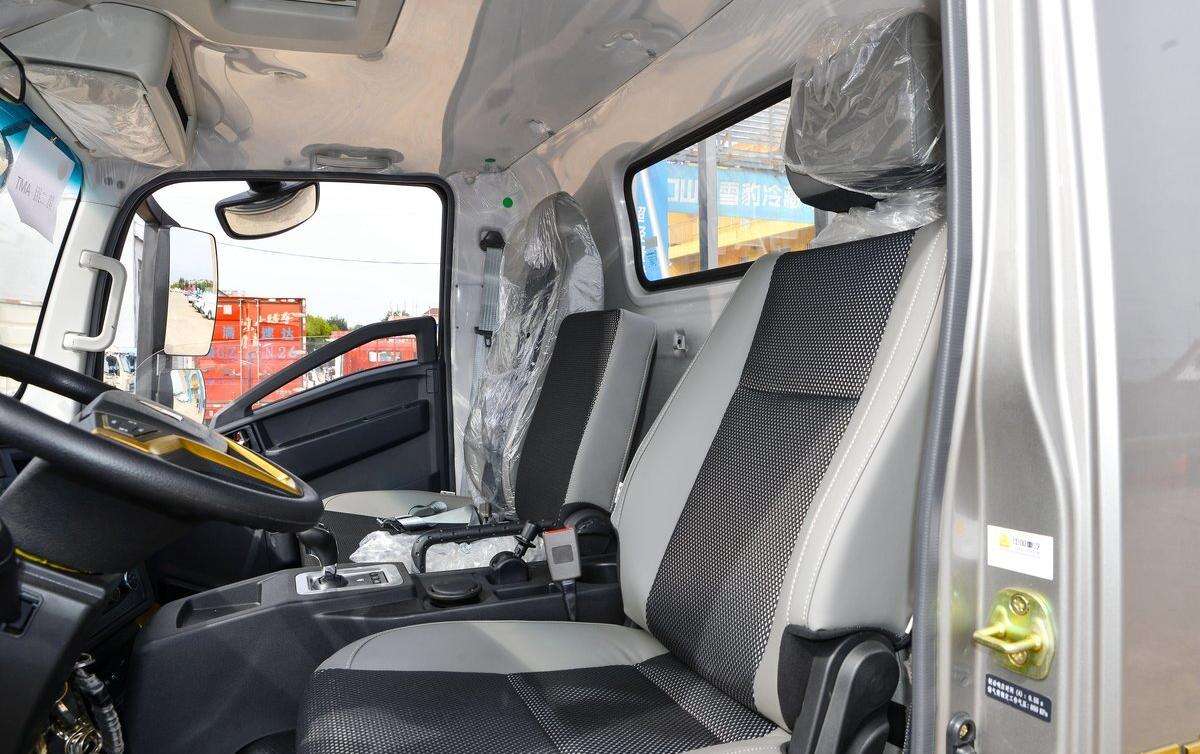

| Number of passengers allowed: | 2 people | Number of Seat Rows: | Single row |
| Gearbox parameters | |||
| Gearbox Model: | Sinotruk HW51508ACL | Gearbox brand: | Sinotruk |
| Shifting method: | AMT | Forward gears: | 8 gears |
| Reverse gear number: | 2 | ||
| Chassis parameters | |||
| Permissible load on front axle: | 1790KG | Permissible load on rear axle: | 2700KG |
| Number of springs: | 3/3+2,3/5+3 | Aluminum Alloy Wheels: | ○ |
| tire | |||

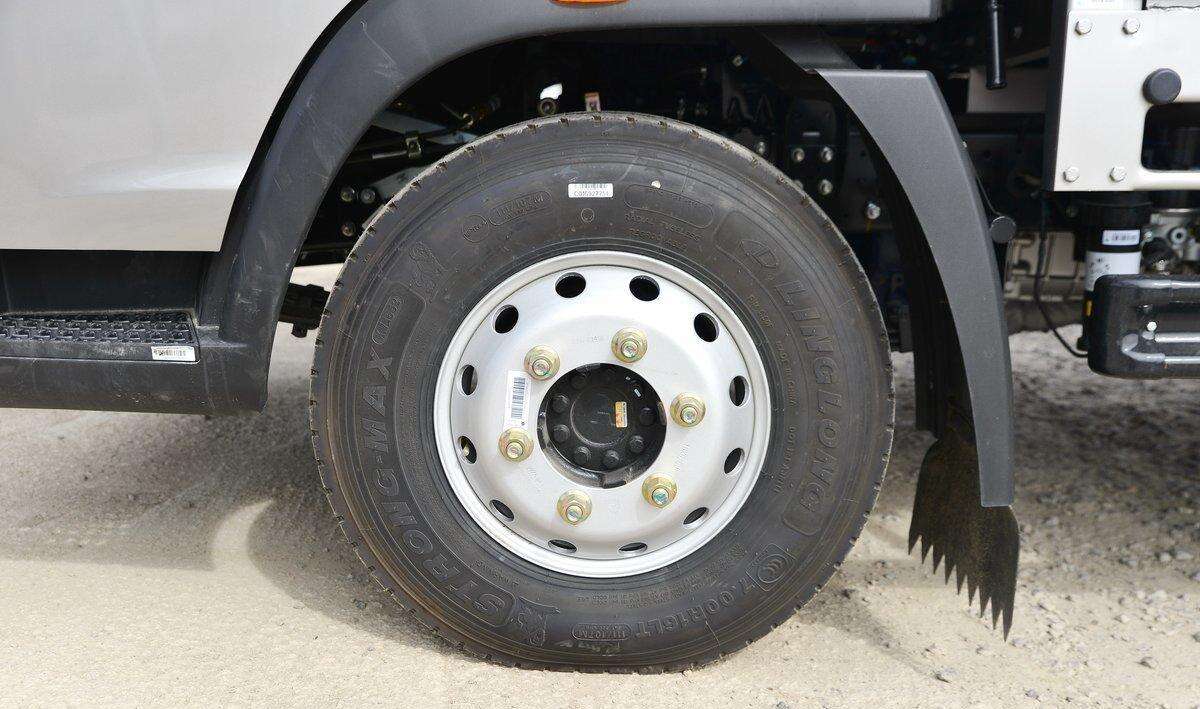

| Tire specifications: | 7.00R16LT 10PR | Number of tires: | 6 |
| Braking | |||
| Vehicle brake type: | Air brake | Parking brake: | Air brake |
| Engine Braking: | In-cylinder brake | Exhaust brake: | ○ |
| Hydraulic retarder: | - | Front wheel brake: | Drum brakes as standard, disc brakes as optional |
| Rear brake: | Drum brake | ||
| Internal Configuration | |||

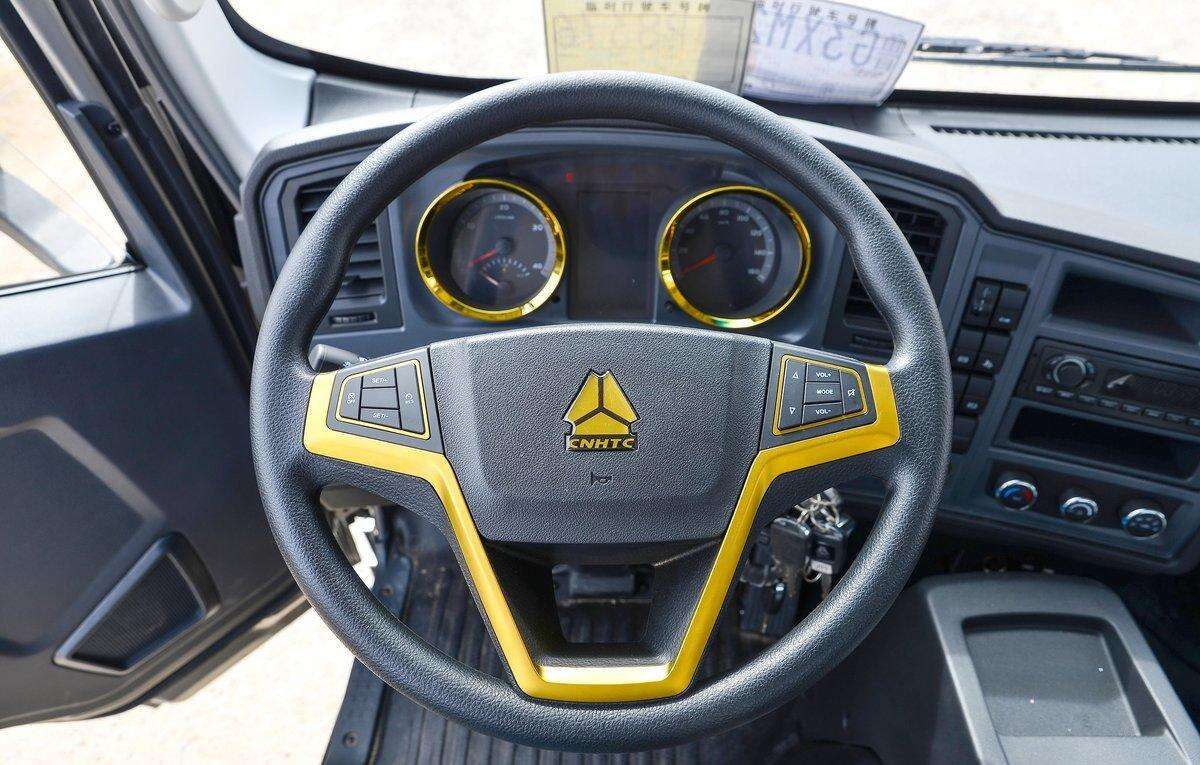

| Steering wheel material: | Leather | Steering wheel adjustment: | Manual |
| Multifunction steering wheel: | ● | Air conditioning adjustment form: | Manual |
| Car refrigerator: | - | Independent heating: | - |
| Power windows: | ● | Electric rearview mirror: | ○ |
| Electric heating of rearview mirror: | ○ | Power interface: | ● |
| Reversing radar: | ● | Seat Material: | Fabric |
| Reversing image: | ○ | Remote control key: | ● |
|
Electronic central locking: |
● | Independent air conditioning: | - |
