SITRAK G7 480 Tractor Truck

Basic Information
Driving license:	A2	Announcement Model:	ZZ4256V324HE1B
Drive type:	6X4	Wheelbase:	3400+1400mm
engine:	Sinotruk MC13.48-50	Gearbox:	Sinotruk HW25712XSTCL
Rear axle ratio:	3.36	Body length:	6.895 m
Body width:	2.496 m	Ride height:	3.62 m
Front track:	2041mm	Rear track:	1830/1830mm
Vehicle weight:	8.8 tons	Total mass:	25 tons
Total traction mass:	40 tons	Maximum speed:	101km/h
Origin:	Zhangqiu, Shandong	Tonnage level:	Heavy Truck
Fuel Type:	diesel fuel
Engine parameters
Engine Model:	Sinotruk MC13.48-50	Engine Brand:	Sinotruk
Number of cylinders:	6 cylinders	Fuel Type:	diesel fuel
Cylinder arrangement:	In-line	Displacement:	12.419L
Emission standards:	National Five	Maximum horsepower:	480 hp
Maximum output power:	356kW	Maximum Torque:	2300N路m
Maximum torque speed:	1050-1400rpm	Rated speed:	1900rpm

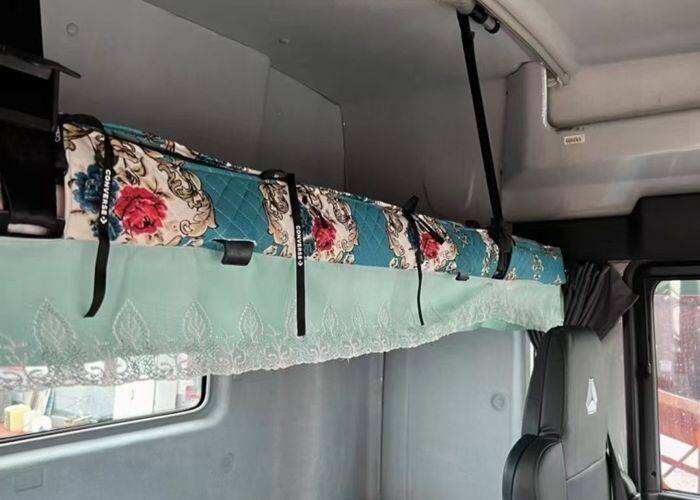

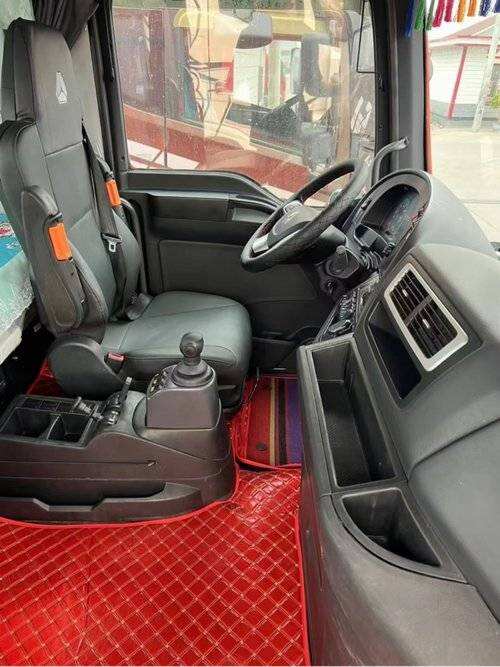

Cab parameters
Cab:	High Top	Number of passengers allowed:	2 people
Number of Seat Rows:	Half row
Gearbox parameters
Gearbox Model:	Sinotruk HW25712XSTCL	Gearbox brand:	Sinotruk
Shifting method:	Manual	Forward gears:	12 gears
Reverse gear number:	2
tank
Fuel tank capacity:	1000L
Chassis parameters
Front axle description:	VPD75ES	Rear Axle Description:	MCY13BES
Permissible load on front axle:	7000kg	Permissible load on rear axle:	18000 (double shafts) kg
Speed 鈥嬧€媟atio:	3.36	Number of springs:	2/3
Suspension type (front/rear):	Front and rear leaf springs	Saddle:	90#JOST
Aluminum Alloy Wheels:	/font>

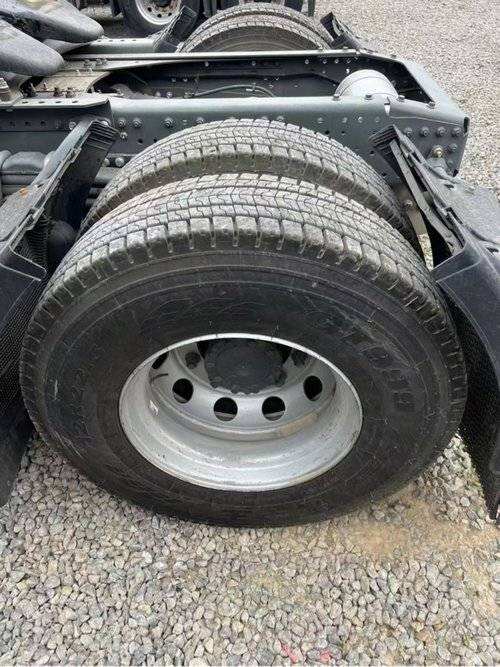

tire
Number of tires:	10	Tire specifications:	12R22.5
