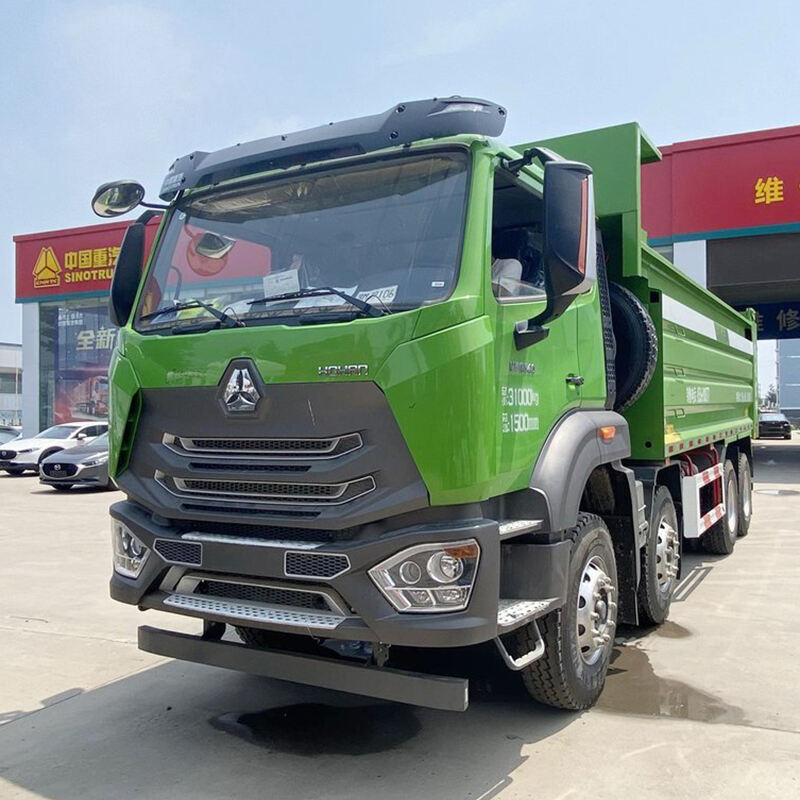

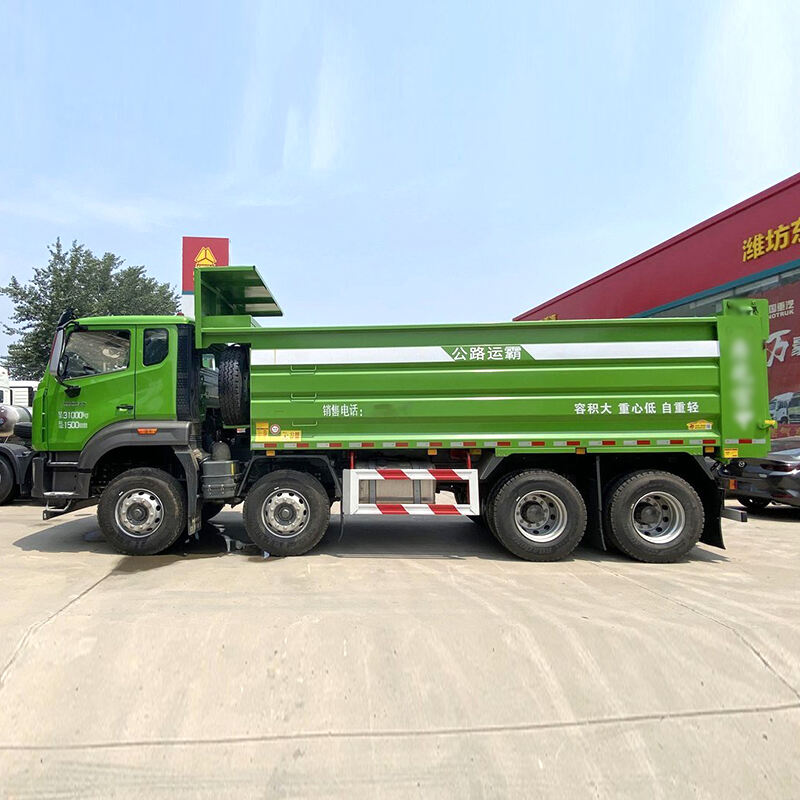

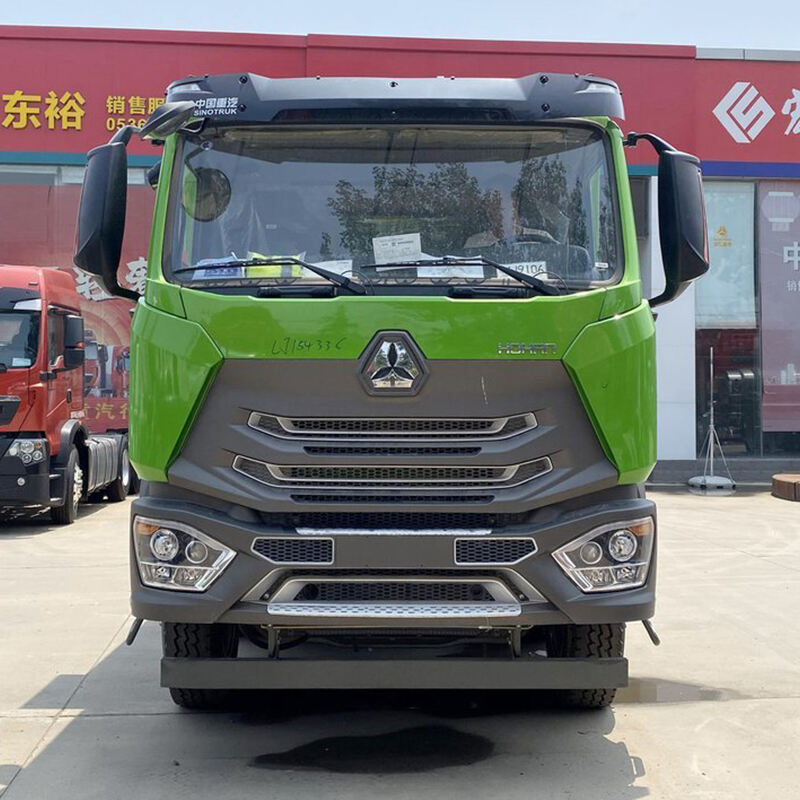

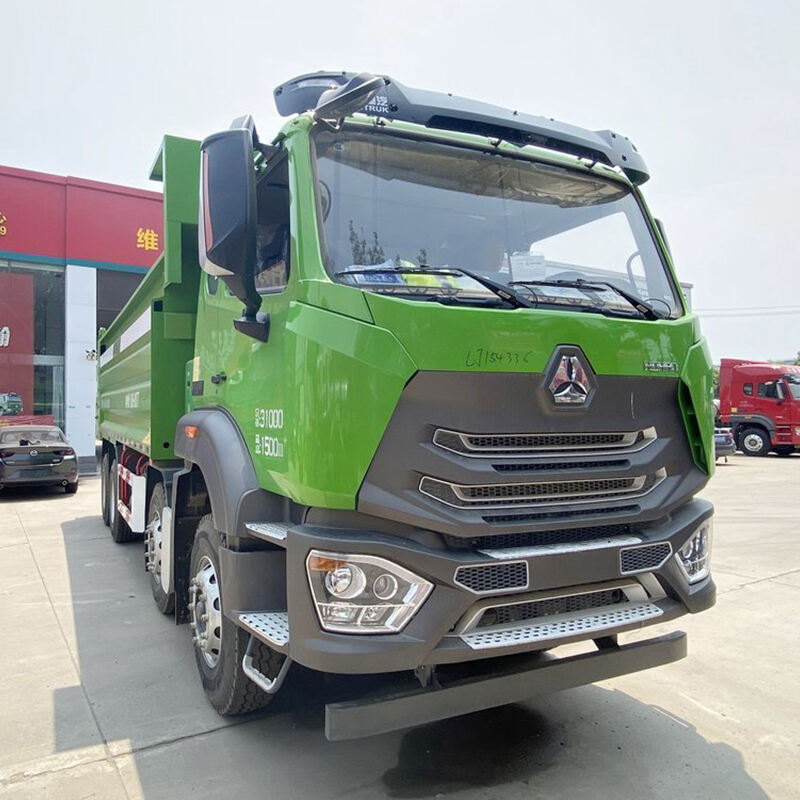

HOWO N5G 5.6M Dump Truck

Introduction

Introduction

主图白边-01(023b9483eb).jpg 主图白边-07(4aedf52bb4).jpg 主图白边-03(900b96cc13).jpg 主图白边-05(a50661c55b).jpg 主图白边-04(a8bd4c61ba).jpg 主图白边-02(60225af948).jpg 主图白边-06(471e514b15).jpg

Basic Information
Driving license:	A1,A2,B2	Announcement Model:	ZZ3315N3063E1
Drive type:	8X4	Wheelbase:	1800+2800+1350mm
engine:	Sinotruk MC07.34-50	Gearbox:	Sinotruk HW19712
Rear axle ratio:	5.73	Body length:	8.98 m
Body width:	2.496 m	Ride height:	3.55 m
Front track:	2022/2022mm	Rear track:	1830/1830mm
Vehicle weight:	14.83 tons	Rated load:	16.04 tons
Total mass:	31 tons	Tonnage level:	Heavy Truck
Approach Angle:	20 degrees	Departure angle:	16 degrees
Origin:	Jinan, Shandong	Market Segments:	Urban construction waste
Overall speed ratio:	5.73	Fuel Type:	diesel fuel
Engine parameters
Engine Model:	Sinotruk MC07.34-50	Engine Brand:	Sinotruk
Number of cylinders:	6 cylinders	Fuel Type:	diesel fuel
Displacement:	6.87L	Emission standards:	National Five
Maximum horsepower:	340 hp	Maximum output power:	248kW
Maximum Torque:	1250Nm	Maximum torque speed:	1200-1800rpm
Rated speed:	2300rpm	Engine Type:	In-line, water-cooled, four-stroke, supercharged and intercooled

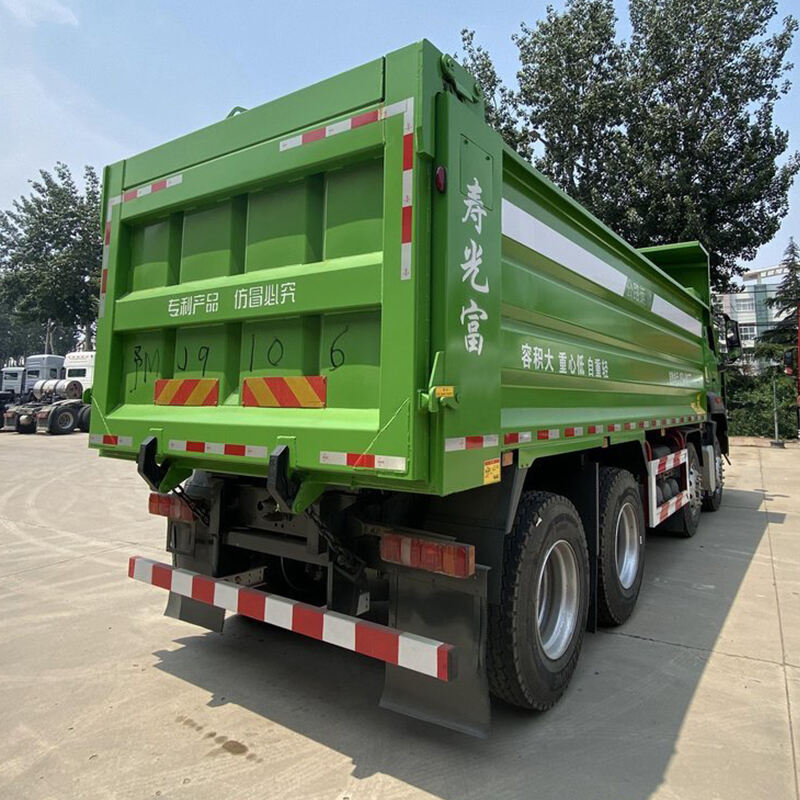

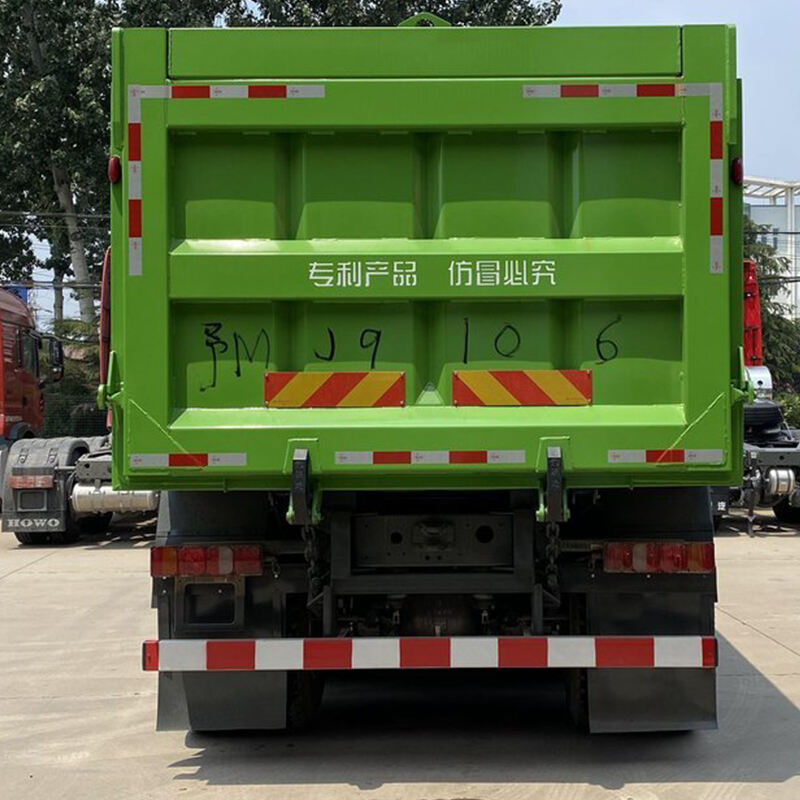

Cargo box parameters
Length of cargo box:	5.6 m	Cargo box width:	2.3 m
Cargo box height:	0.9m	Cargo box form:	Self-unloading

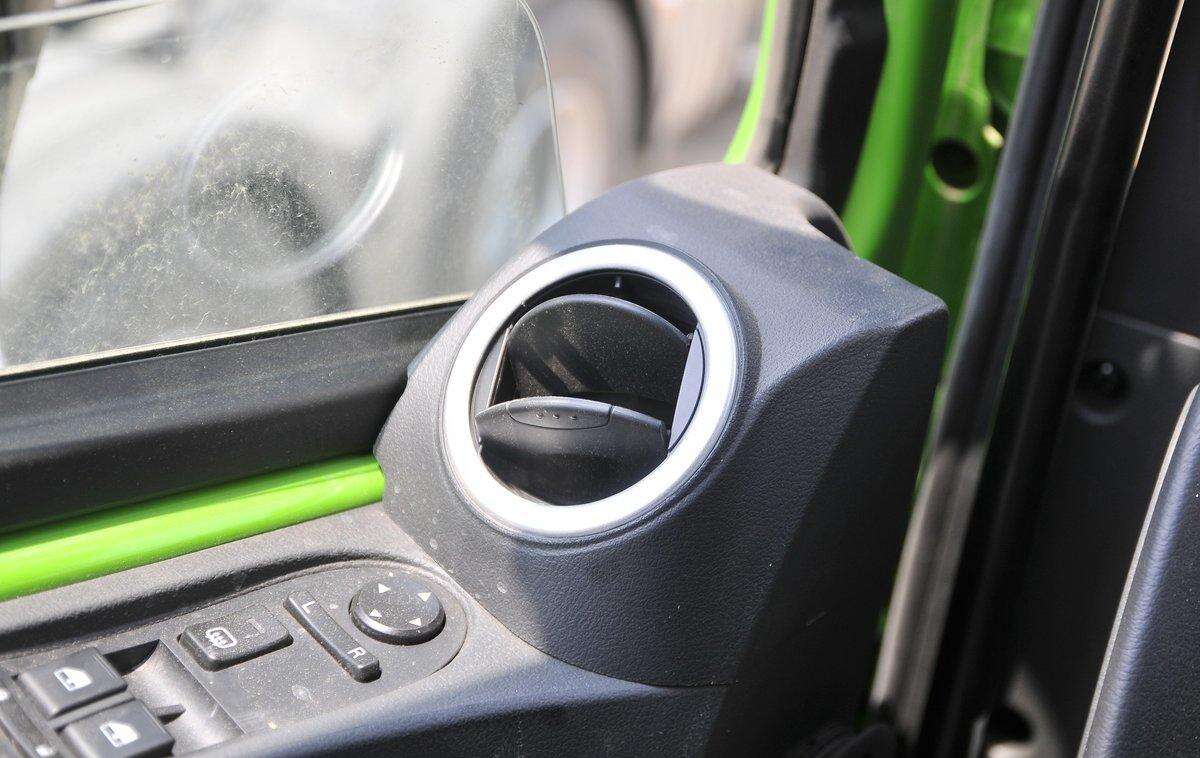

Cab parameters

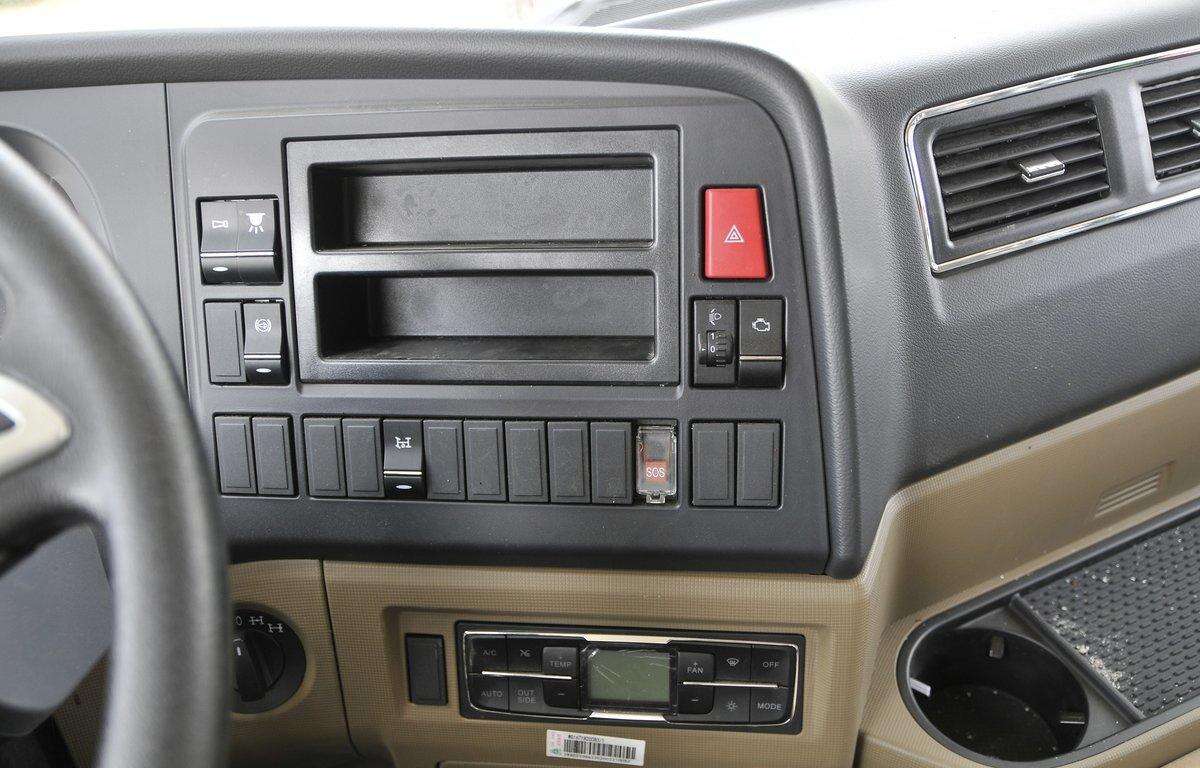

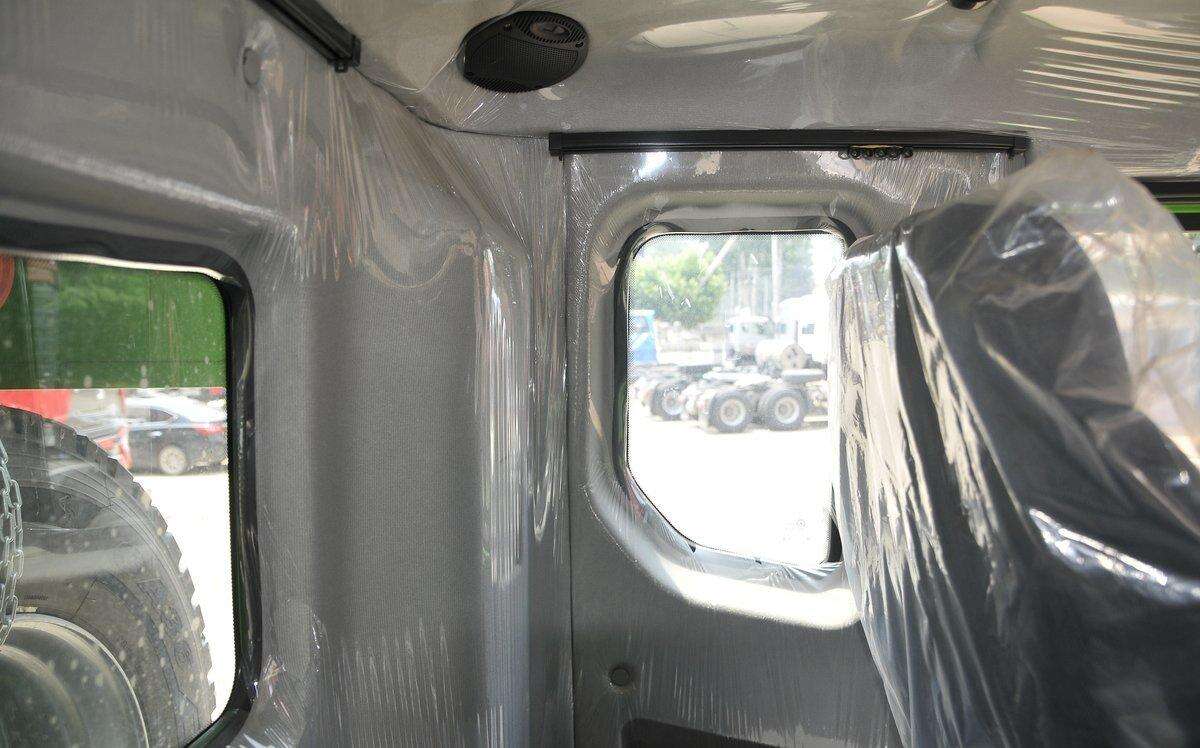

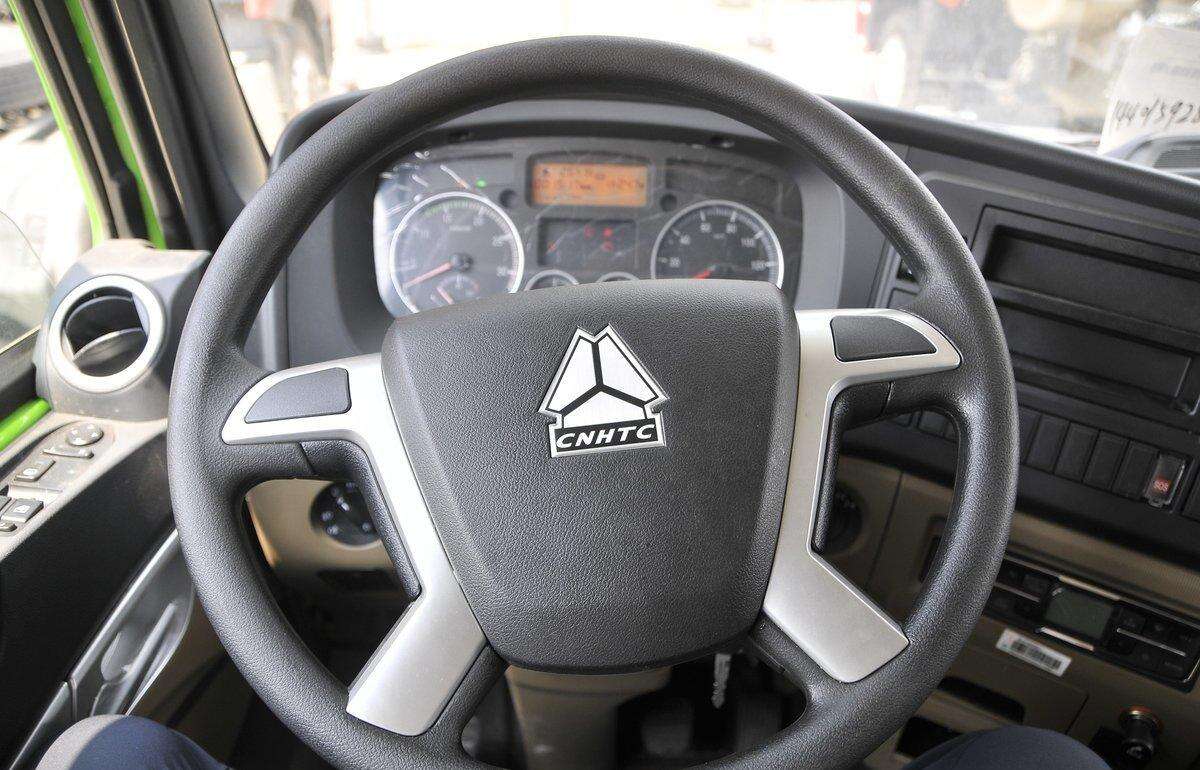

Cab:	H77L

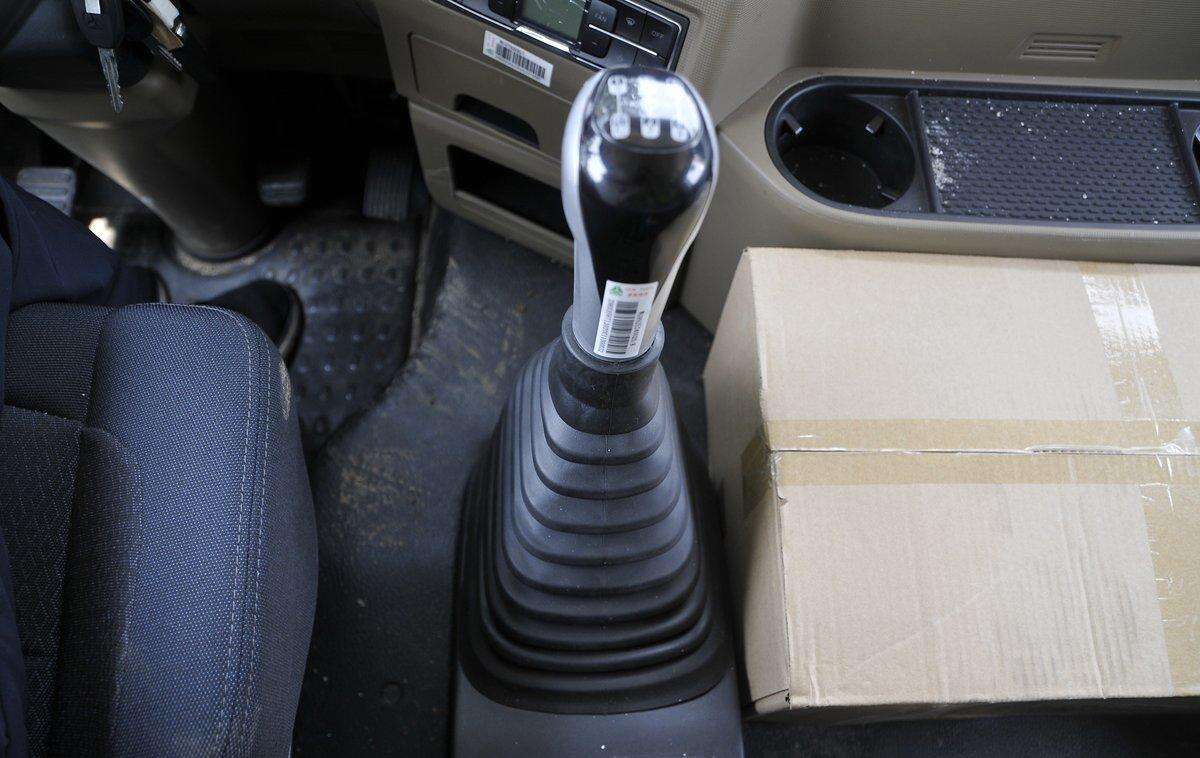

Gearbox parameters
Gearbox Model:	Sinotruk HW19712	Gearbox brand:	Sinotruk

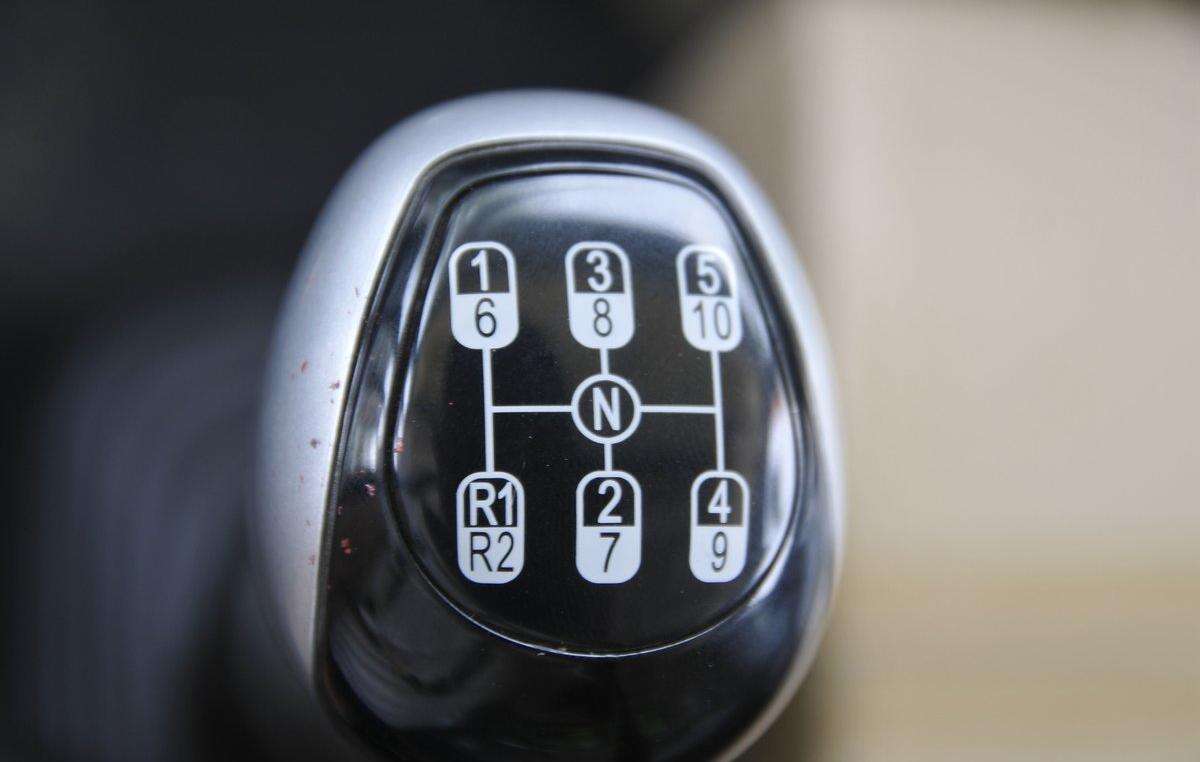

Forward gears:	12 gears	Reverse gear number:	2

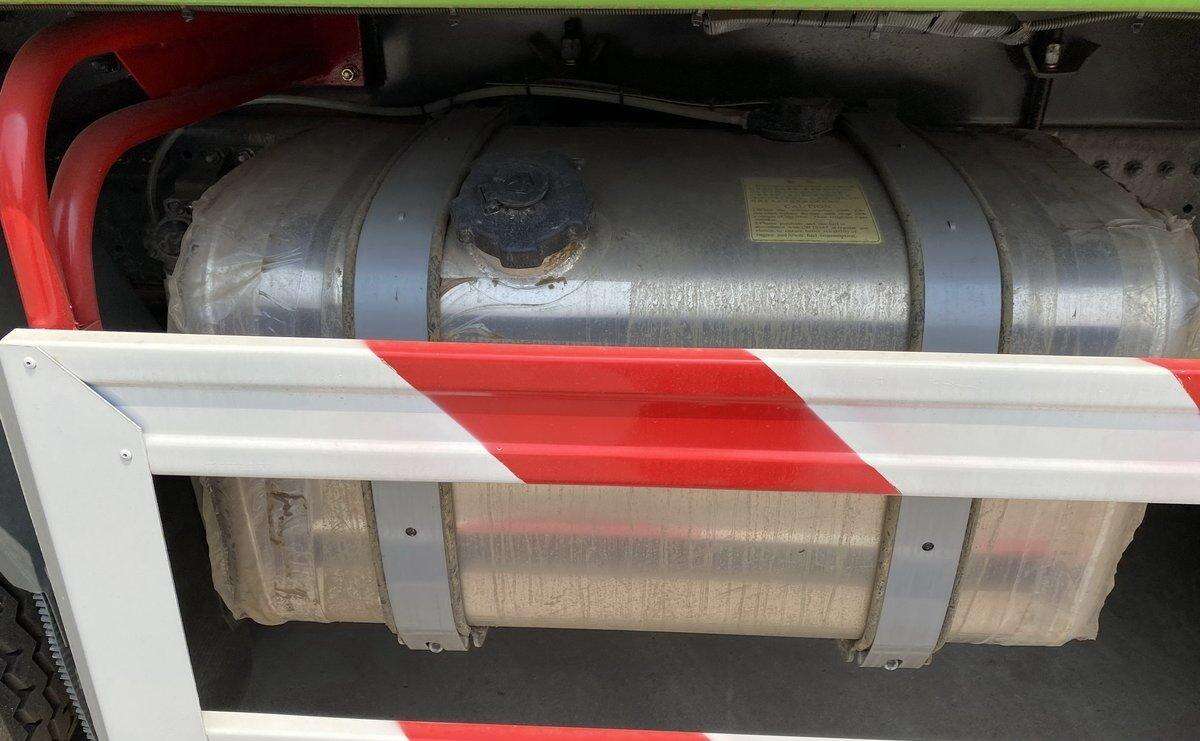

tank
Fuel tank material:	Aluminum Alloy	Fuel tank capacity:	300L

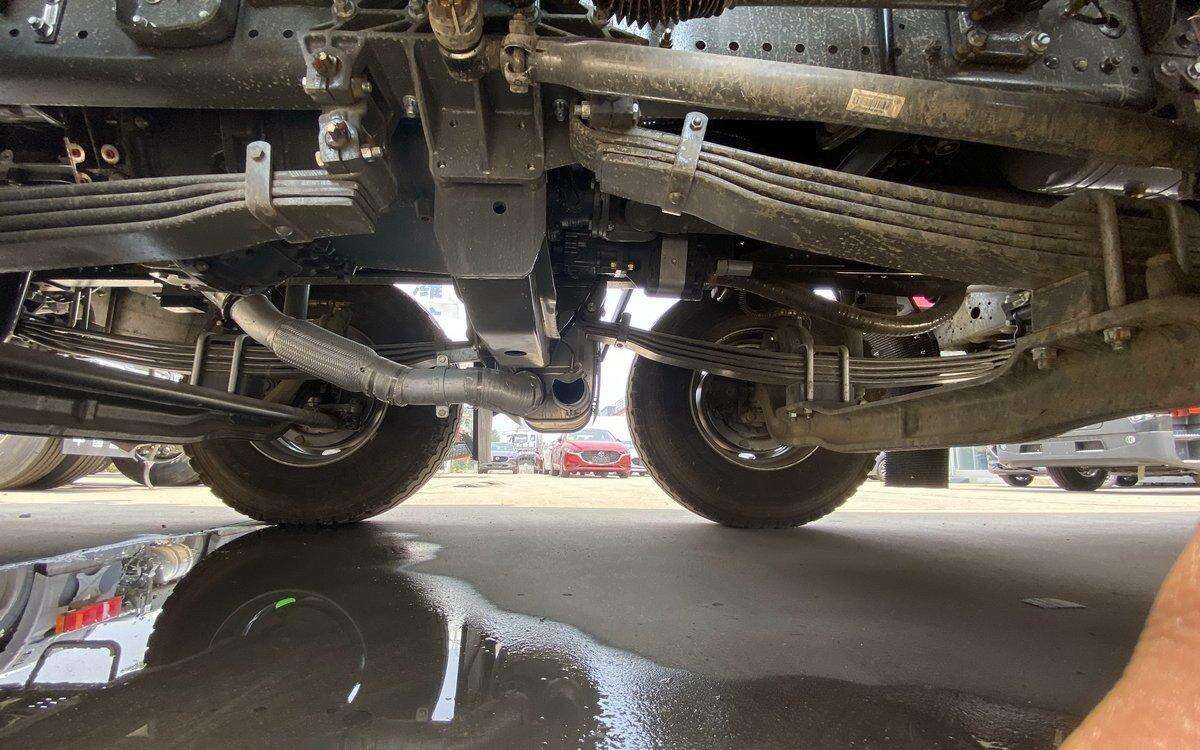

Chassis parameters
Permissible load on front axle:	6500/7000kg	Rear Axle Description:	HC16
Permissible load on rear axle:	17500(two-axle group)kg	Speed atio:	5.73
Number of springs:	4/4/-,4/4/5,4/4/12,11/11/-,11/11/12

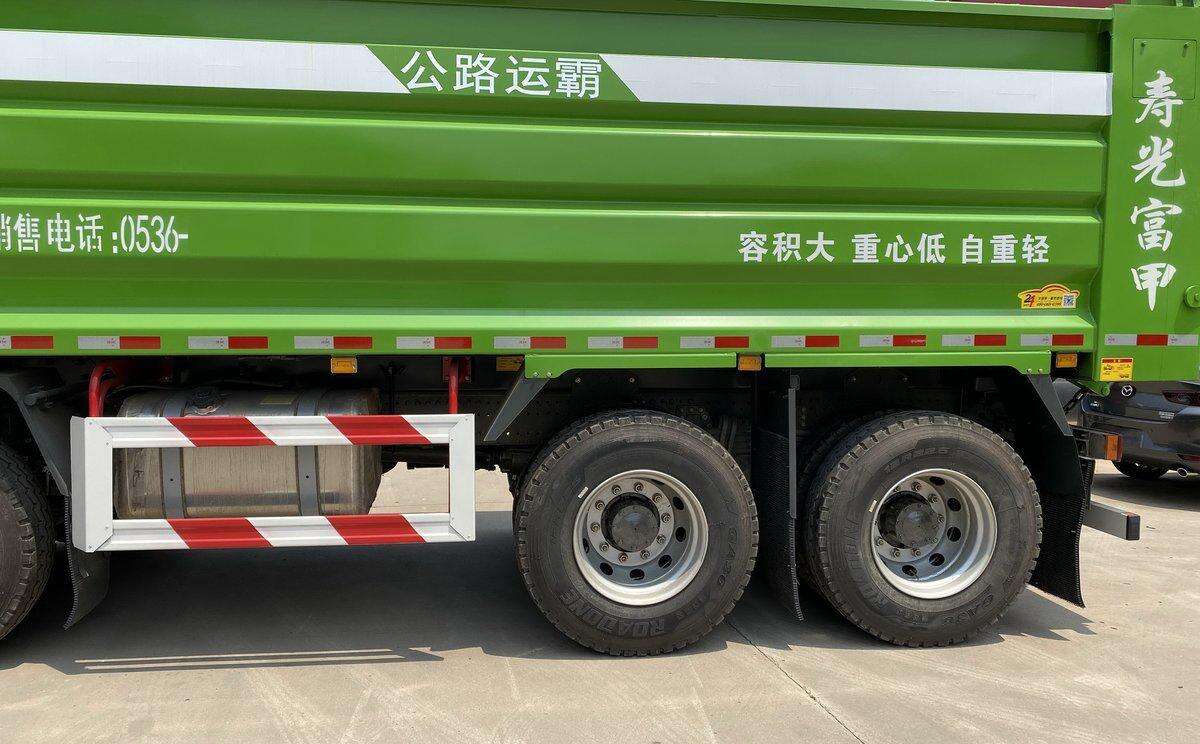

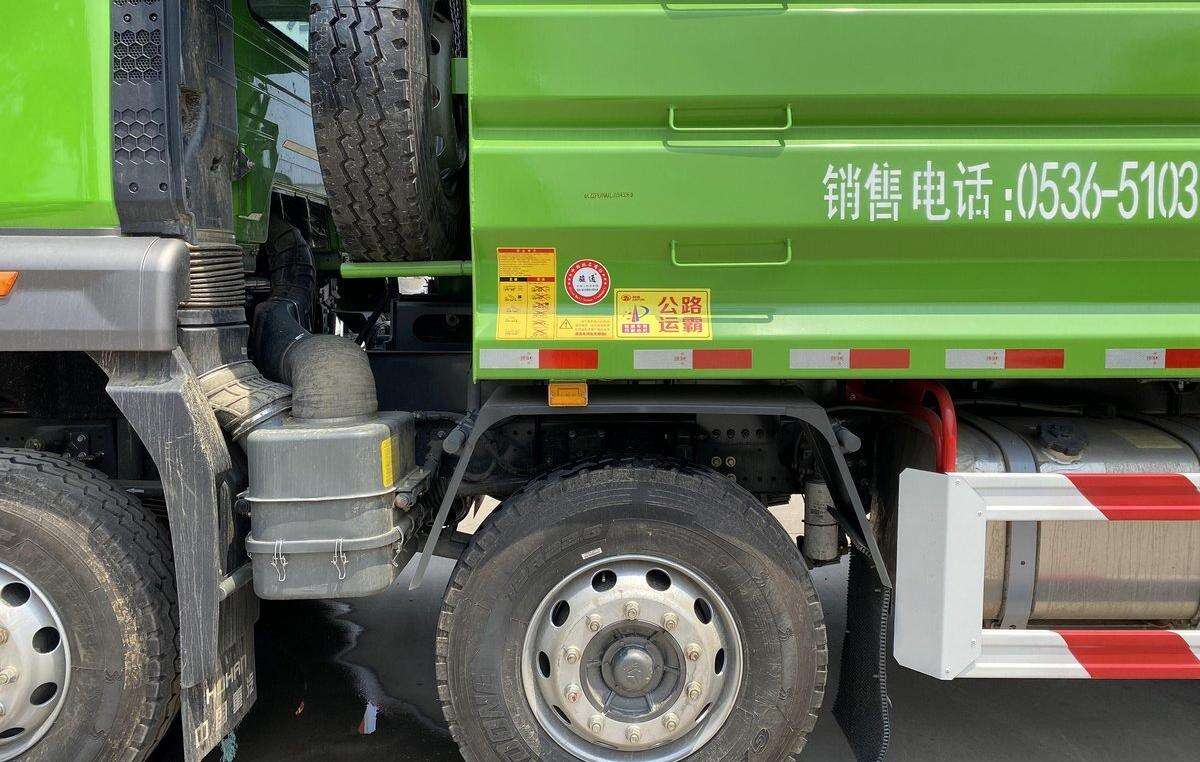

tire
Tire specifications:	11.00R20,12.00R20,12R22.5/315	Number of tires:	12
