| Basic Information | |||
| Driving license: | A2 | Announcement Model: | ZZ4257V424JF1LW |
| Drive type: | 6X4 | Wheelbase: | 3825+1350mm |
| engine: | Sinotruk MT13.44-60 | Gearbox: | Sinotruk HW25716XSTL |
| Rear axle ratio: | 3.08 | Body length: | 7.45 m |
| Body width: | 2.53 m | Ride height: | 3.32 m |
| Front track: | 1996mm | Rear track: | 1830/1830mm |
| Vehicle weight: | 8.8 tons | Total mass: | 25 tons |
| Total traction mass: | 40 tons | Maximum speed: | 79km/h |
| Market Segments: | Dangerous Goods Transport | Origin: | Jining, Shandong |
| Tonnage level: | Heavy Truck | Remark: | Standard: front and rear airbag suspension, seat belt warning device, smart communication version B, ordinary instrument, TFT instrument, ordinary headlight, aluminum alloy air tank, LDWS+FCWS (with radar), electronically controlled silicone oil fan, fire extinguisher, wear alarm device, speed limit 89km/h Optional: front axle, wheels, tires, gas cylinders, saddle, terminal emission monitoring |

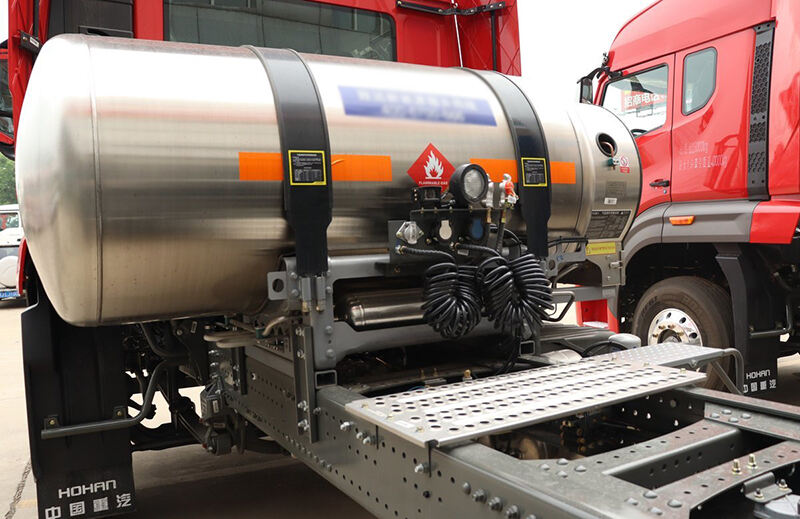

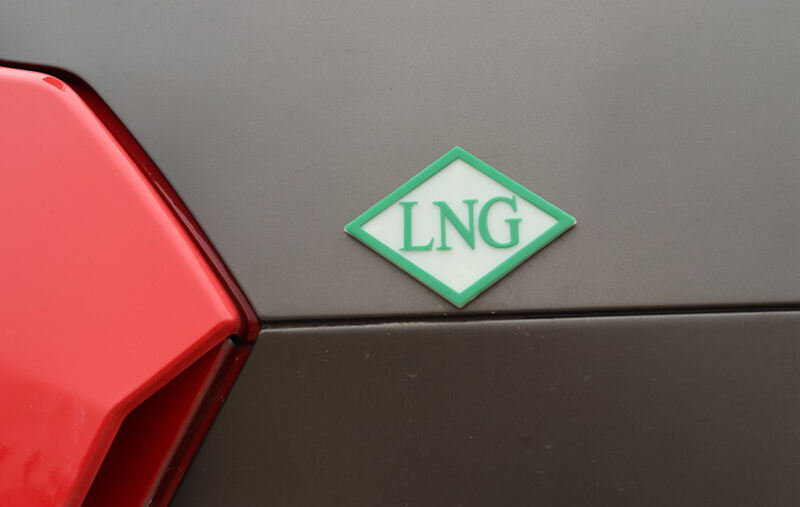

| Fuel Type: | Liquefied Natural Gas (LNG) | ||
| Engine parameters | |||
| Engine Model: | Sinotruk MT13.44-60 | Engine Brand: | Sinotruk |
| Number of cylinders: | 6 cylinders | Fuel Type: | Liquefied Natural Gas (LNG) |
| Cylinder arrangement: | In-line | Displacement: | 12.419L |
| Emission standards: | National VI | Maximum horsepower: | 440 hp |
| Maximum output power: | 327kW | Maximum Torque: | 2100N m |
| Maximum torque speed: | 1000-1400rpm | Rated speed: | 1800rpm |
| Cab parameters | |||

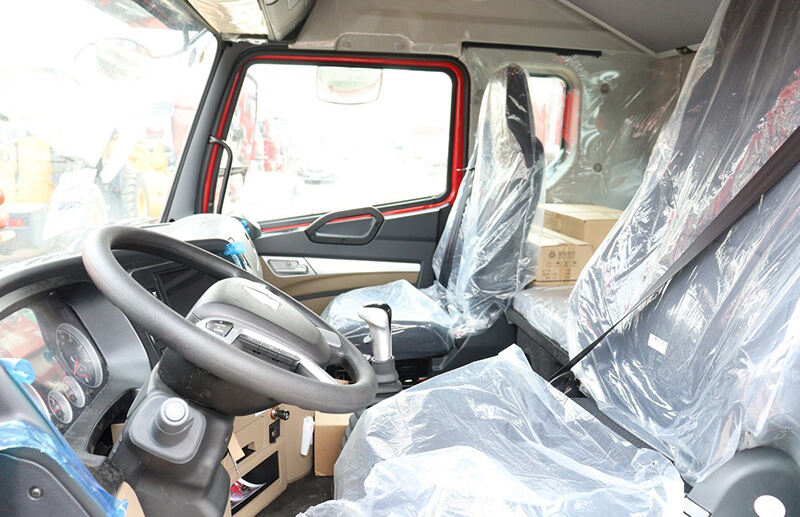

| Number of passengers allowed: | 3 people | Number of Seat Rows: | Half row |
| Cab lift: | electric | Driver's seat type: | Airbag shock absorbing seat |
| Gearbox parameters | |||
| Gearbox Model: | Sinotruk HW25716XSTL | Gearbox brand: | Sinotruk |
| Shifting method: | Manual | Forward gears: | 16 levels |
| Reverse gear number: | 2 | ||
| tank | |||
| Fuel tank capacity: | 1350L | ||

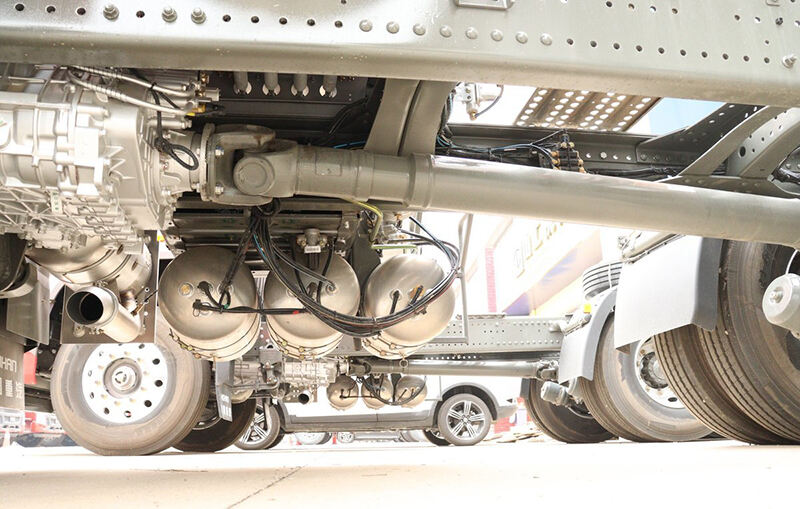

| Chassis parameters | |||
| Frame size: | Single layer frame (8/280) mm | Front axle description: | VPD71DS(disk) |
| Rear Axle Description: | MCY11BGS(Drum) | Permissible load on front axle: | 7000kg |
| Permissible load on rear axle: | 18000(two-axle group)kg | Speed atio: | 3.08 |
| Number of springs: | 2/1+-/1+- | Suspension type (front/rear): | Front and rear single swing arm air suspension |

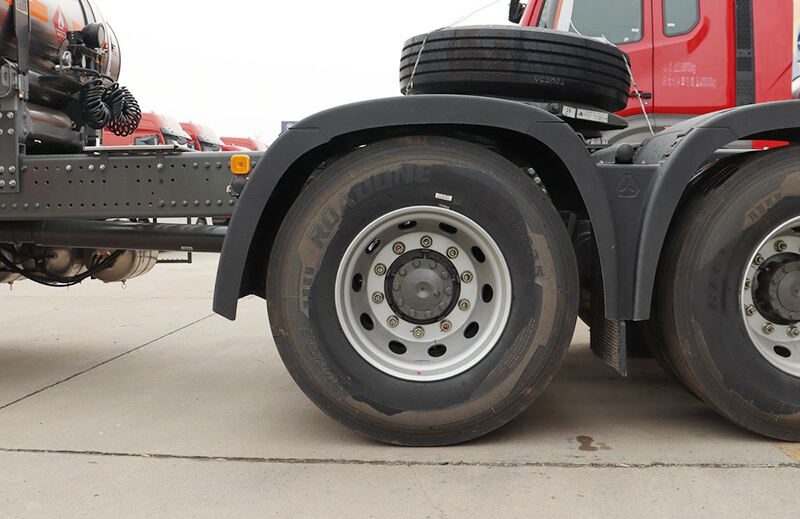

| tire | |||
| Number of tires: | 10 | Tire specifications: | 12R22.5 18PR |
| Control configuration | |||
| ABS anti-lock braking system: | /font> | Inter-axle differential lock: | /font> |
| Inter-wheel differential lock: | /font> | ||
| External Configuration | |||
| Air deflector: | /font> | Integrated mudguard: | /font> |

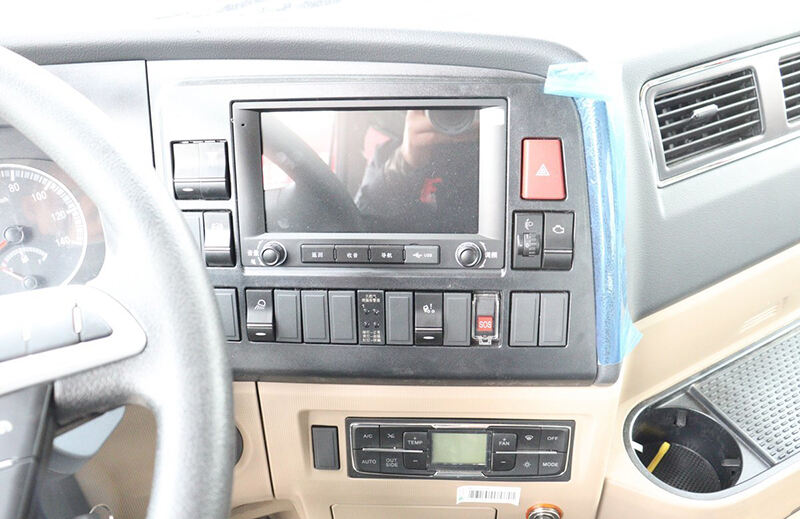

| Internal Configuration | |||

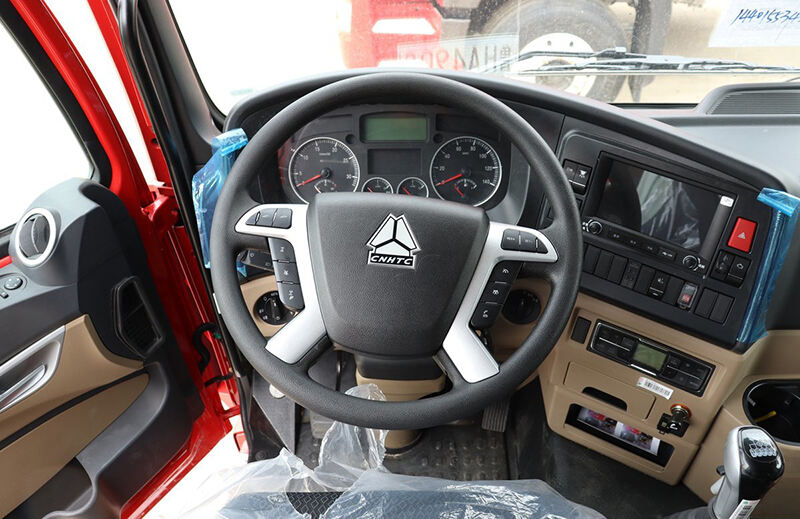

| Multifunction steering wheel: | /font> | Air conditioning adjustment form: | automatic |
| Independent heating: | /font> | Power windows: | /font> |
| Electric rearview mirror: | /font> | Power interface: | 220V-1000W Inverter Power Supply |
| Remote control key: | /font> | Electronic central locking: | /font> |
