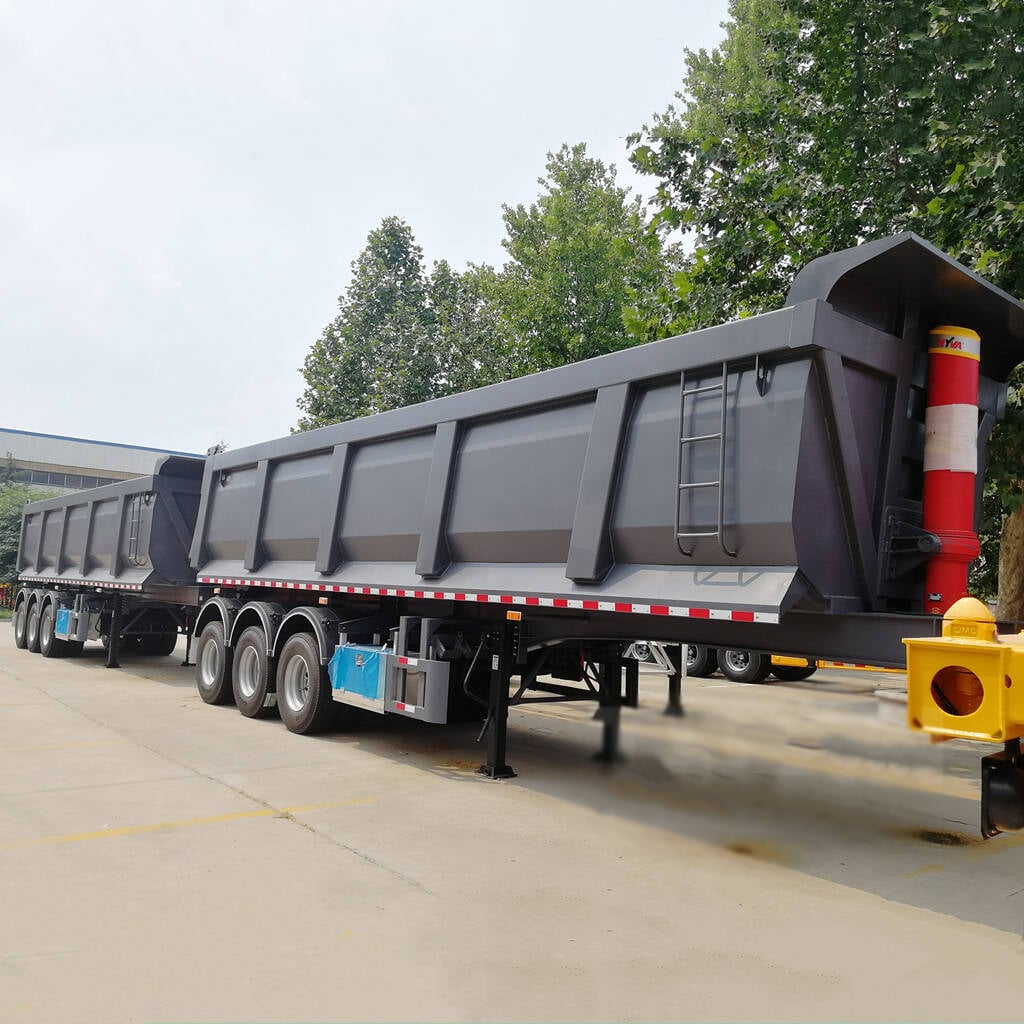

Three axle U-type tipper semi-trailer

Three axle U-type tipper semi-trailer

OUR self-unloading semi-trailers are available in different load capacities: 24 cu.m., 30 cu.m., 35 cu.m., 45 cu.m., as well as in different types: standard, U-type rear roll-over, flatbed container self-unloading semi-trailers, skeleton self-unloading towing semi-trailers, and side-unloading semi-trailers.

Product Description:

OUR dump trailer uses high-strength steel, making it strong and durable when loading sand, small stones or rocks. The loading capacity is 40 tons, 60 tons, 80 tons.

OUR  dump trucks are equipped with reliable hydraulic HYVA cylinders. We can customize dump trucks according to your special needs, such as U-type back-flip, side-tip semi-trailers and container dump semi-trailers, including skeleton and flatbed dump semi-trailers.

We use famous brand axles FUWA, BPW. It has high performance and is reliable to use.

Advantages:

1. The double-plate main beam of the heavy-duty dump trailer has strong load-bearing capacity and is not easily damaged.

2. Hydraulic cylinder: heavy-duty cylinder with larger diameter, stronger lifting capacity and higher height, making the lifting more stable and not easy to tip over.

3. With 4 sub-beams and cross balance beams. The lattice structure of the side door makes the side door stronger.

4. Flip Brackets: 4 flip brackets, which can make the rear end load more evenly during unloading and not easy to damage the trailer.

5. The leaf spring is widened and thickened, with good shock absorption effect.

6. Reinforced ribs and unique structural design can maximize the payload.

Specification:

Overall dimensions: 9300mm * 2500mm * 1600mm

Volume: 33 cubic meters

Axle: Three bridges

Suspension: Heavy duty mechanical suspension

Hydraulic system: 196 hydraulic cylinders

Tires: 12

Traction pin: 90#

Outrigger: JOST

Braking system: WABCO

Electrical system: 24V, LED light
