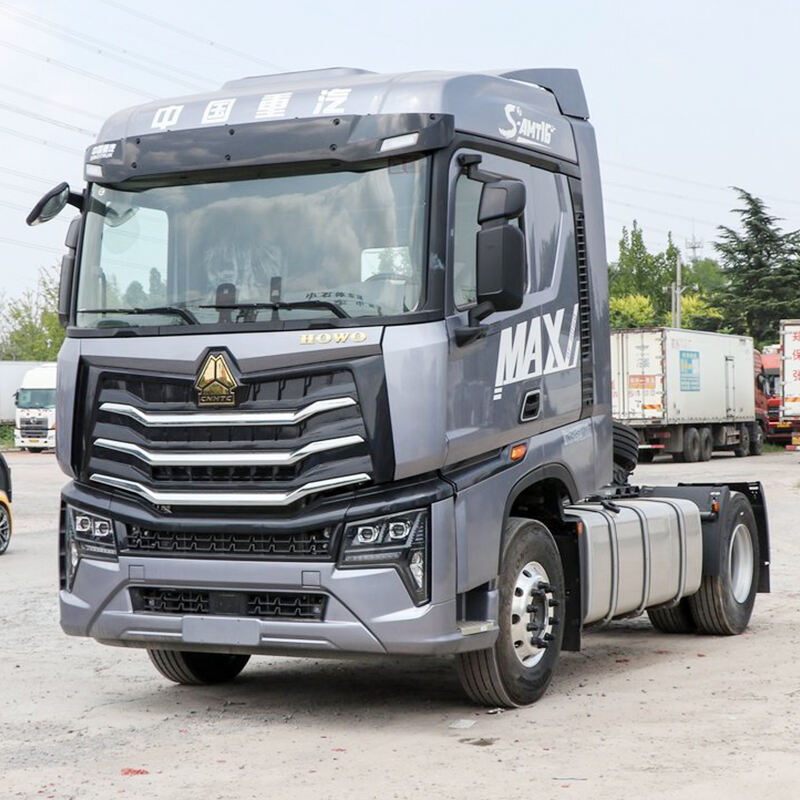

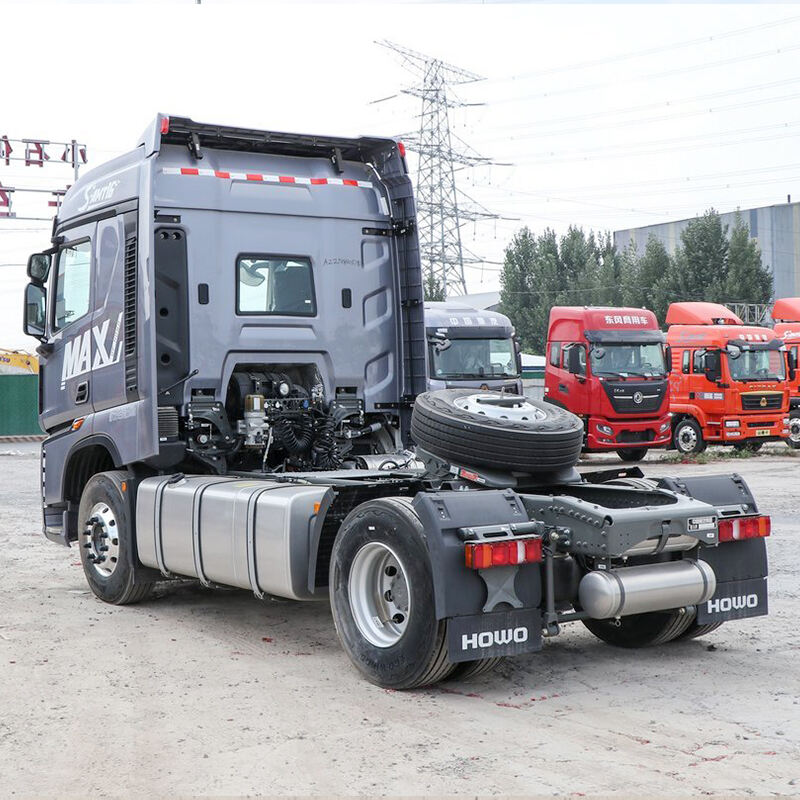

HOWO MAX 510 Tractor Truck

Basic Information
Driving license:	A2	Announcement Model:	ZZ4187V391KF1
Drive type:	4X2	Wheelbase:	3900mm
engine:	Sinotruk MC13H.51-61	Gearbox:	Sinotruk HW25716XAL
Rear axle ratio:	3.08	Body length:	6.39 m
Body width:	2.53 m	Ride height:	3.82 m
Front track:	2022mm	Rear track:	1830mm
Vehicle weight:	6.8 tons	Total mass:	18 tons
Total traction mass:	35 tons	Maximum speed:	89km/h
Origin:	Jining	Tonnage level:	Heavy Truck
Fuel Type:	diesel fuel
Engine parameters
Engine Model:	Sinotruk MC13H.51-61	Engine Brand:	Sinotruk
Number of cylinders:	6 cylinders	Fuel Type:	diesel fuel
Cylinder arrangement:	In-line	Displacement:	13.02L
Emission standards:	National VI	Maximum horsepower:	510 hp
Maximum output power:	378kW	Maximum Torque:	2400Nm
Maximum torque speed:	950-1400rpm	Rated speed:	1800rpm

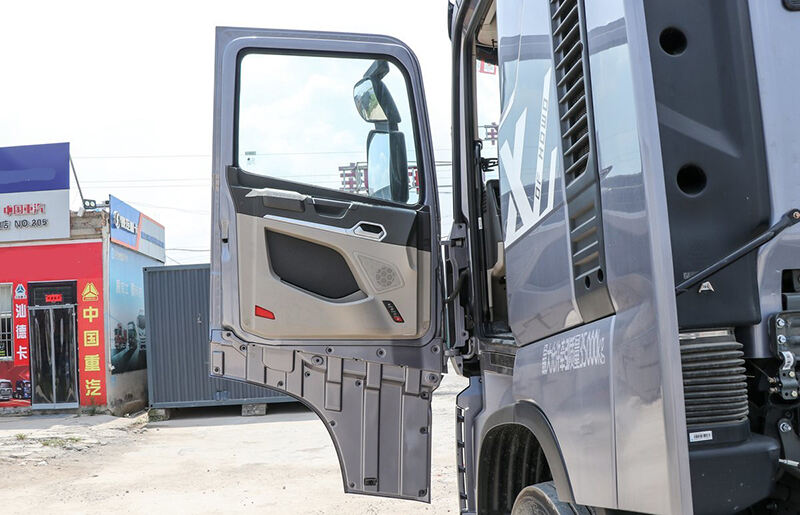

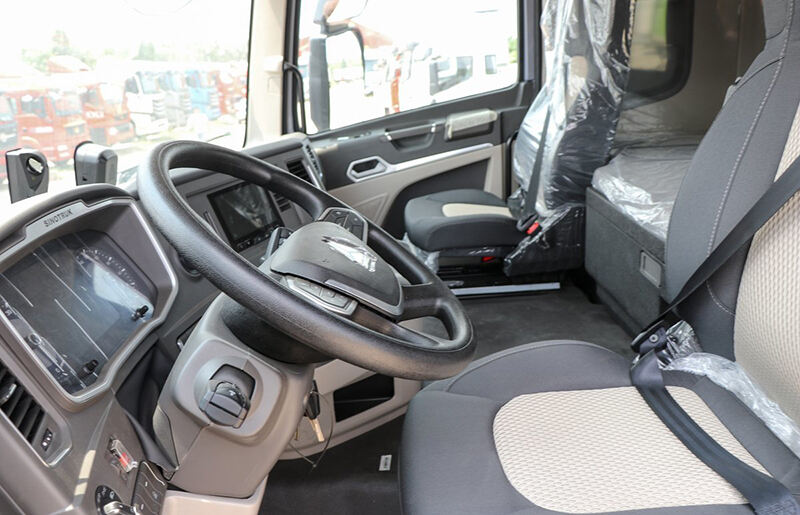

Cab parameters

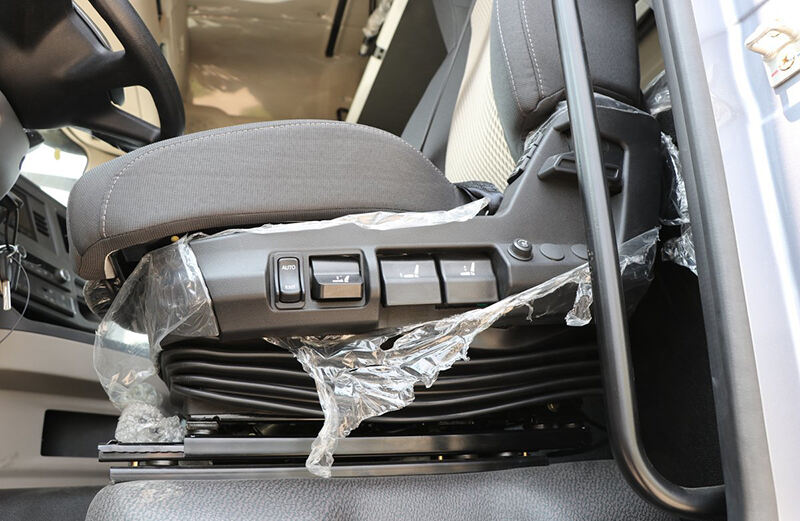

Number of passengers allowed:	2 people	Number of Seat Rows:	Half row
Gearbox parameters
Gearbox Model:	Sinotruk HW25716XAL	Gearbox brand:	Sinotruk
Shifting method:	AMT	Forward gears:	16 levels
Reverse gear number:	2
tank
Fuel tank capacity:	1000L

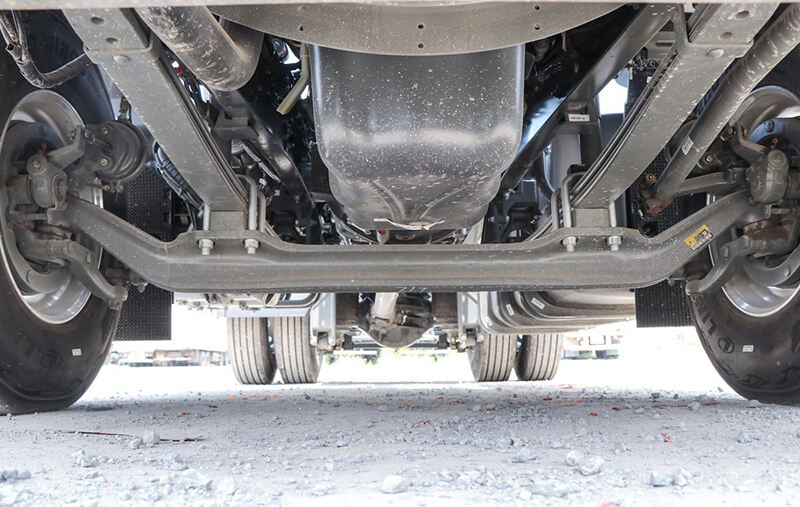

Chassis parameters
Permissible load on front axle:	6500kg	Permissible load on rear axle:	11500kg
Speed atio:	3.08	Number of springs:	2/-
tire

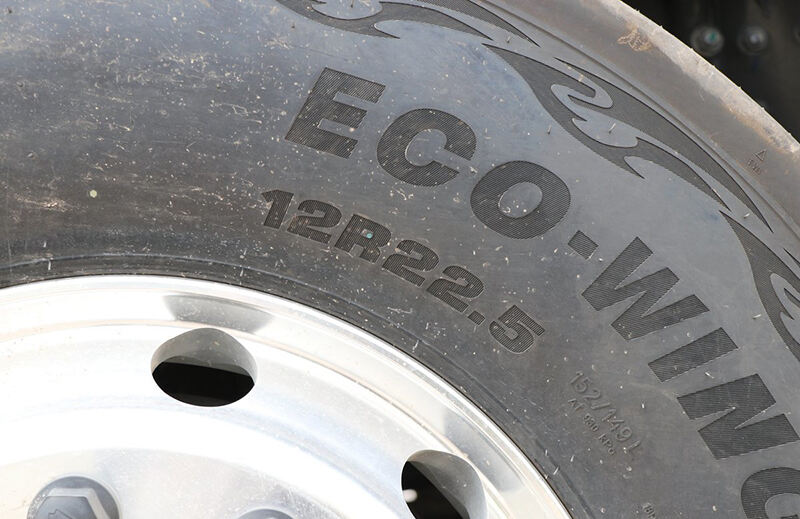

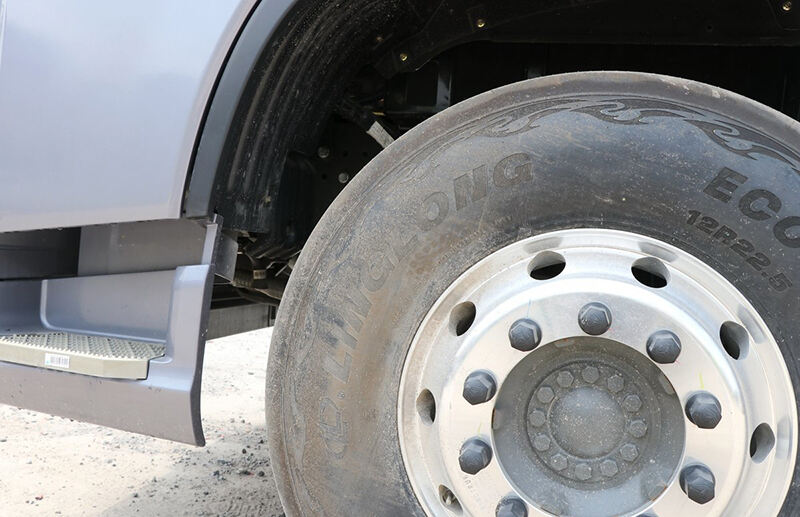

Number of tires:	6	Tire specifications:	12R22.5 18PR
