| Basic Information | |||
| Driving license: | A2 | Announcement Model: | ZZ4256V384HF1LB |
| Drive type: | 6X4 | Gearbox: | ZF ZF16S2530 TO |
| Rear axle ratio: | 3.7 | Origin: | Zhangqiu, Shandong |
| Tonnage level: | Heavy Truck | Remark: | TGA Technology Frame-Version B |
| Version: | LNG version | Fuel Type: | Liquefied Natural Gas (LNG) |
| Engine parameters | |||
| Engine Model: | Sinotruk MT13.48-60 | Engine Brand: | Sinotruk |
| Number of cylinders: | 6 cylinders | Fuel Type: | Liquefied Natural Gas (LNG) |
| Cylinder arrangement: | In-line | Displacement: | 12.419L |
| Emission standards: | National VI | Maximum horsepower: | 480 hp |
| Maximum output power: | 356kW | Maximum Torque: | 2200N m |
| Maximum torque speed: | 1000-1400rpm | Rated speed: | 1900rpm |

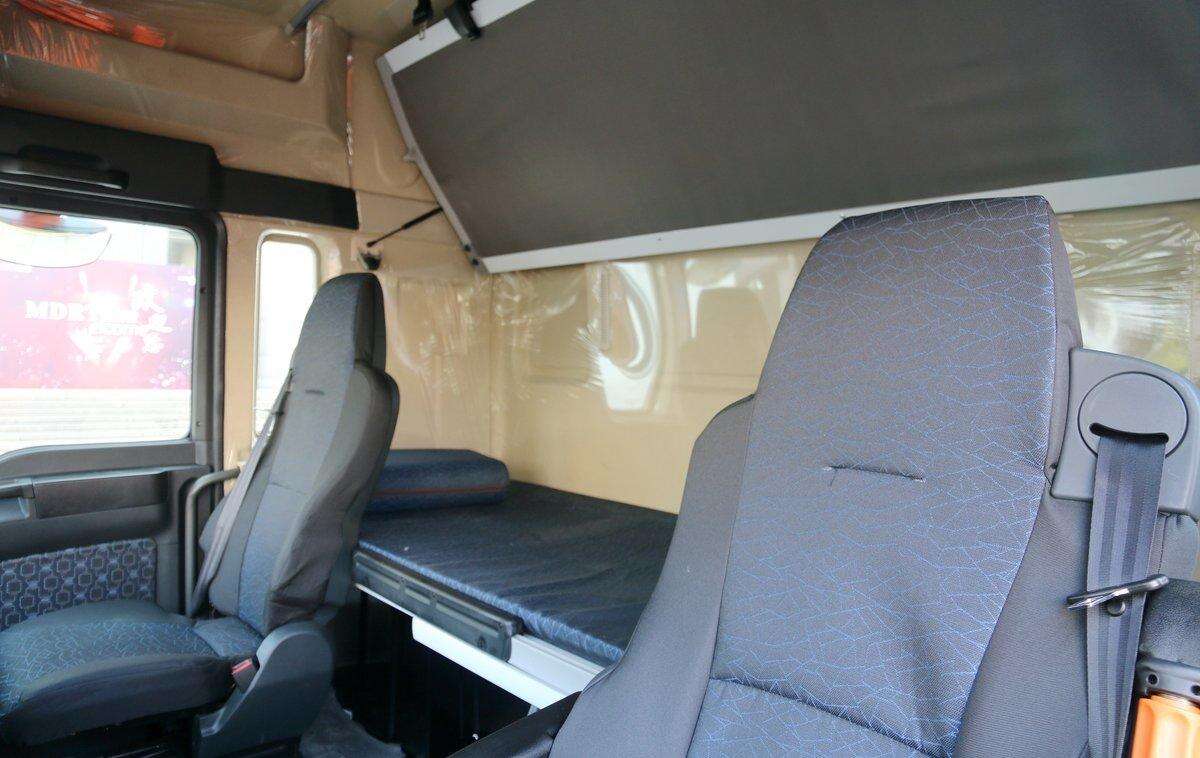

| Cab parameters | |||
| Cab: | High Top | Number of passengers allowed: | 3 people |
| Number of Seat Rows: | Half row | ||
| Gearbox parameters | |||
| Gearbox Model: | ZF ZF16S2530TO | Gearbox brand: | ZF |

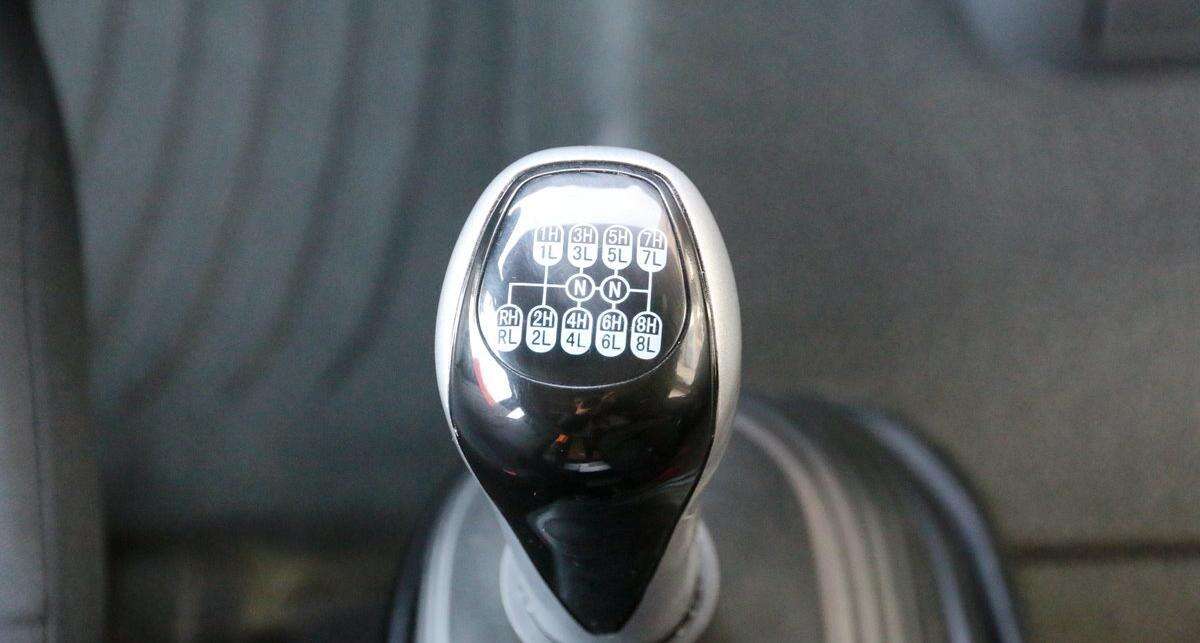

| Shifting method: | Manual | Forward gears: | 16 levels |
| Reverse gear number: | 2 | ||

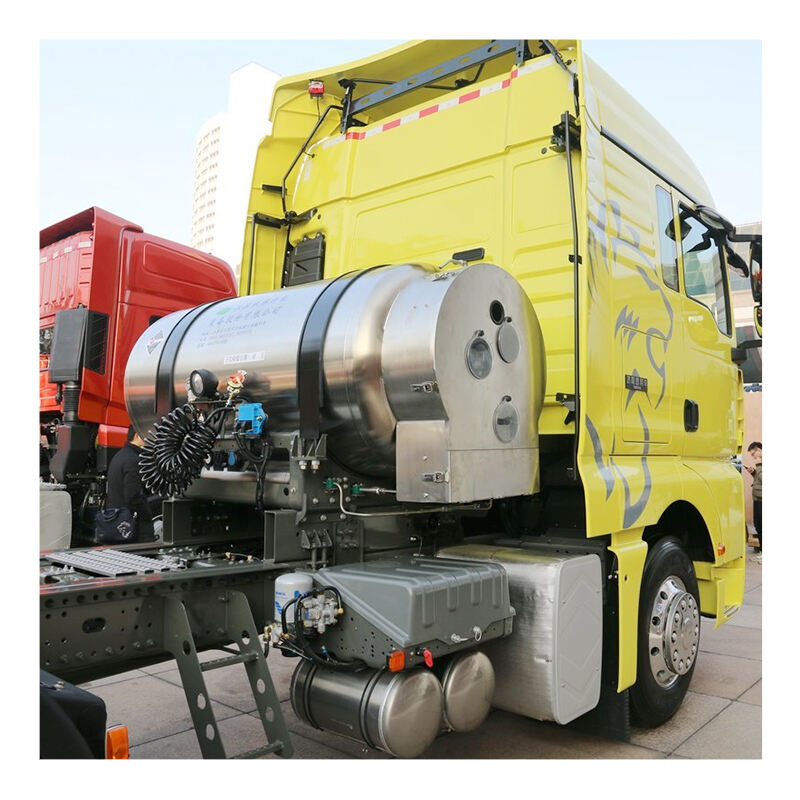

| tank | |||

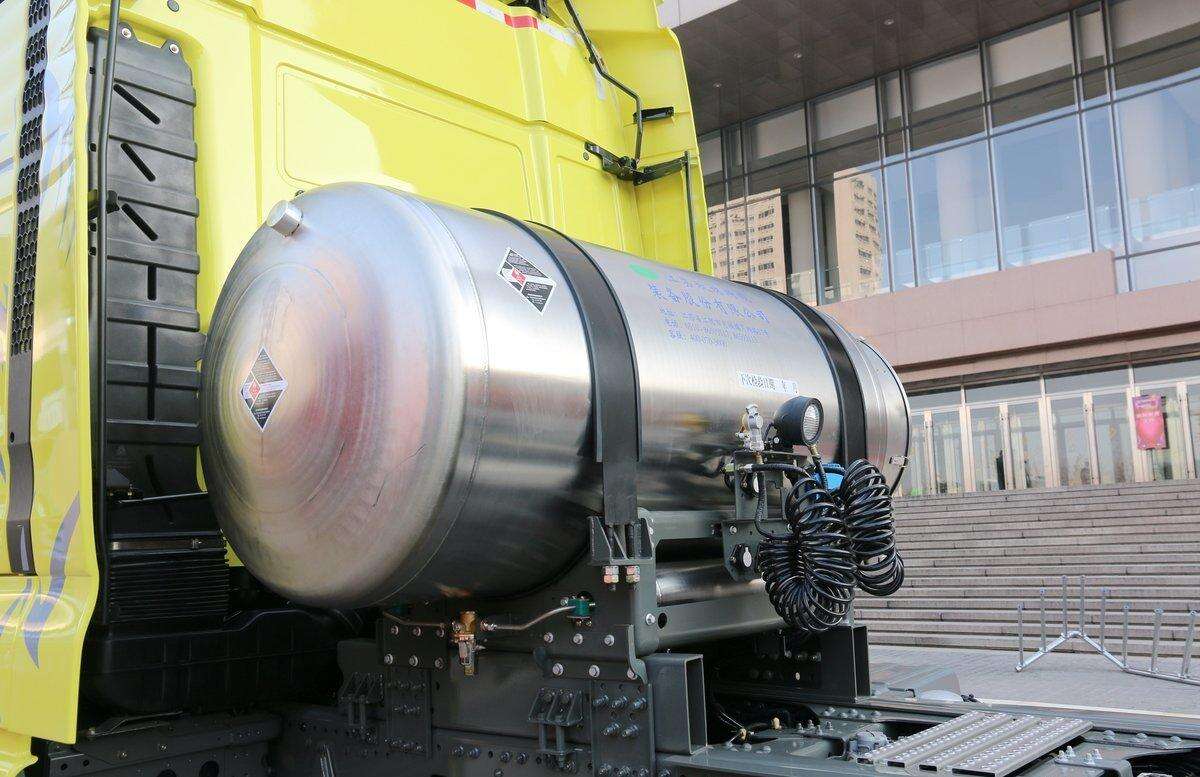

| Fuel tank capacity: | 995L | ||
| Chassis parameters | |||
| Front axle description: | HR7 | Rear Axle Description: | MCY13 double rear axle |
| Speed atio: | 3.7 | Number of springs: | 3/-/- |
| Suspension type (front/rear): | Front less, rear full air suspension | Saddle: | 90# |

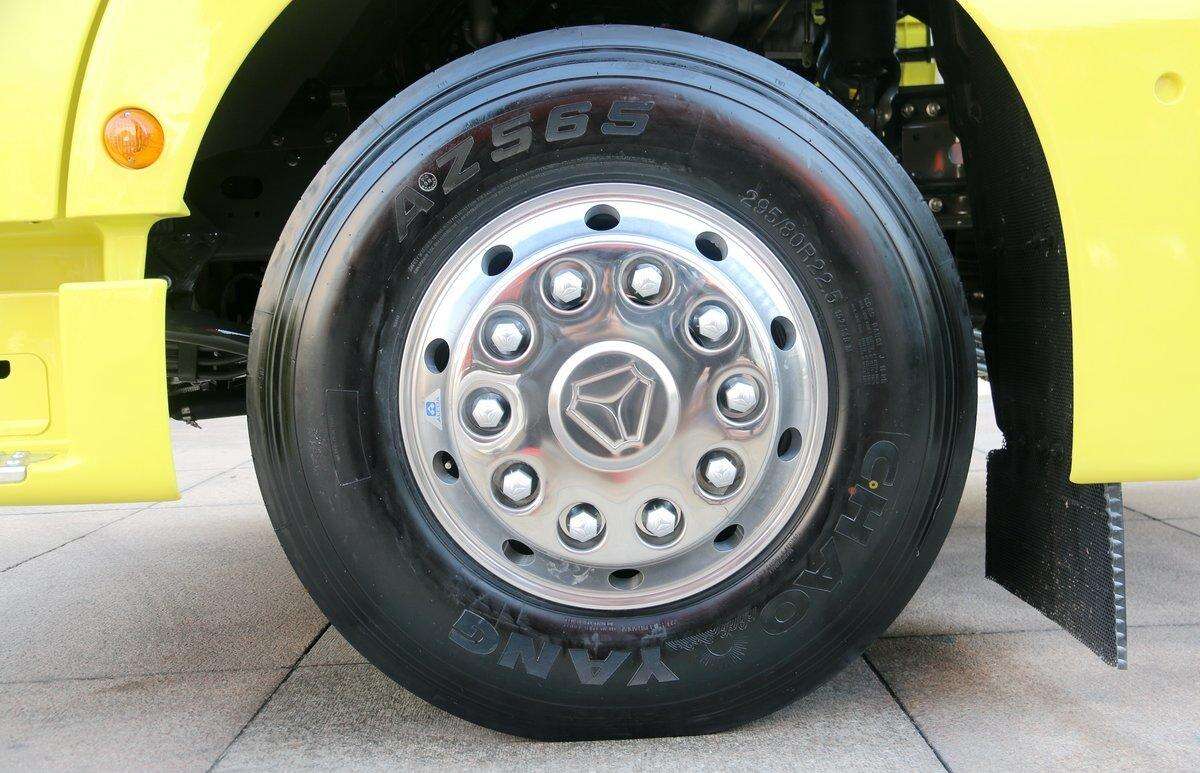

| tire | |||
| Tire Brand: | Chaoyang | Number of tires: | 10 |
| Tire specifications: | 295/80R22.5 | ||
