2/3/4 axles side wall truck semi trailer

2/3/4 axles  side wall truck semi trailer

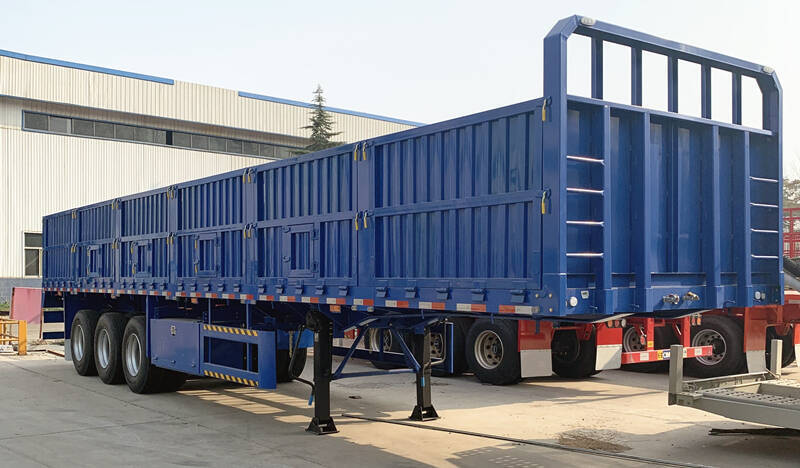

Sidewall Semi Trailer.

The sidewall cargo semi trailer can loads various goods and containers (2 of 20 and/or 1 of 40 feet),since the side wall can be made detachable. The color could be painted as your request, the size and load can be customized according to your requirements. Semi-trailer trucks with railing plate structure design. We have 2/3/4 axles with load capacity of 30/40/60/80/100 tons for your choice. Customizable sidewall height.

We have a wide range of styles

2 Axles	3 Axles	4 Axles
Brand: Vehicle Master	Brand: Vehicle Master	Brand: Vehicle Master
Loading Capacity: 30-60T	Loading Capacity: 30-80T	Loading Capacity: 40-100T
Gooseneck Type: Optional	Gooseneck Type: Optional	Gooseneck Type: Optional
Main Beam
Material: Q345/T700	Main Beam Material: Q345/T700	Main Beam Material: Q345/T700
Upper Plate Thickness: 12mm	Upper Plate Thickness: 16mm	Upper Plate Thickness: 18mm
Middle Plate Thickness: 6mm	Middle Plate Thickness: 10mm	Middle Plate Thickness: 12mm
Lower Plate Thickness: 14mm	Lower Plate Thickness: 18mm	Lower Plate Thickness: 20mm
Main Beam Height: 500mm	Main Beam Height: 500mm	Main Beam Height: 500mm
Product Size
L*W: 13000mm*2550mm	L*W: 13000mm*2550mm	L*W: 13000mm*2550mm
Side Wall Height: 600mm-1700mm	Side Wall Height: 600mm-1700mm	Side Wall Height: 600mm-1700mm
Axle
2 Axles *13 Ton VEHICLE MASTER/FUWA/BPW/Other	3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other	4 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other
Tire
12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/ Bridgestone/Other Brand	12R22.5 (12 Pieces) Linglong/Triangle/Double Coin/ Bridgestone/Other Brand	12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/ Bridgestone/Other Brand
Rim
9.00*22.5 (8 Pieces) Steel/Aluminum	9.0*22.5 (12 Pieces) Steel/Aluminum	9.00*22.5 (16 Pieces) Steel/Aluminum
Leaf Spring
90mm*13mm*10/90mm*16mm*10Pcs	90mm*13mm*10/90mm*16mm*10Pcs	90mm*13mm*10/90mm*16mm*10Pcs
King Pin
#50(2")/#90(3.5"), JOST/Other Brand	#50(2")/#90(3.5"), JOST/Other Brand	#50(2")/#90(3.5"), JOST/Other Brand
Landing Gear
28 Tons Two Speed JOST/Other Brand	28 Tons Two Speed JOST/Other Brand	28 Tons Two Speed JOST/Other Brand
Vehicle Painting
Electrophoresis painting	Electrophoresis painting	Electrophoresis painting

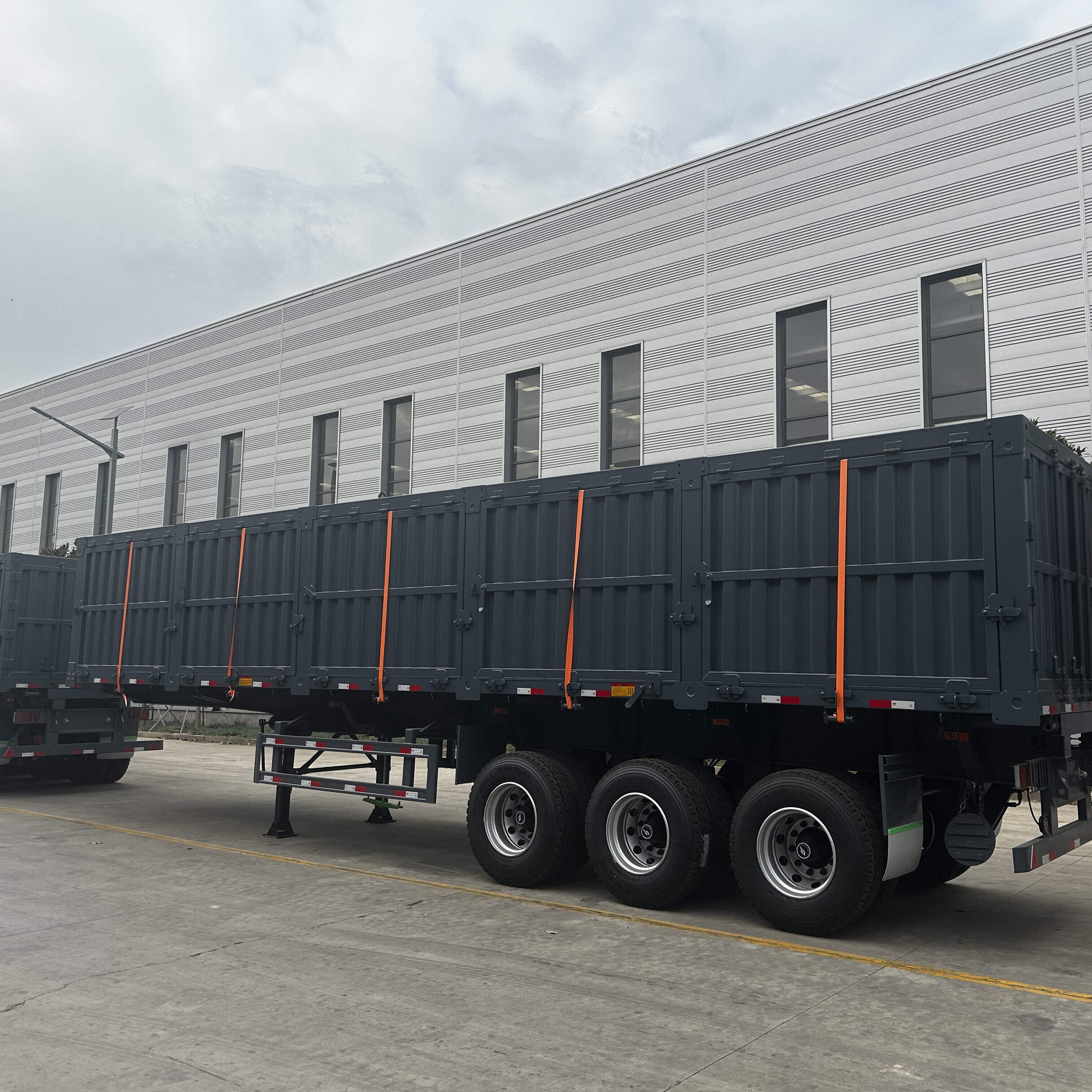

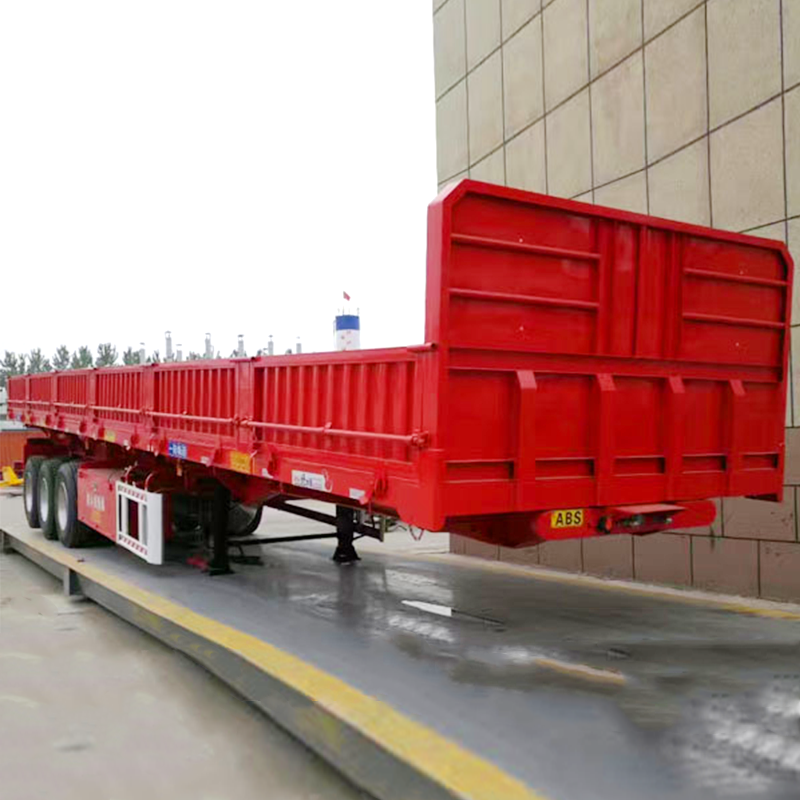

Details Images

40-100 Ton Side Wall Semi-Trailer

The 40-100 Ton Side Wall Semi-Trailer is a versatile and durable transport solution designed for handling a wide range of bulk and general cargo. Equipped with robust side walls, this trailer ensures secure transportation and prevents cargo spillage, making it ideal for industries such as construction, agriculture, and logistics.

Key Features:

1. High Load Capacity:

   • Designed to carry heavy loads ranging from 40 to 100 tons, accommodating diverse transportation needs.

2. Strong and Durable Construction:

   • Built with high-strength steel to provide excellent durability and withstand demanding working conditions.

3. Flexible Side Wall Design:

   • Fixed or detachable side walls provide flexibility for different cargo types, including bulk materials and general goods.

4. Efficient Transportation:

   • Suitable for hauling building materials, coal, grains, fertilizers, and more, ensuring maximum efficiency and minimal spillage.

5. Advanced Axle and Suspension System:

   • Equipped with high-quality axles and suspensions for enhanced stability and smooth operation, even on rough terrain.

6. Customizable Options:

   • Adjustable height of side walls and optional features such as reinforced floors or additional lashing points to meet specific transport requirements.

7. Compliance and Certification:

   • Manufactured in compliance with ISO 9000 and certified under China’s 3C standards, ensuring quality and reliability.

Applications:

• Construction Industry: Transporting sand, gravel, bricks, and other heavy materials.
• Agriculture: Hauling grains, crops, and fertilizers.
• Industrial Use: Moving coal, steel coils, and other industrial materials.

The 40-100 Ton Side Wall Semi-Trailer combines strength, flexibility, and efficiency, making it the ideal choice for heavy-duty transport tasks. Designed to perform in tough environments, it ensures reliable operation, high load capacity, and long-term durability.
