asic Information
|
|||
|
Announcement model:
|
ZZ3317V326GF1
|
Drive form:
|
8X4
|
|
Wheelbase:
|
1950+3225+1350mm
|
engine:
|
Sinotruk MC11.44-60
|
|
Gearbox:
|
SINOTRUK HW25712XSL
|
Rear axle speed ratio:
|
5.26
|
|
Body length:
|
9.58 meters
|
Body width:
|
2.55 meters
|
|
Body height:
|
3.55 meters
|
Front track:
|
2022/2022mm
|
|
Rear wheelbase:
|
1860/1860mm
|
Vehicle weight:
|
15.5 tons
|
|
Rated load:
|
15.37 tons
|
Total mass:
|
31 tons
|
|
Tonnage level:
|
Heavy Truck
|
Approach angle:
|
17 degrees
|
|
Departure angle:
|
21 degrees
|
Origin:
|
Shandong Jinan
|
|
Market segments:
|
Urban construction debris
|
Fuel type:
|
diesel fuel
|
|
Engine parameters
|
|||
|
engine model:
|
Sinotruk MC11.44-60
|
Engine brand:
|
SINOTRUK
|
|
Number of cylinders:
|
6 cylinder
|
Fuel type:
|
diesel fuel
|
|
Displacement:
|
10.518L
|
Emission Standards:
|
National VI
|
|
Maximum horsepower:
|
440 HP
|
Maximum output power:
|
324kW
|
|
Maximum torque:
|
2100Nm
|
Maximum torque speed:
|
1000-1400rpm
|
|
Rated speed:
|
1900rpm
|
Engine form:
|
High voltage common rail+EGR+SCR
|
|
Carton parameters
|
|||
|
Carton length:
|
6.5 meters
|
Cargo box width:
|
2.35 meters
|
|
Cargo box height:
|
1.5 m
|
Container form:
|
Self-unloading
|
|

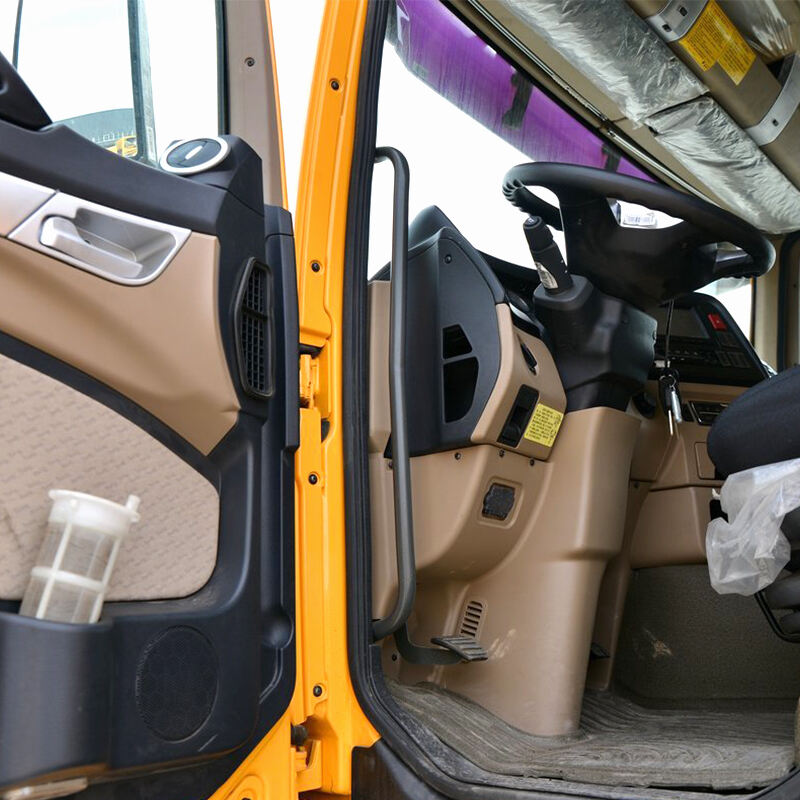

Cab parameters
|
|||
|

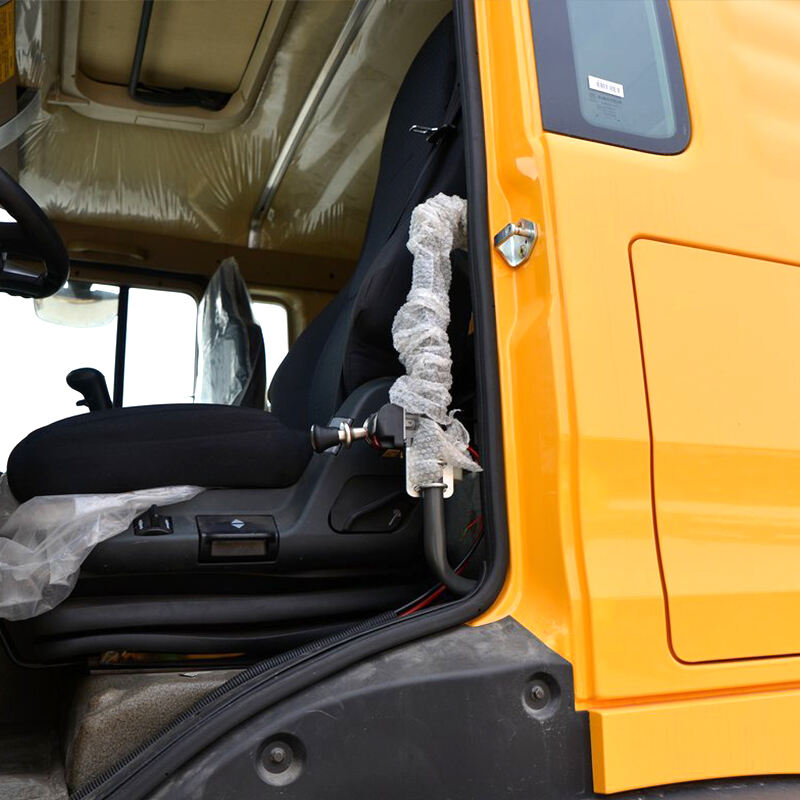

Driver's seat form:
|
Airbag shock-absorbing seat
|
||
|
Gearbox parameters
|
|||
|
Gearbox model:
|
SINOTRUK HW25712XSL
|
Gearbox brand:
|
SINOTRUK
|
|
Forward gear:
|
12 gears
|
Number of fallen boxes:
|
2
|
|
Tank
|
|||
|
Fuel tank material:
|
Aluminum alloy
|
Fuel tank capacity:
|
400L
|
|

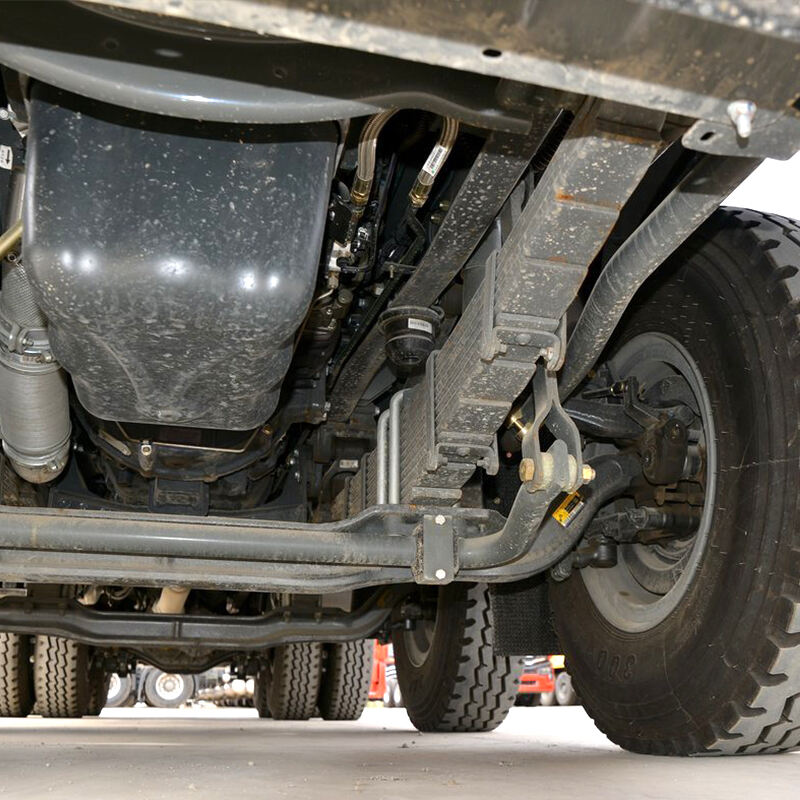

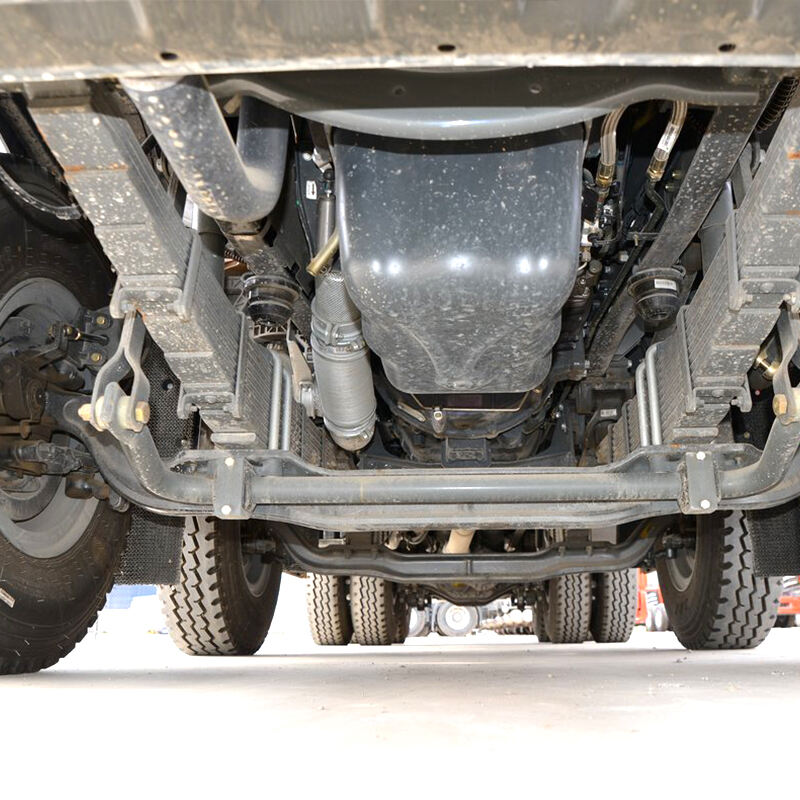

Chassis parameters
|
|||
|
Allowable load on front axle:
|
6500/7000kg
|
Allowable load on rear axle:
|
17500(two-axle group)kg
|
|
Number of spring leaves:
|
4/4/12,11/11/12
|
||
|
Tire
|
|||
|
Tire specifications:
|
12.00R20
|
Number of tires:
|
12
|
