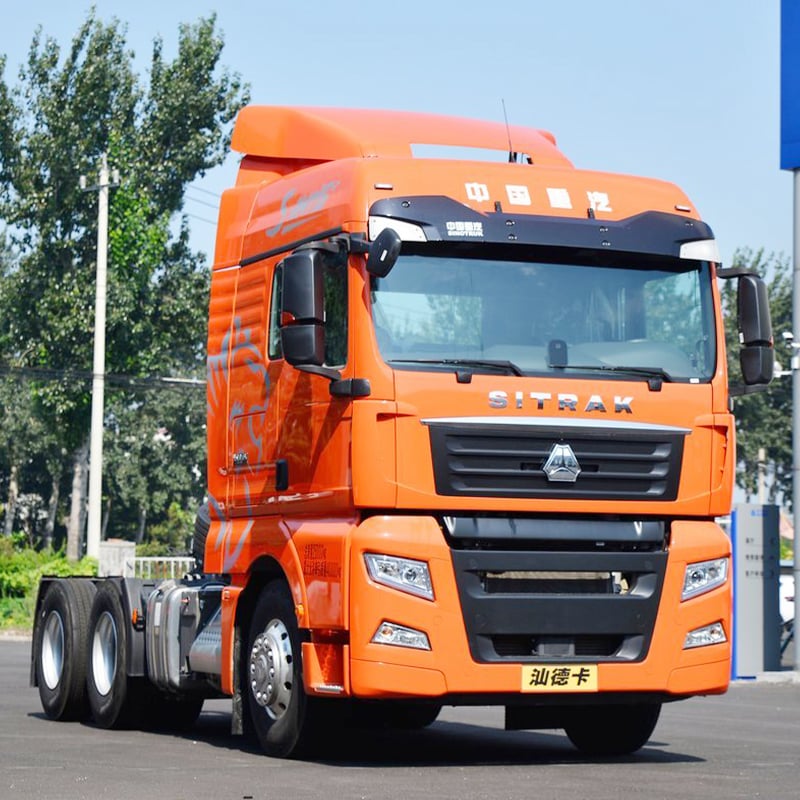

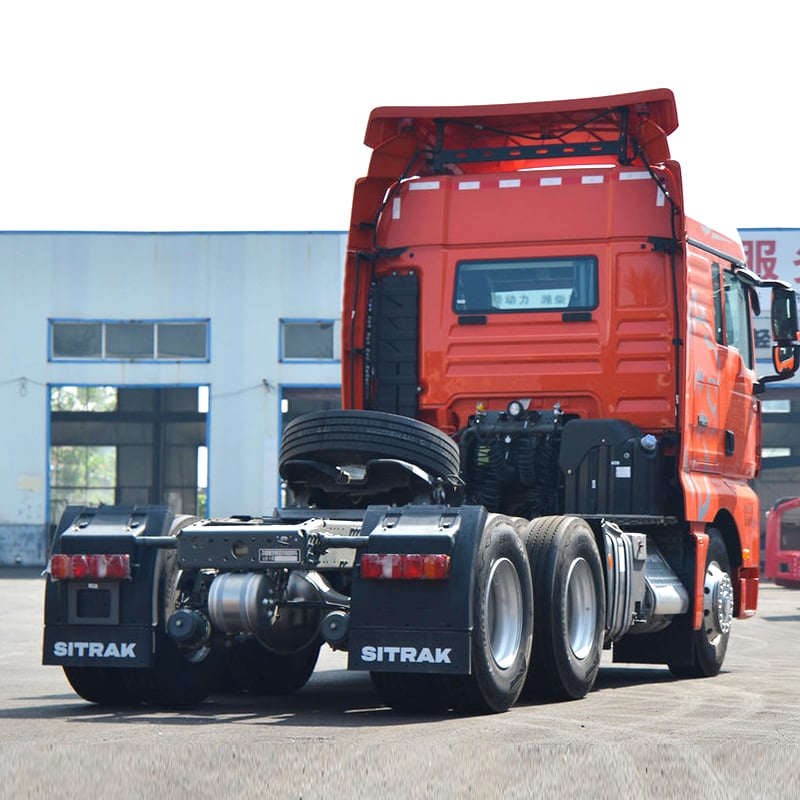

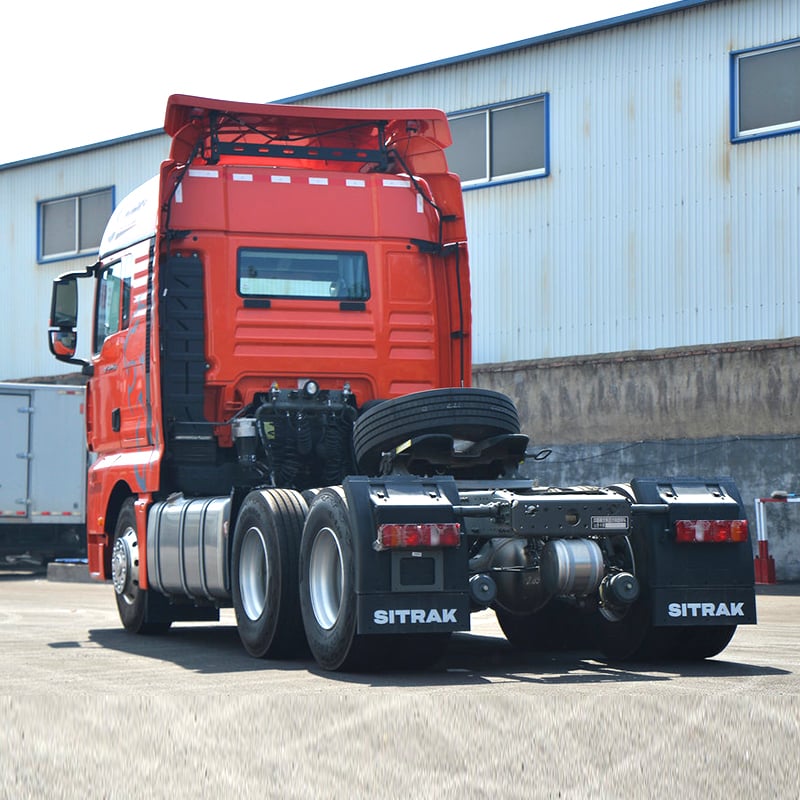

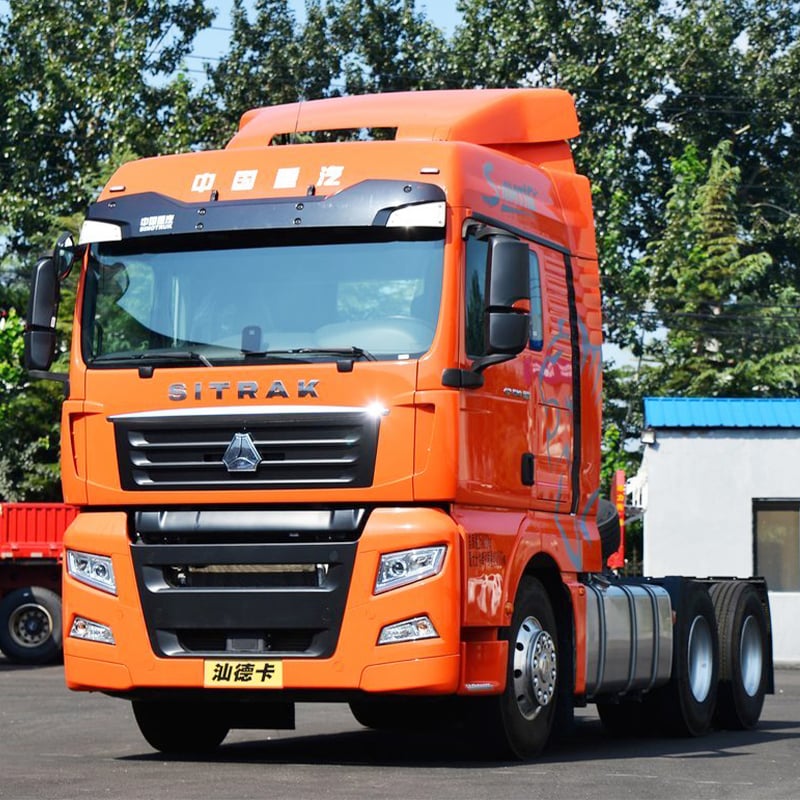

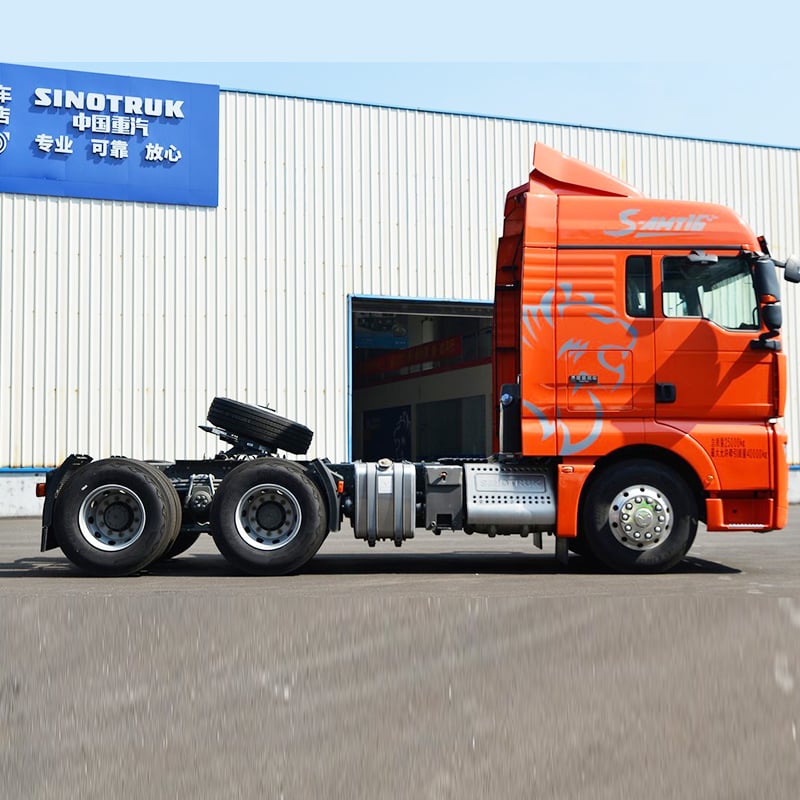

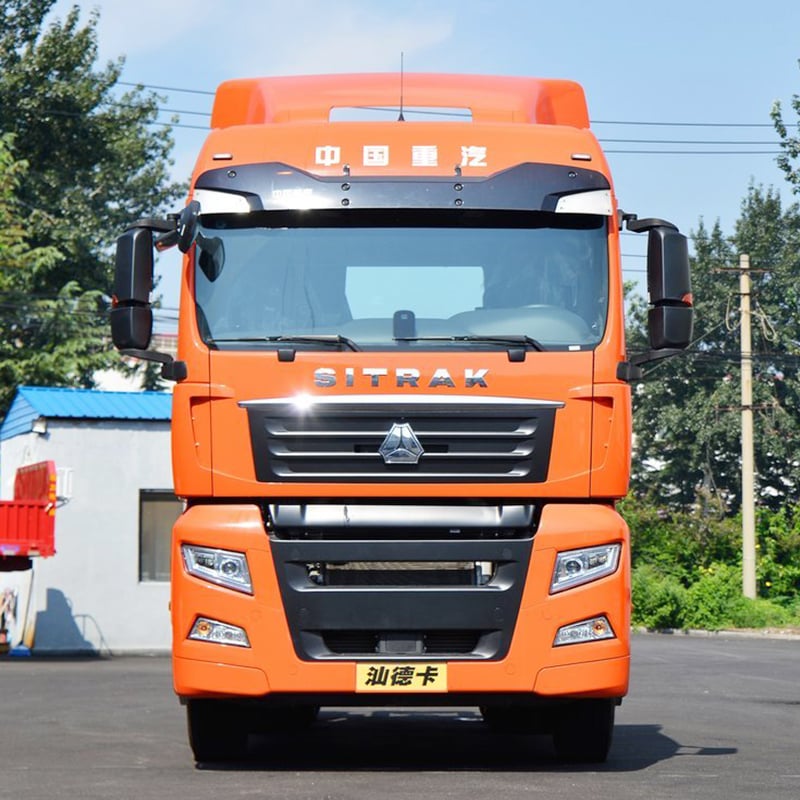

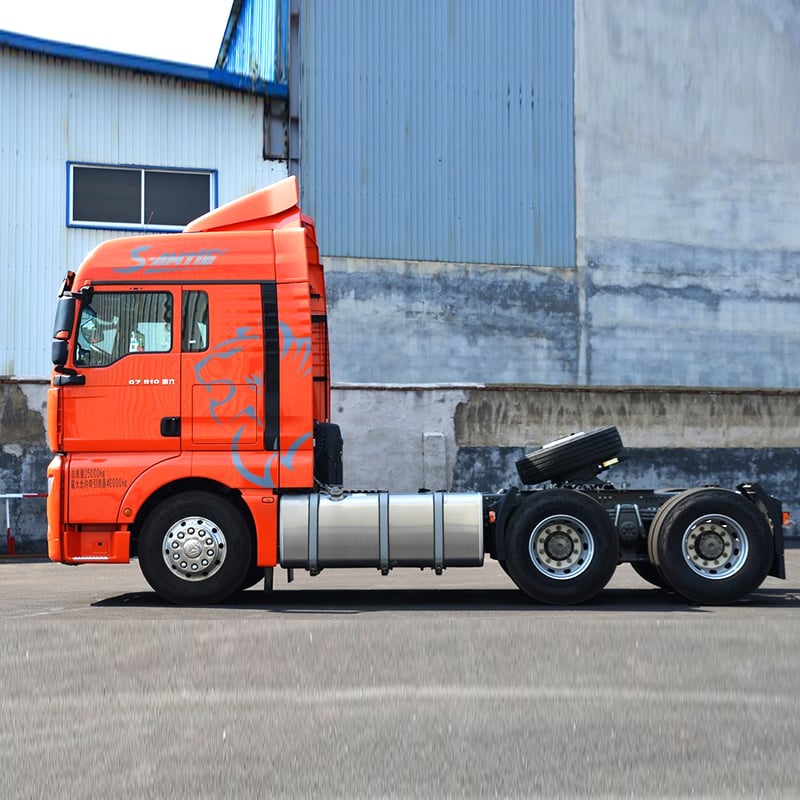

SITRAK G7 510 Tractor Truck

Introduction

Introduction


Basic Information
Driving license:	A2	Announcement Model:	ZZ4256W324HF1B
Drive type:	6X4	Wheelbase:	3400+1400mm
engine:	Sinotruk MC13H.51-61	Gearbox:	Sinotruk HW25716XAL
Rear axle ratio:	2.71	Body length:	7.125 m
Body width:	2.55 m	Ride height:	3.845 m
Front track:	2041mm	Rear track:	1830/1830mm
Vehicle weight:	9.3 tons	Total mass:	25 tons
Total traction mass:	39.5 tons	Maximum speed:	89km/h
Origin:	Zhangqiu, Shandong	Tonnage level:	Heavy Truck
Remark:	The speed ratio can be selected as 2.85/3.08/3.36/3.7/4.11.	Fuel Type:	diesel fuel
Engine parameters
Engine Model:	Sinotruk MC13H.51-61	Engine Brand:	Sinotruk
Number of cylinders:	6 cylinders	Fuel Type:	diesel fuel
Cylinder arrangement:	In-line	Displacement:	13.02L
Emission standards:	National VI	Maximum horsepower:	510 hp
Maximum output power:	378kW
Cab parameters
Cab:	High Top	Number of passengers allowed:	2 people
Number of Seat Rows:	Half row
Gearbox parameters
Gearbox Model:	Sinotruk HW25716XAL	Gearbox brand:	Sinotruk
Shifting method:	AMT	Forward gears:	16 levels
Reverse gear number:	2
tank
Fuel tank capacity:	860+240L
Chassis parameters
Front axle description:	7.1 ton disc front axle	Rear Axle Description:	MAN 12 ton drum/disc rear axle
Permissible load on front axle:	7000kg	Permissible load on rear axle:	18000(two-axle group)kg
Speed ratio:	2.71	Number of springs:	2/3,2/4
Saddle:	50#
tire
Number of tires:	10	Tire specifications:	12R22.5 18PR,12.00R20 16PR
Tire type:	Low rolling resistance
Control configuration
ABS anti-lock braking system:	●	Vehicle stability system:	●
External Configuration
Air deflector:	●	Aluminum alloy gas tank:	●
Internal Configuration
Multifunction steering wheel:	●	Air conditioning adjustment form:	automatic
Power windows:	●	Electric rearview mirror:	●
Electric heating of rearview mirror:	●
Multimedia Configuration
Large color screen on the center console:	●
Braking
Front wheel brake:	Disc brake	Rear brake:	Drum brake
