| Basic Information | |||
| Driving license: | A2 | Announcement Model: | ZZ4256V25CHD1B/U7GB-T |
| Drive type: | 6X2 | Wheelbase: | 1795+2500mm |
| engine: | Sinotruk MC11.44-40 | Gearbox: | 16-speed transmission |
| Rear axle ratio: | 3.08 | Body length: | 6.885m |
| Body width: | 2.496 m | Ride height: | 3.41 m |
| Front track: | 2022/2022mm | Rear track: | 1816mm |
| Vehicle weight: | 7.4 tons | Total mass: | 25 tons |
| Total traction mass: | 38.4 tons | Maximum speed: | 101km/h |
| Origin: | Zhangqiu, Shandong | Tonnage level: | Heavy Truck |
| Remark: | Smart Pass A version, rear window + door sunshade + full surround curtain + sleeper curtain; brake system: German WABCO brake system, German Volkswagen VOSS connector, spiral cable; intake system: German MAN N+HUMMEL air filter; optional speed ratio: 3.36/3.7 | Fuel Type: | diesel fuel |
| Engine parameters | |||
| Engine Model: | Sinotruk MC11.44-40 | Engine Brand: | Sinotruk |
| Number of cylinders: | 6 cylinders | Fuel Type: | diesel fuel |
| Cylinder arrangement: | In-line | Displacement: | 10.518L |
| Emission standards: | National Four | Maximum horsepower: | 440 hp |
| Maximum output power: | 324kW | Maximum Torque: | 2100N m |
| Maximum torque speed: | 1000-1400rpm | Rated speed: | 1900rpm |

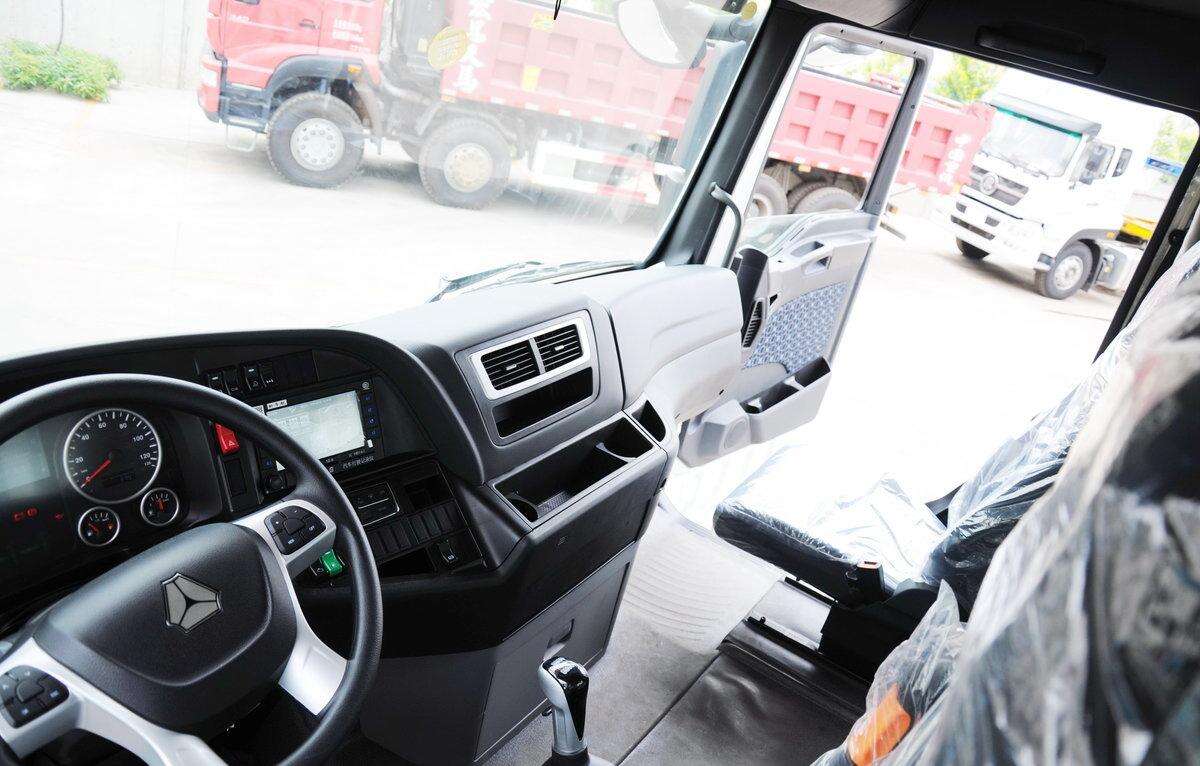

| Cab parameters | |||
| Cab: | High Top | Cab suspension: | Four-point mechanical suspension |
| Lower berth width: | 800mm | Number of passengers allowed: | 3 people |
| Number of Seat Rows: | Half row | Cab lift: | Manual |

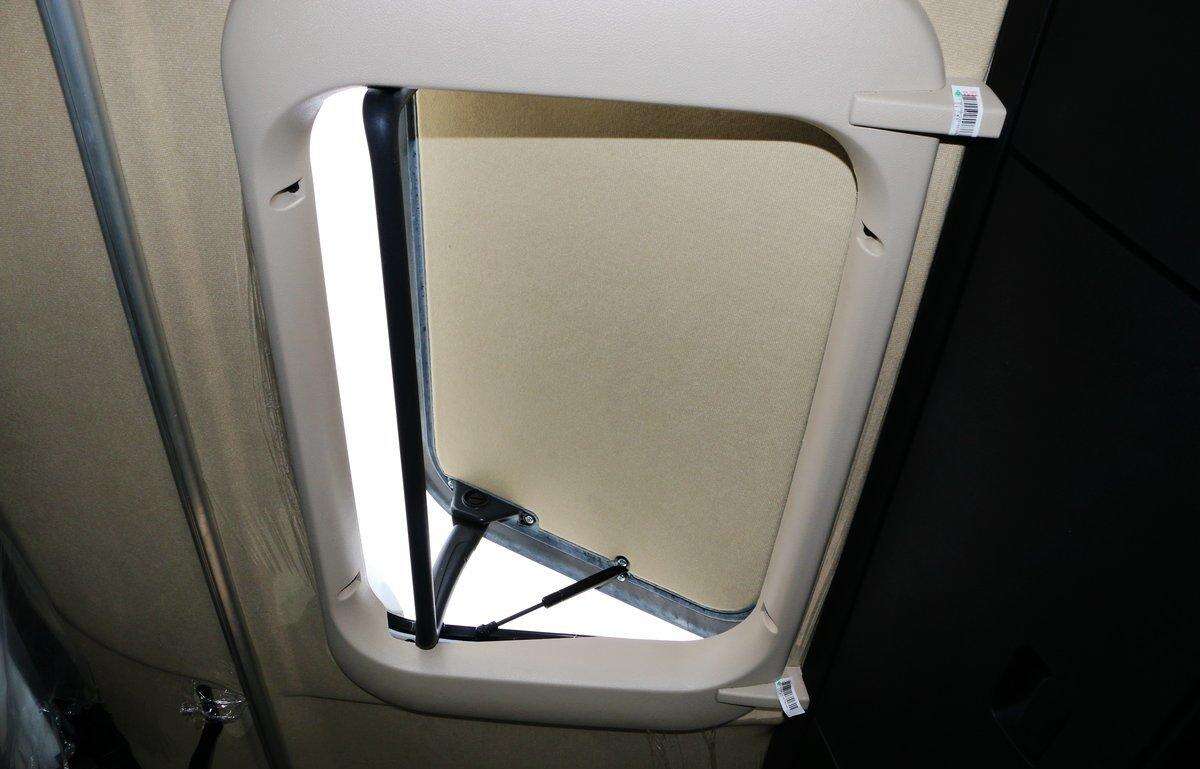

| Driver's seat type: | Airbag shock absorbing seat | Skylight: | Manual sunroof |
| Gearbox parameters | |||

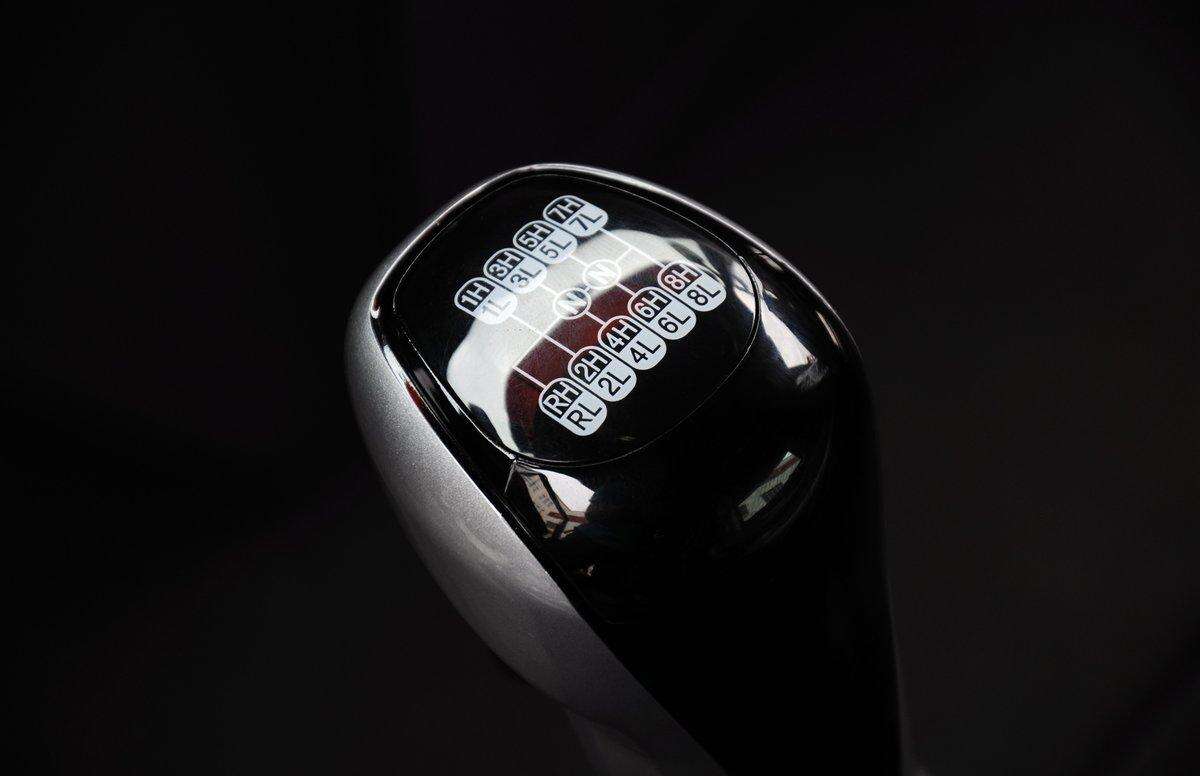

| Gearbox Model: | 16-speed gearbox | Shifting method: | Manual |
| Forward gears: | 16 levels | Reverse gear number: | 2 |
| Shell Material: | Aluminum Alloy | ||
| tank | |||
| Fuel tank/gas tank material: | Aluminum Alloy | Fuel tank capacity: | 400L |
| Chassis parameters | |||
| Front axle description: | MAN 6 ton front axle | Rear Axle Description: | MCY13 German MAN 13 tons |
| Permissible load on front axle: | 6500/7000kg | Permissible load on rear axle: | 11500kg |
| Speed atio: | 3.08 | Suspension type: | Leaf spring |
| Number of springs: | 2003/3/5 | clutch: | 430 |
| Saddle: | 90# King Kong Saddle | ||
| tire | |||
| Number of tires: | 8 | Tire specifications: | 295/80R22.5 |
| External Configuration | |||
| Air deflector: | font> | Side skirts: | font> |
| Internal Configuration | |||

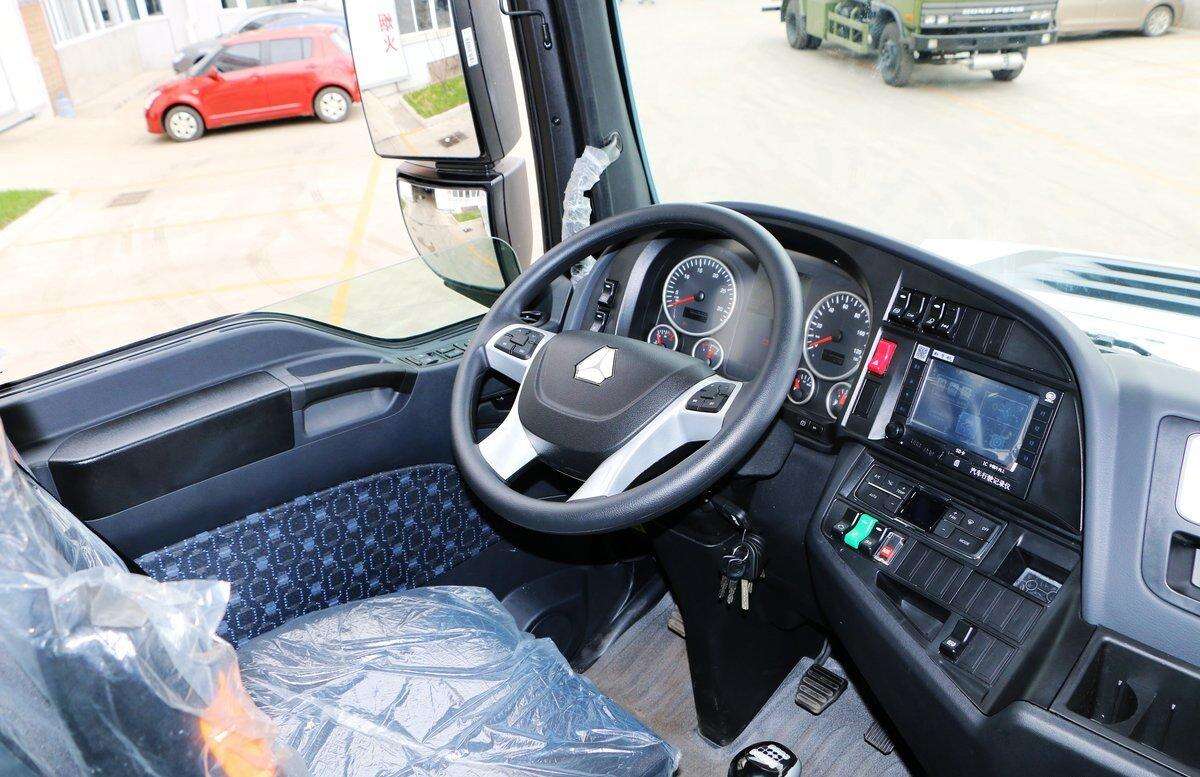

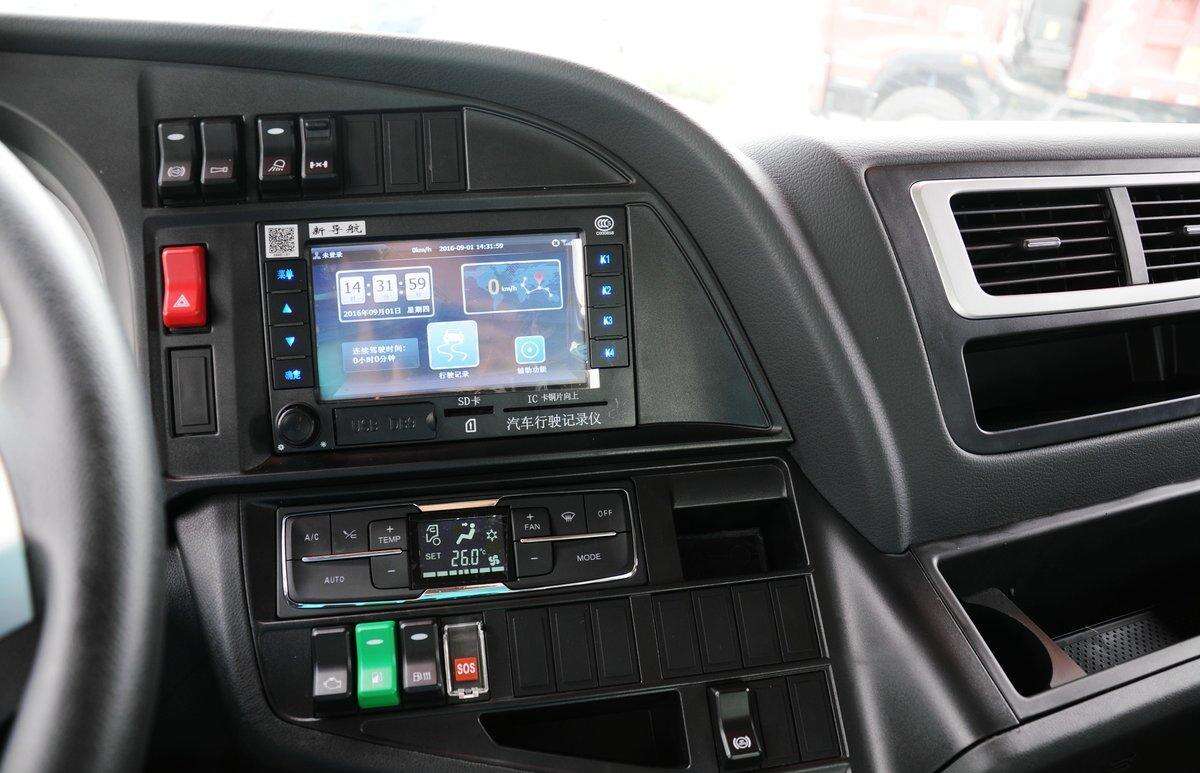

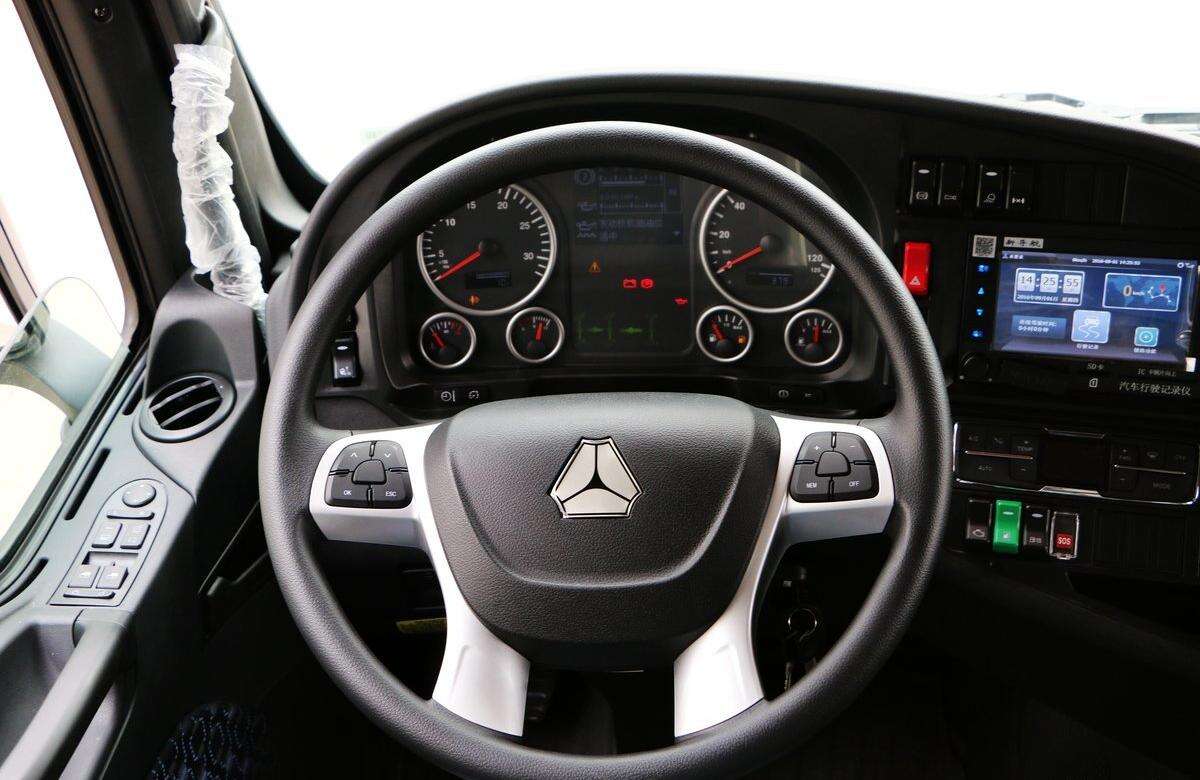

| Multifunction steering wheel: | font | Air conditioning adjustment form: | Manual |
