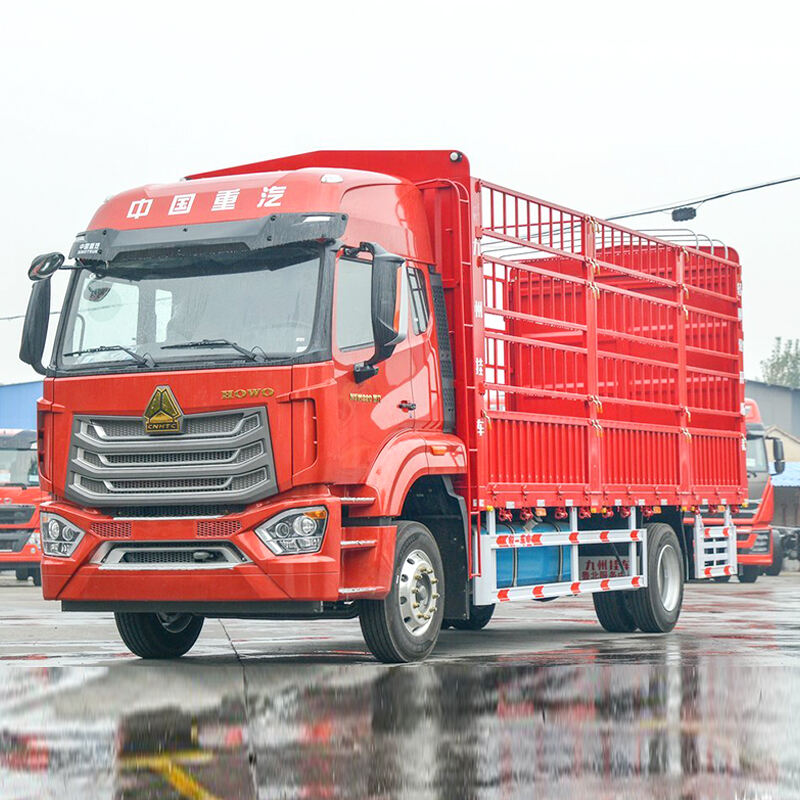

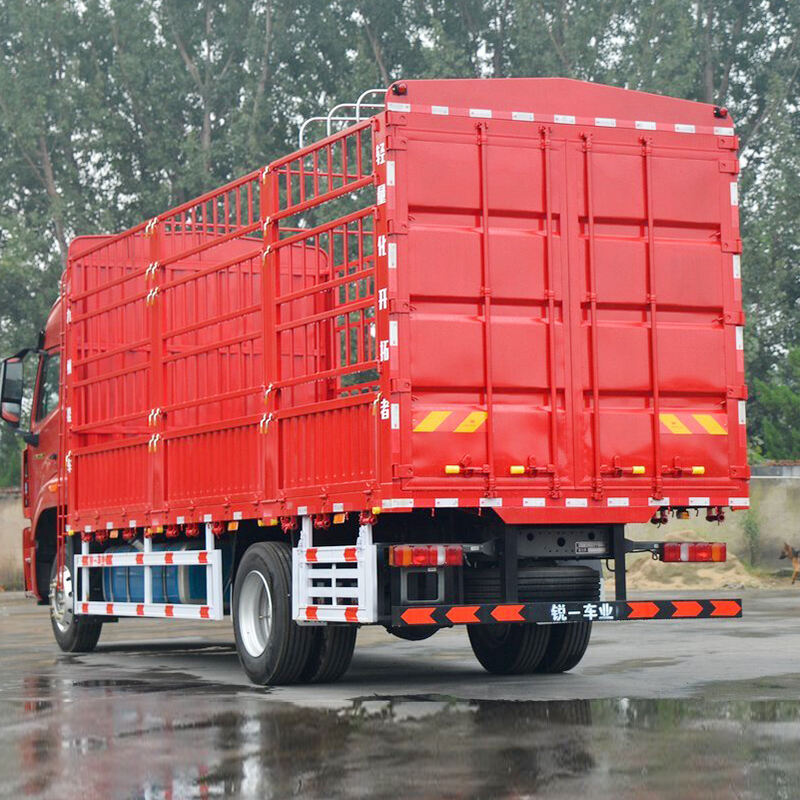

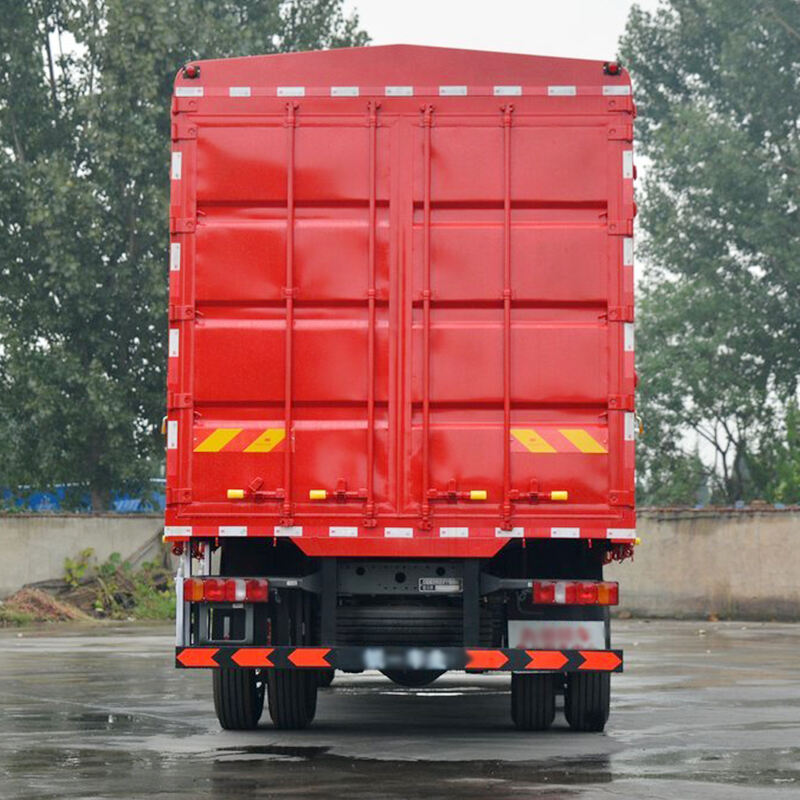

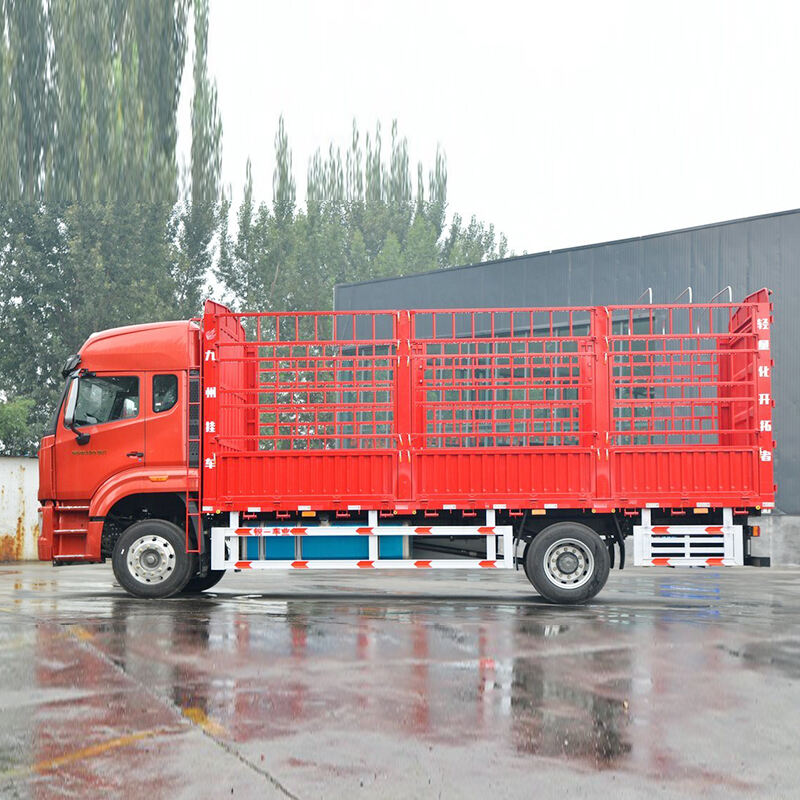

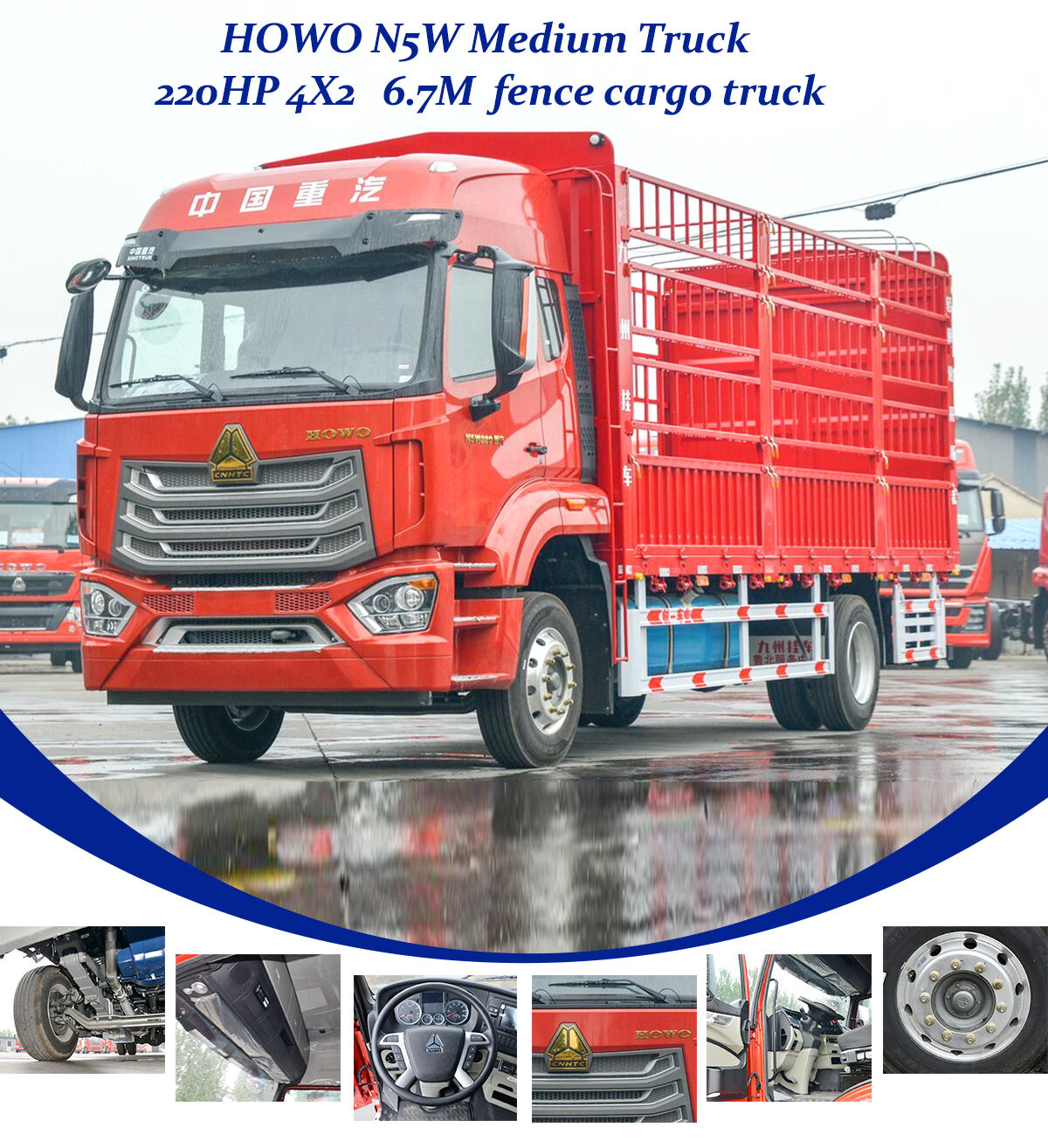

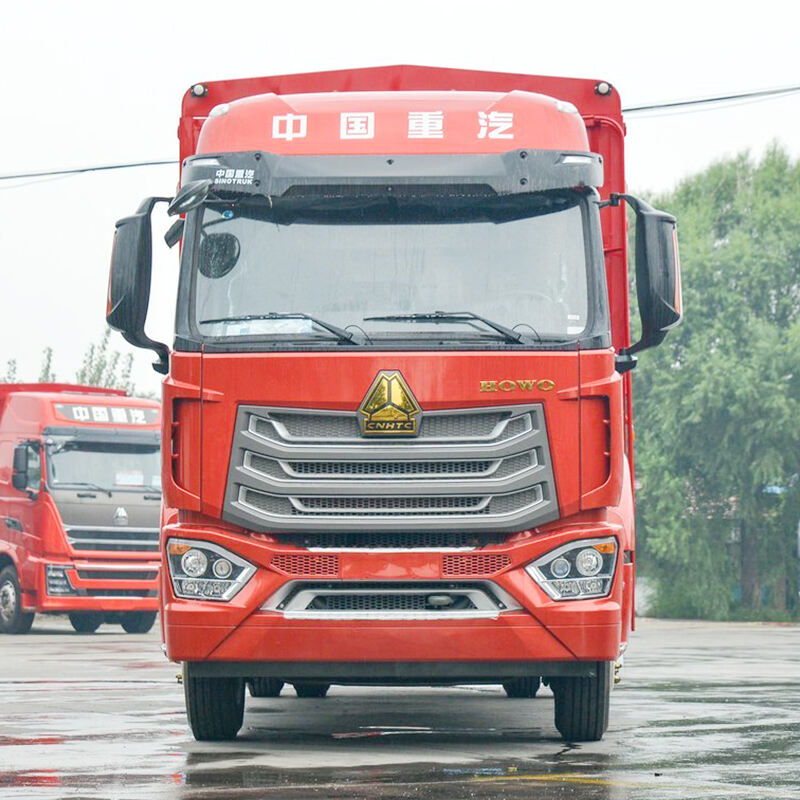

HOWO 6.7m fence cargo truck

Introduction

Introduction


主图-1(78495617ae).jpg 主图-2(24a2440382).jpg 主图-6(a96fe65ad6).jpg 主图-5(e2c7503cde).jpg 主图-8(a40117e53d).jpg 主图-4(18bf6be1b0).jpg

Basic Information
Announcement Model:	ZZ5187CCYK511JF1B	type:	Saddle Truck
Drive type:	4X2	Wheelbase:	5100mm
Box length level:	6.7 m	engine:	Weichai WP4.6NQ220E61
Gearbox:	Sinotruk 8-speed	Rear axle ratio:	4.33
Body length:	9 meters	Body width:	2.55 m
Ride height:	3.78 m	Front track:	1955mm
Rear track:	1830mm	Vehicle weight:	7.15 tons
Rated load:	10.72 tons	Total mass:	18 tons
Maximum speed:	102KM/h	Origin:	Jining, Shandong
Tonnage level:	Medium Card	Driving license:	A1,A2,B2
Approach Angle:	17 degrees	Departure angle:	13 degrees
Market Segments:	Agricultural and sideline products transportation, Green Pass	Front overhang/rear overhang:	1.55/2.35 m
Fuel Type:	diesel fuel
Engine parameters
Engine Model:	Weichai WP4.6NQ220E61	Engine Brand:	Weichai
Engine common name:	Weichai WP4.6	Number of cylinders:	4 cylinders
Fuel Type:	diesel fuel	Cylinder arrangement:	In-line
Displacement:	4.58L	Emission standards:	National VI
Maximum output power:	162kw	Maximum horsepower:	220 hp
Maximum Torque:	800Nm	Maximum torque speed:	1200-1800RPM
Rated speed:	2300RPM	Engine Type:	Four valves, high pressure common rail, turbocharged intercooler, EGR+DPF+DOC+SCR

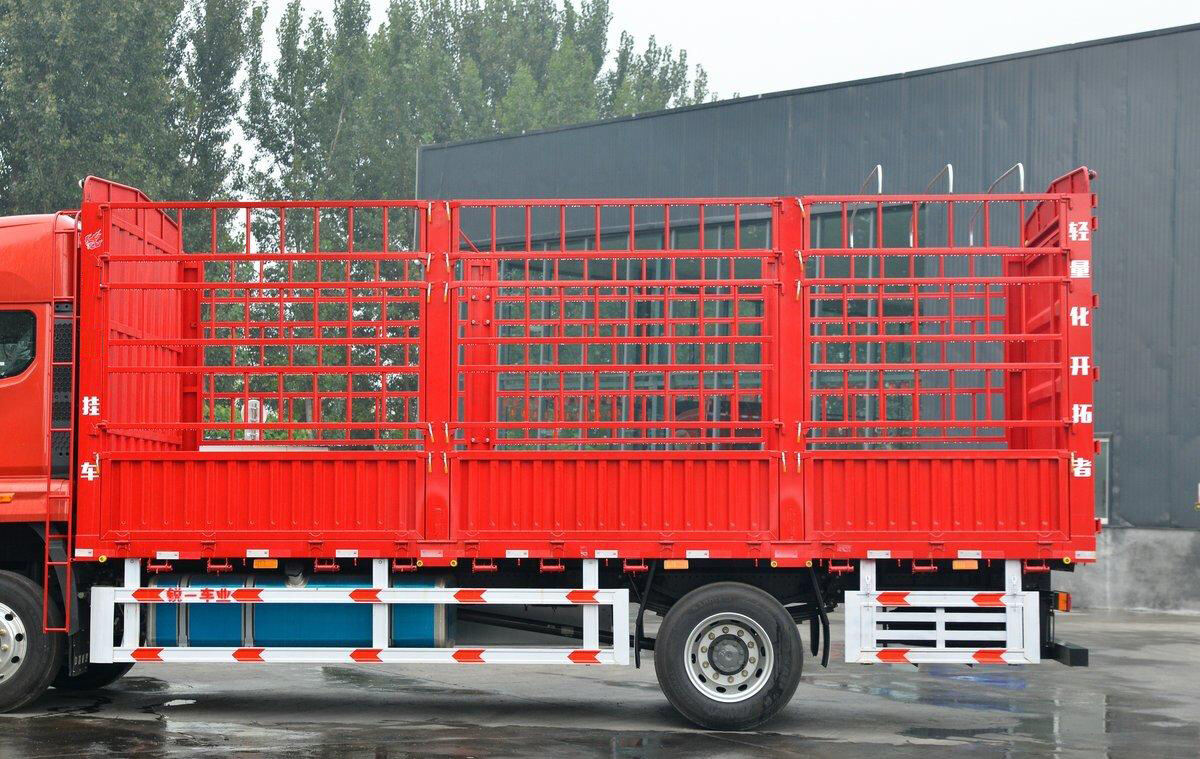

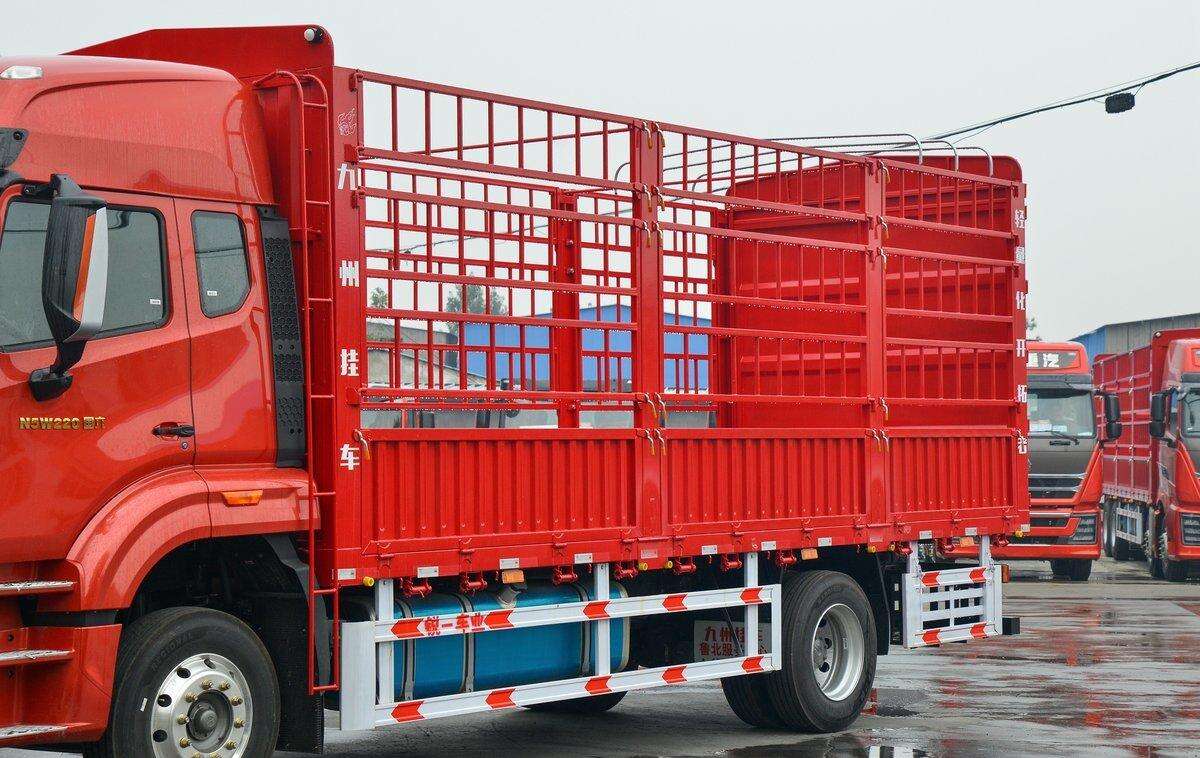

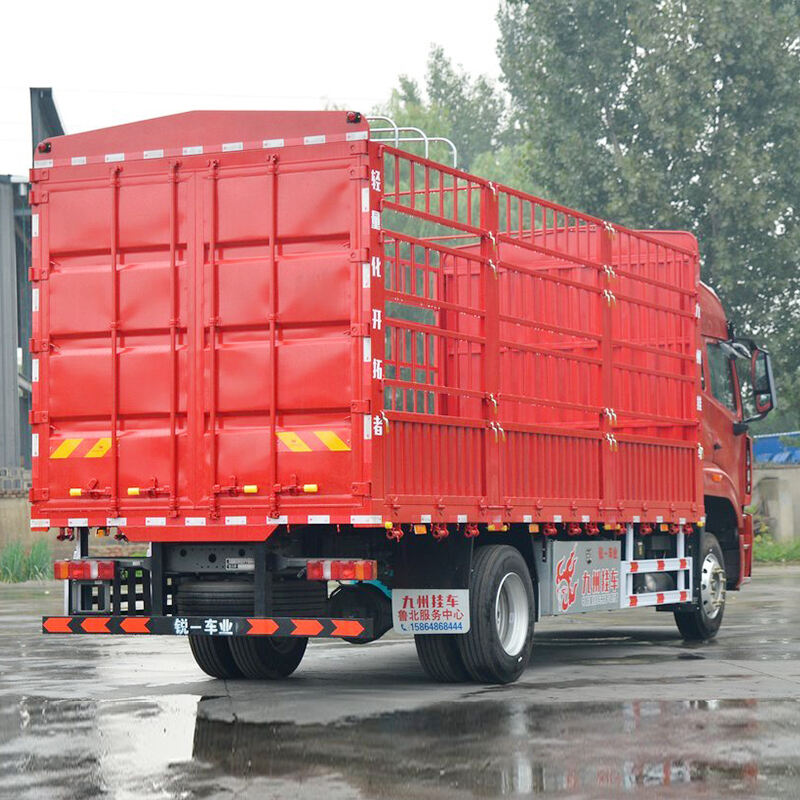

Cargo box parameters
Cargo box form:	Barn type	Length of cargo box:	6.7 m
Cargo box width:	2.46 m

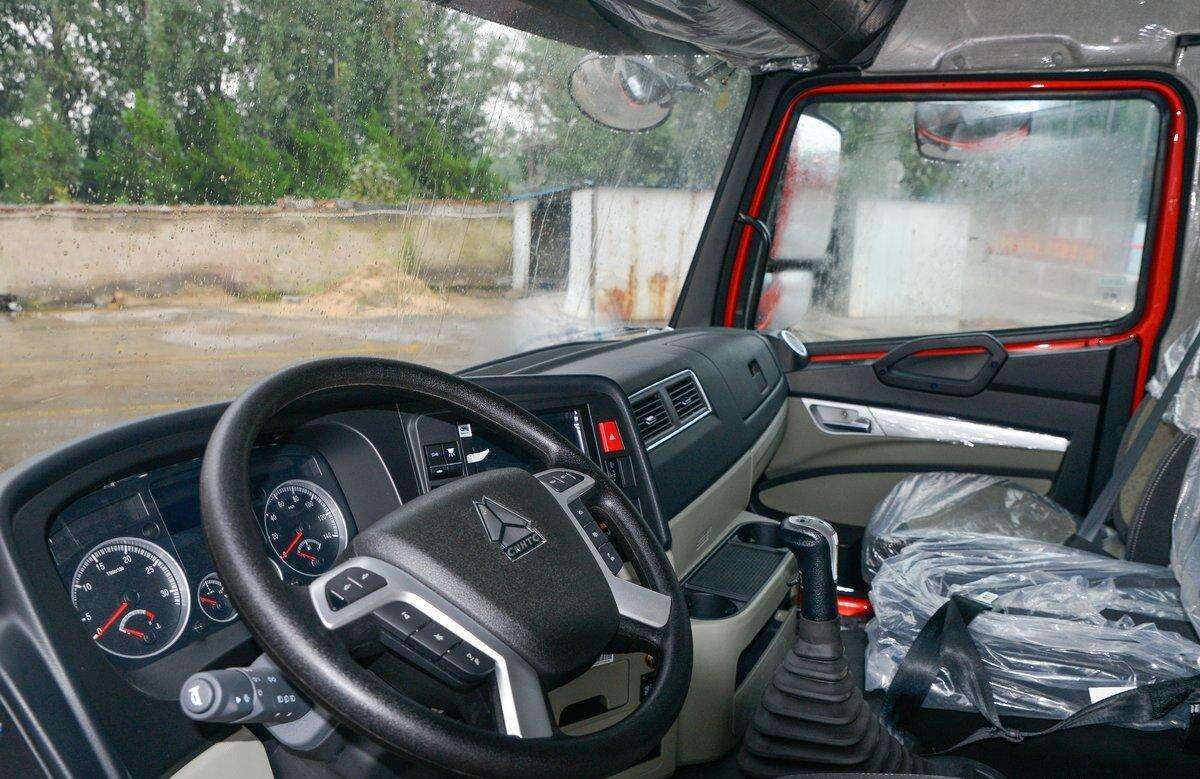

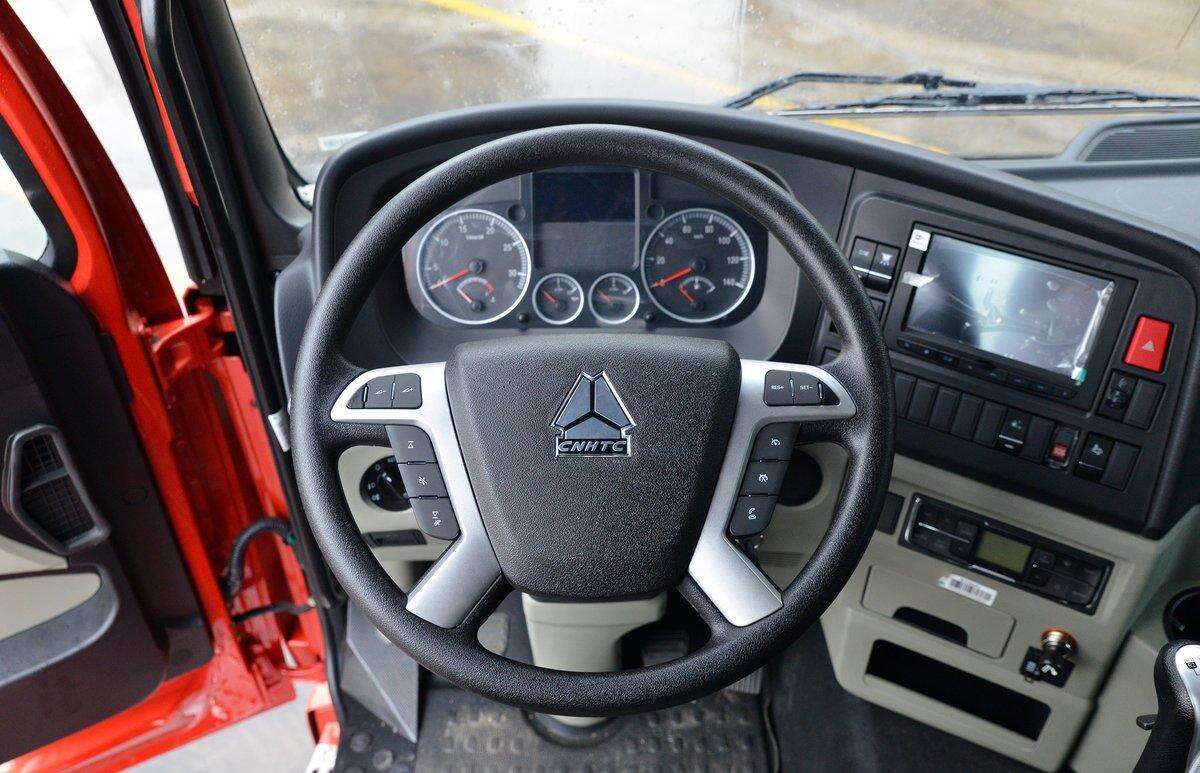

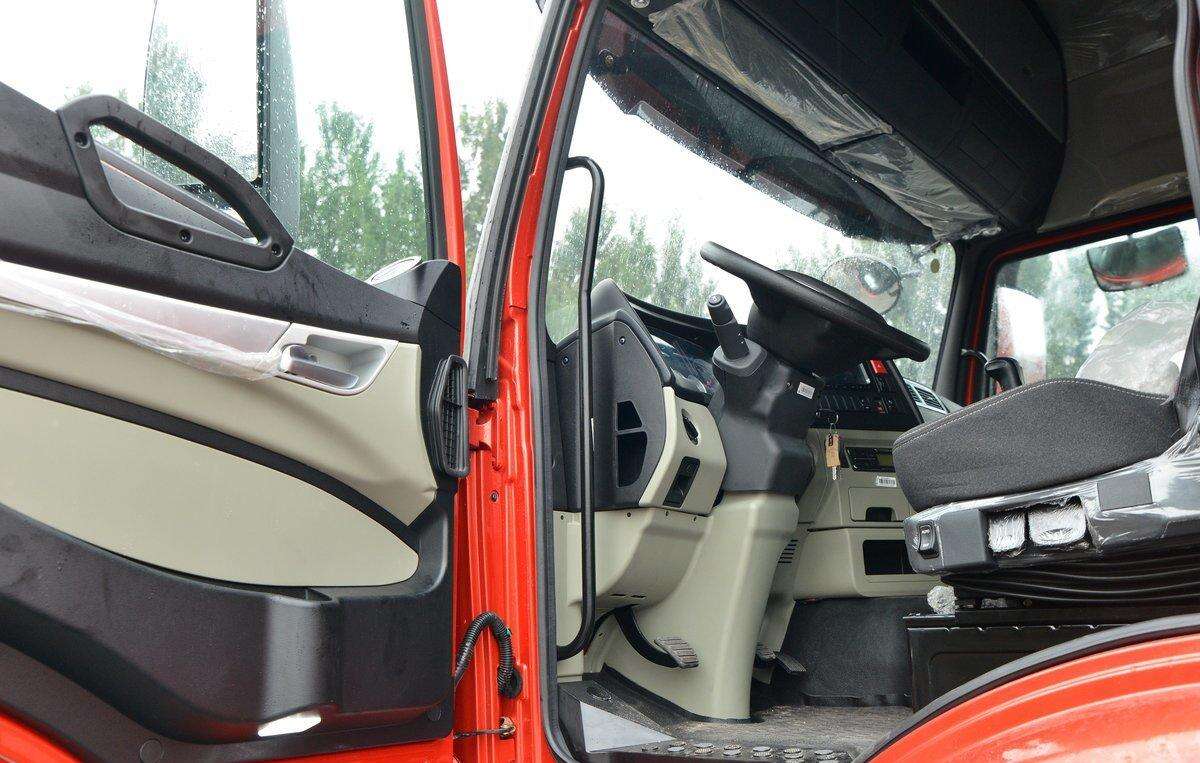

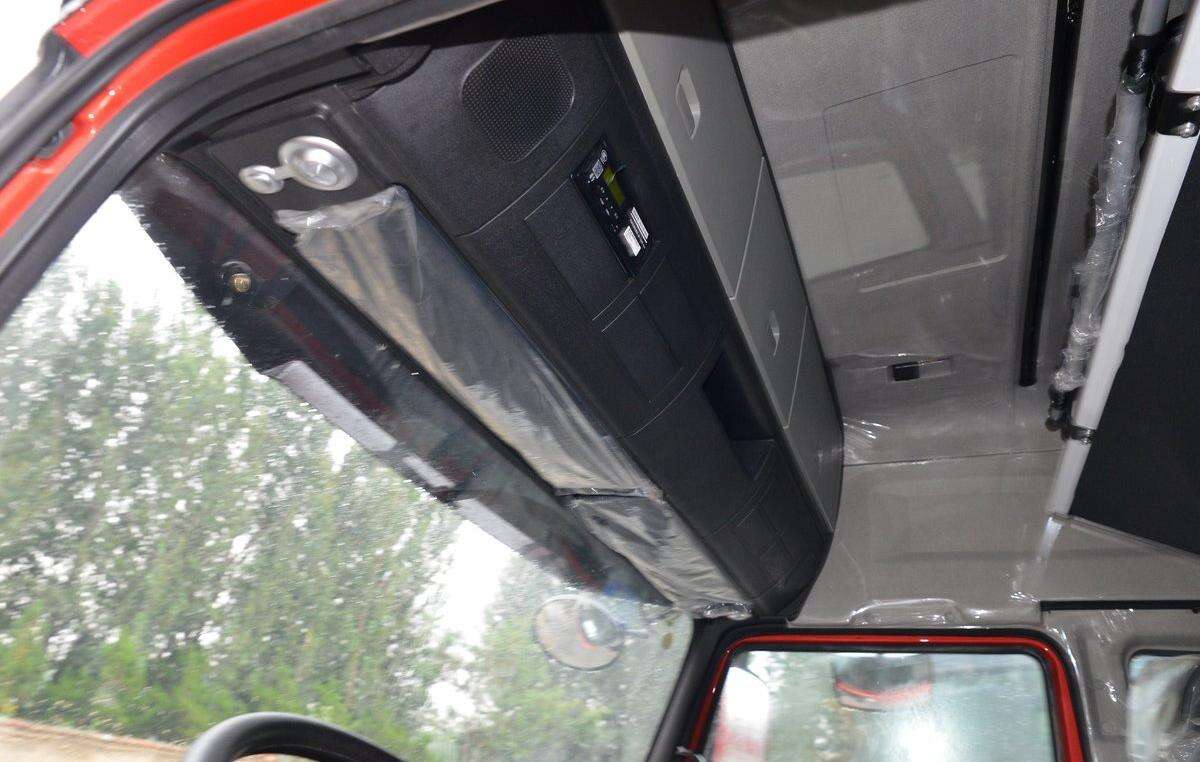

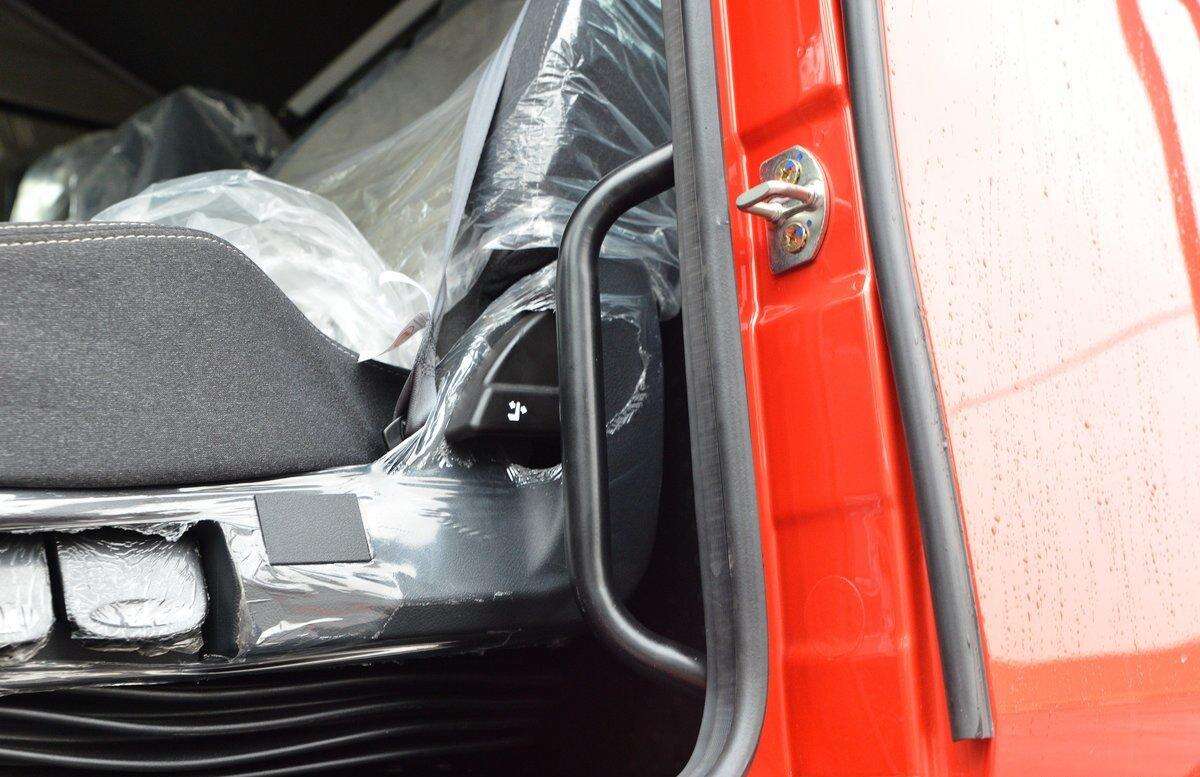

Cab parameters

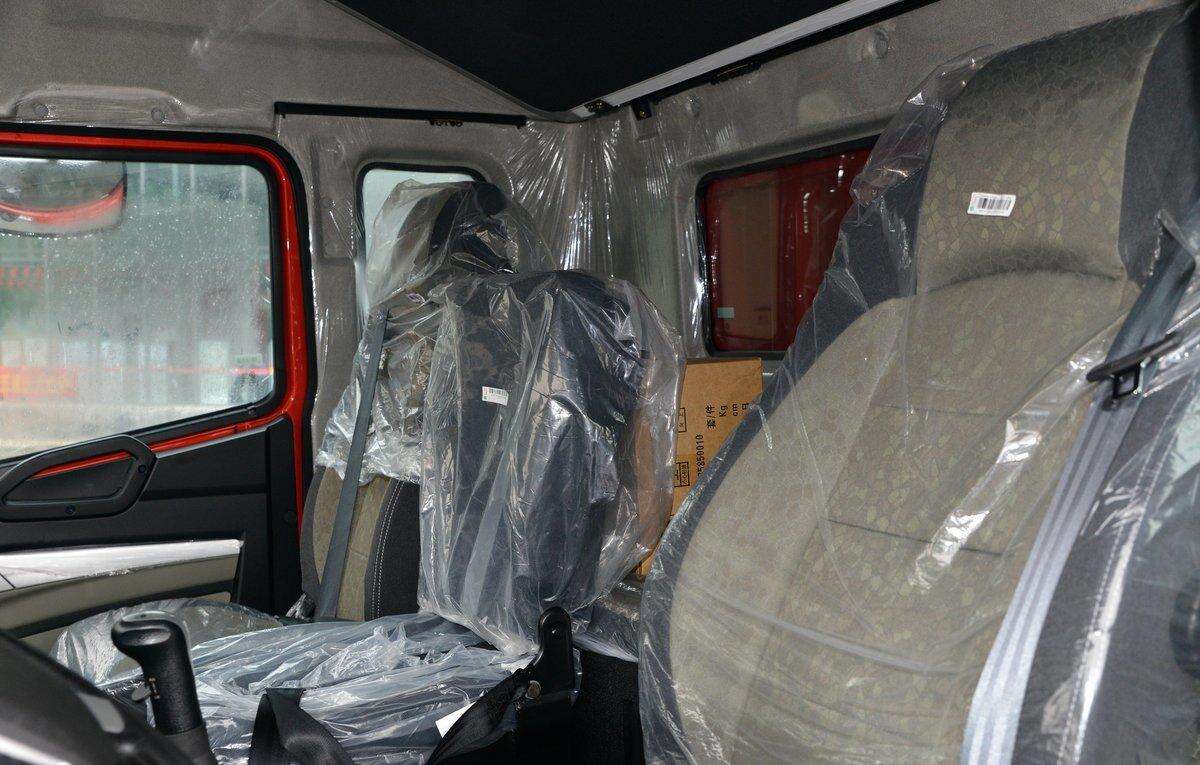

Number of passengers allowed:	3 people	Number of Seat Rows:	Half row
Gearbox parameters
Gearbox Model:	Sinotruk 8-speed	Gearbox brand:	Sinotruk
Shifting method:	Manual	Forward gears:	8 gears
Reverse gear number:	2

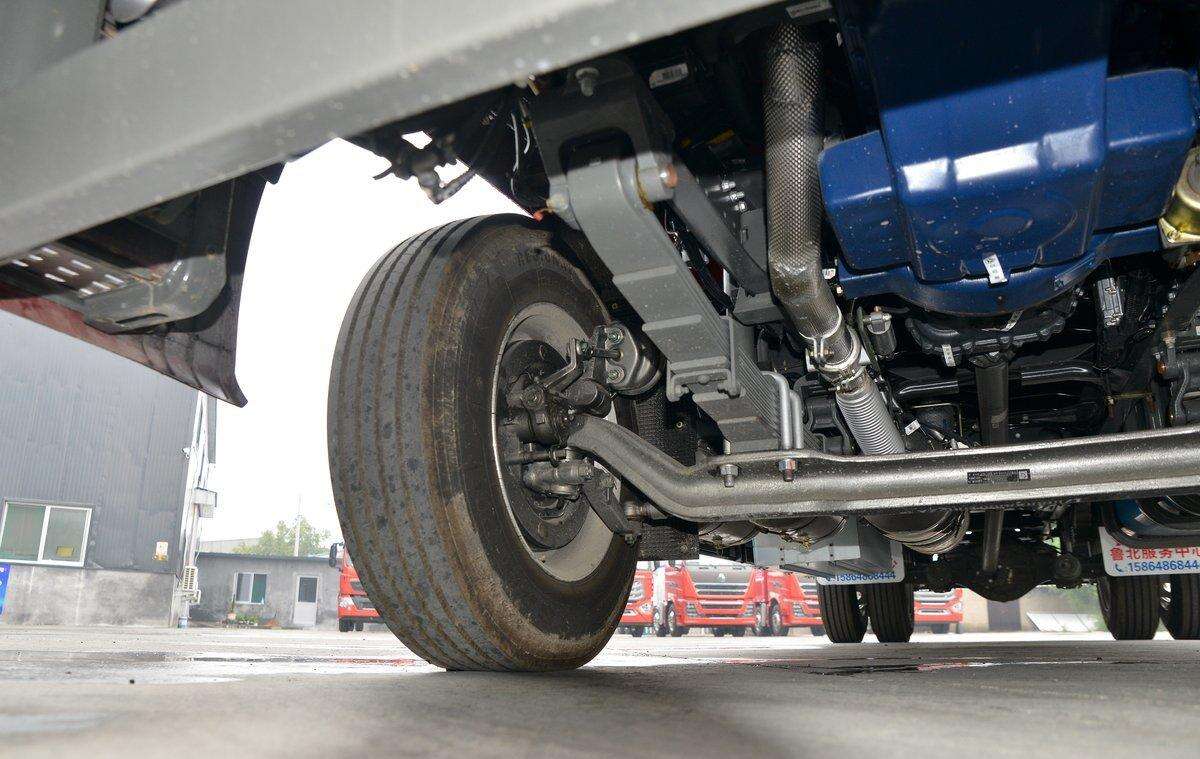

Chassis parameters
Permissible load on front axle:	6500KG	Permissible load on rear axle:	11500KG
Speed atio:	4.33	Number of springs:	3月4日
Aluminum Alloy Wheels:	/font>

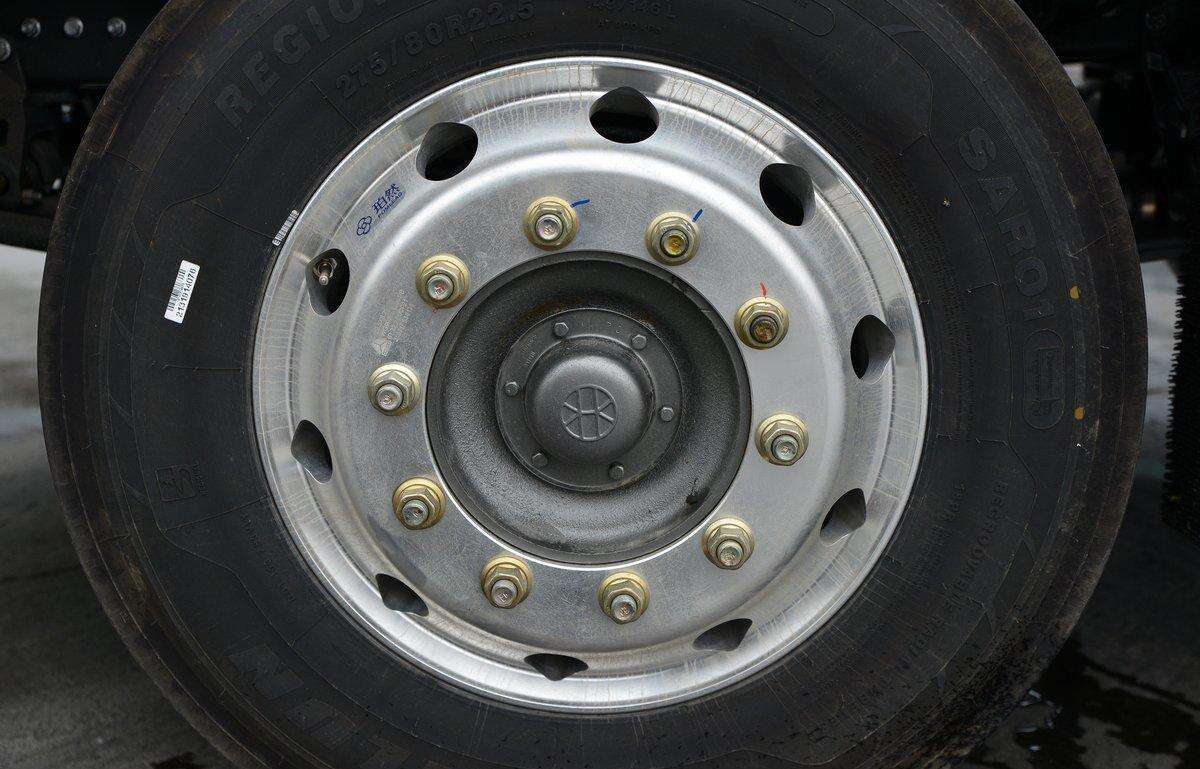

tire
Tire specifications:	275/80R22.5 18PR	Number of tires:	6
