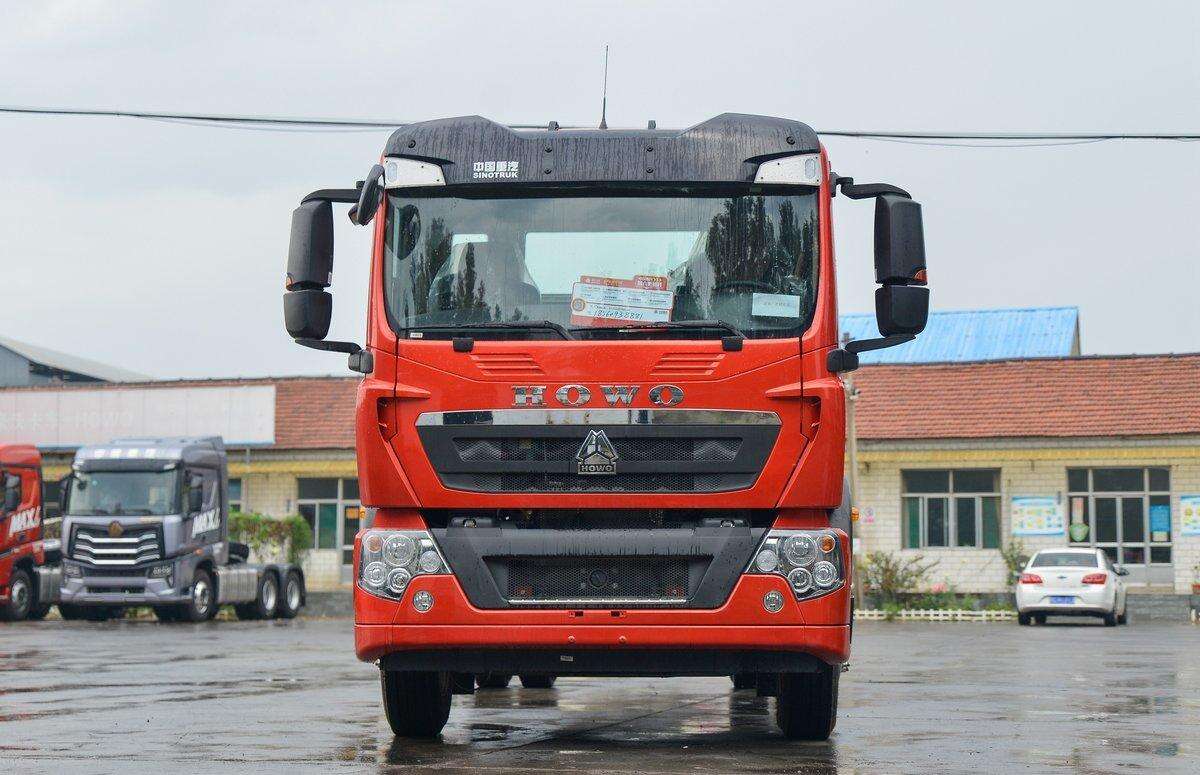

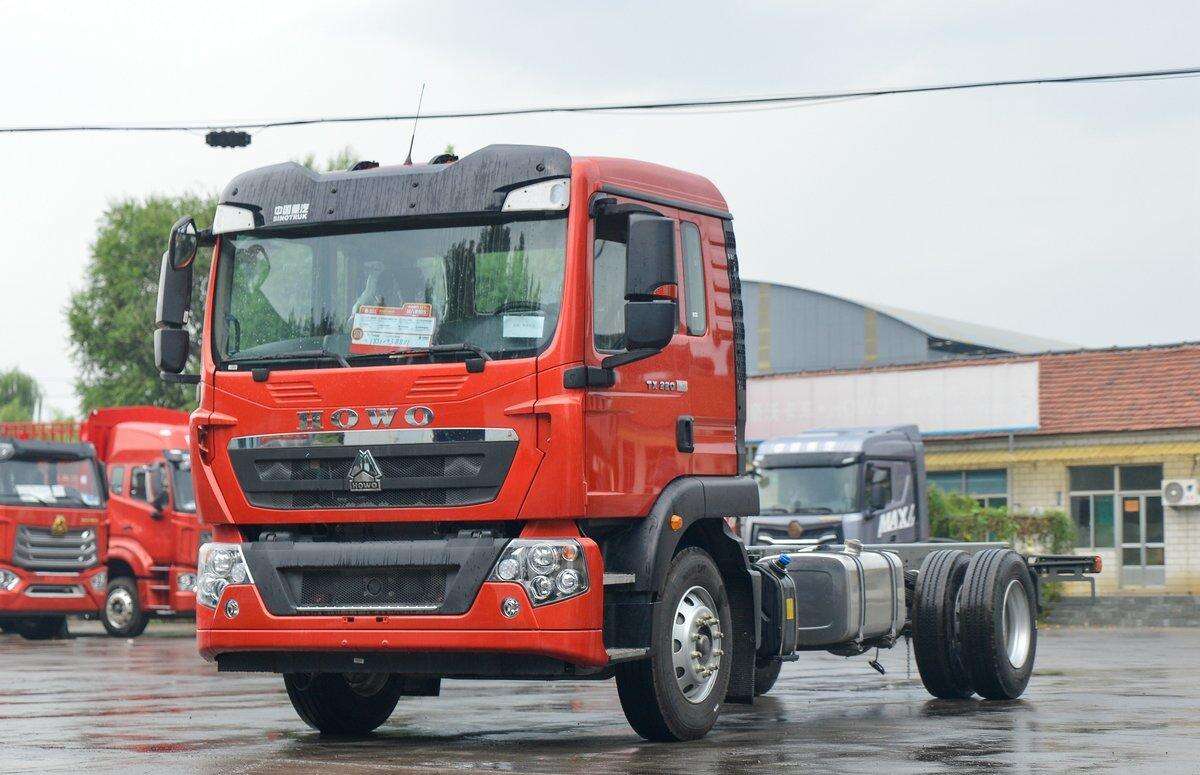

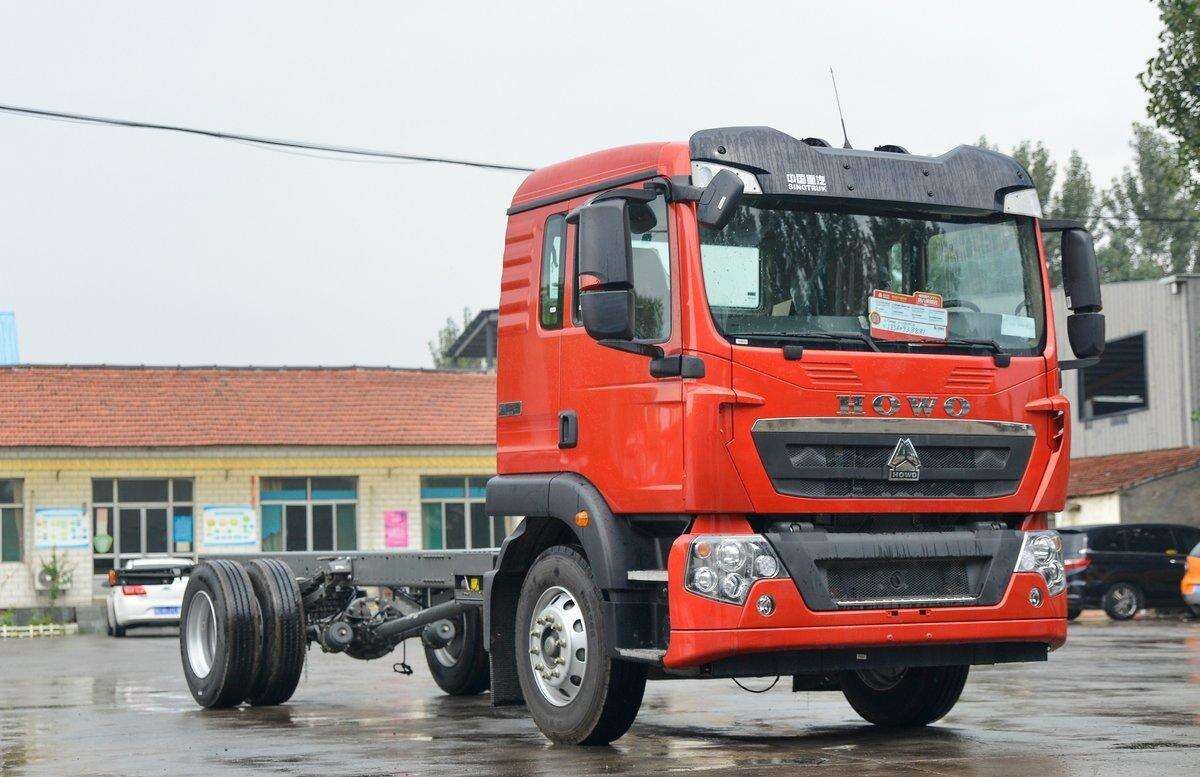

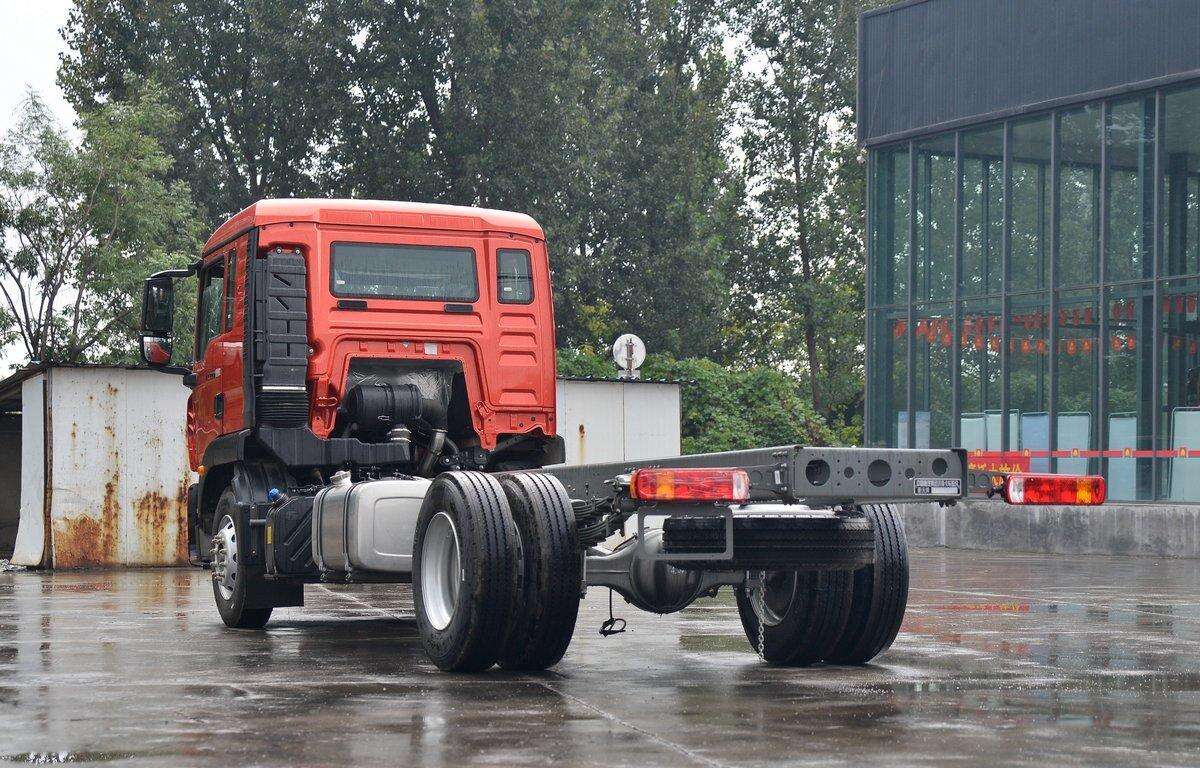

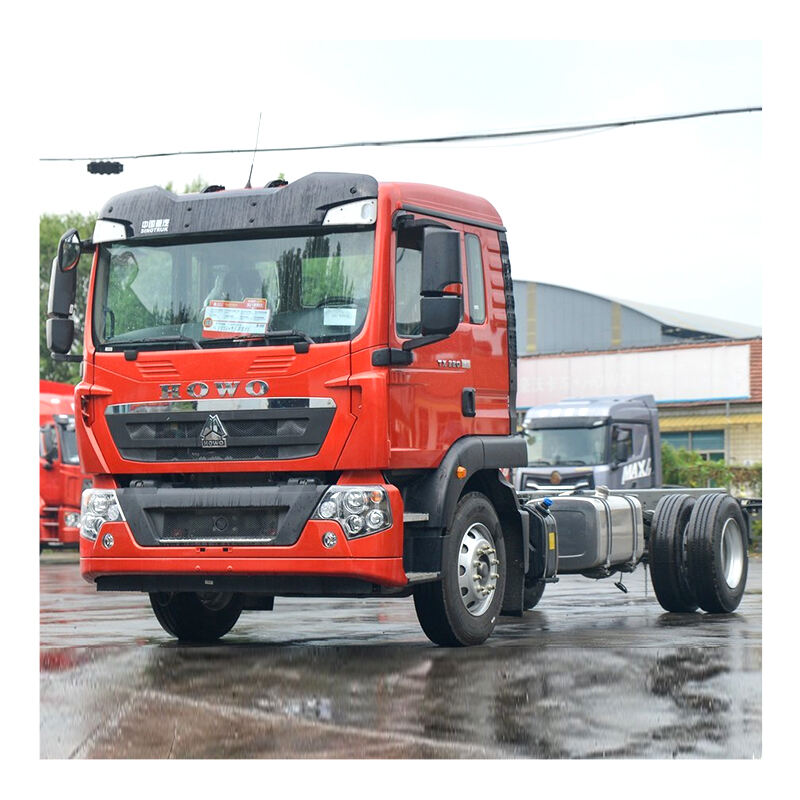

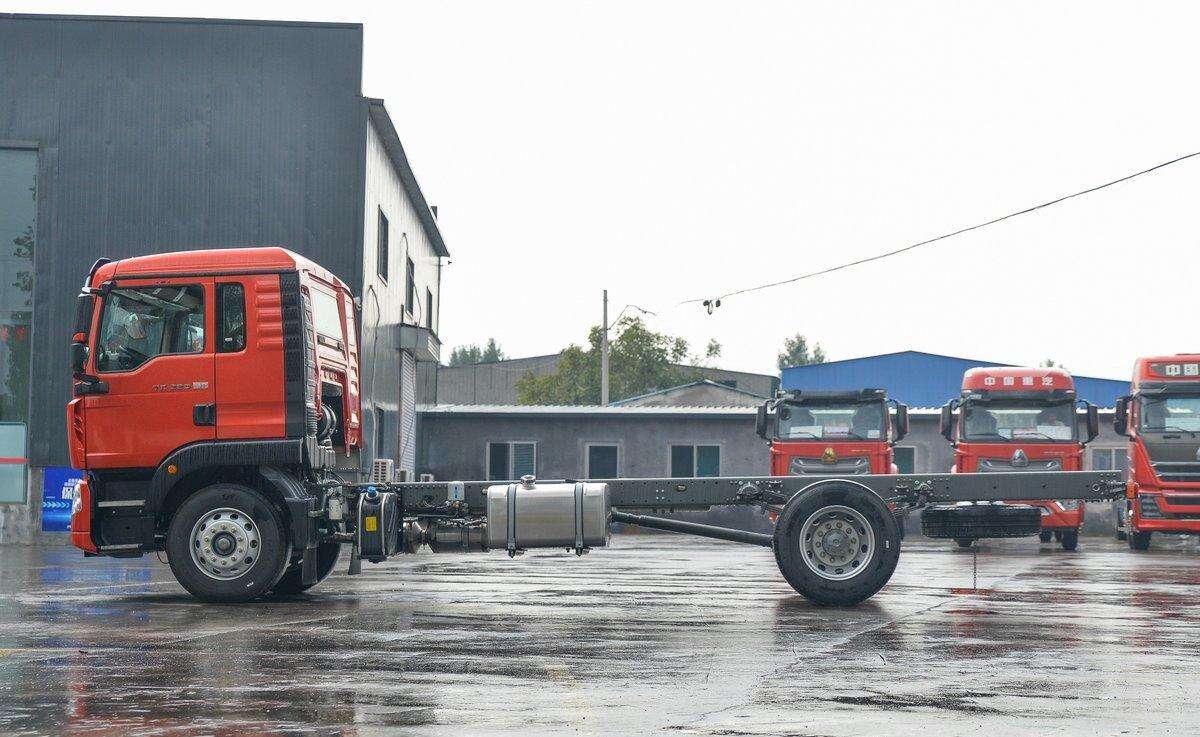

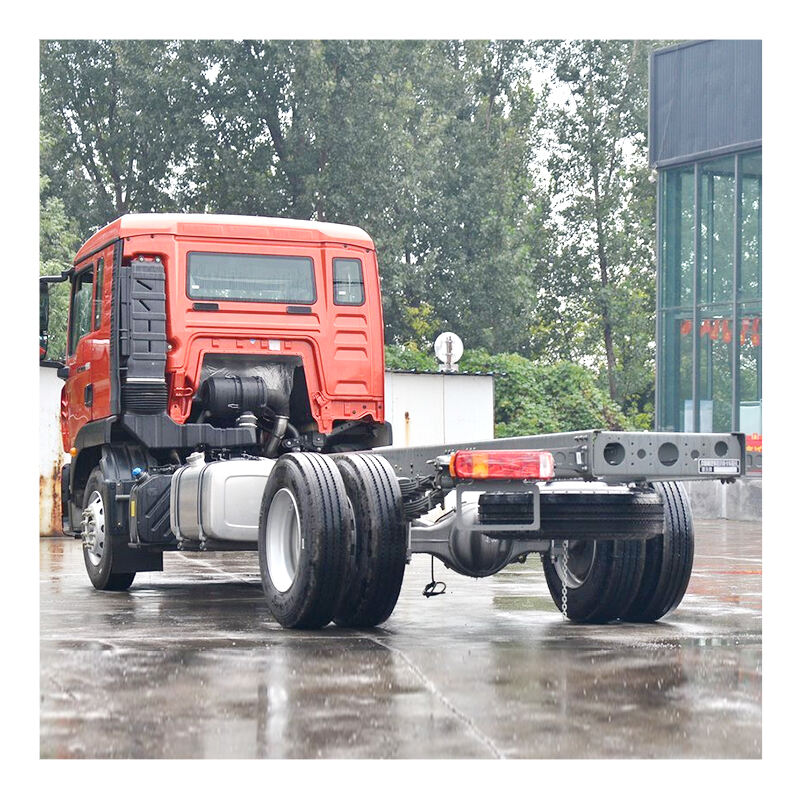

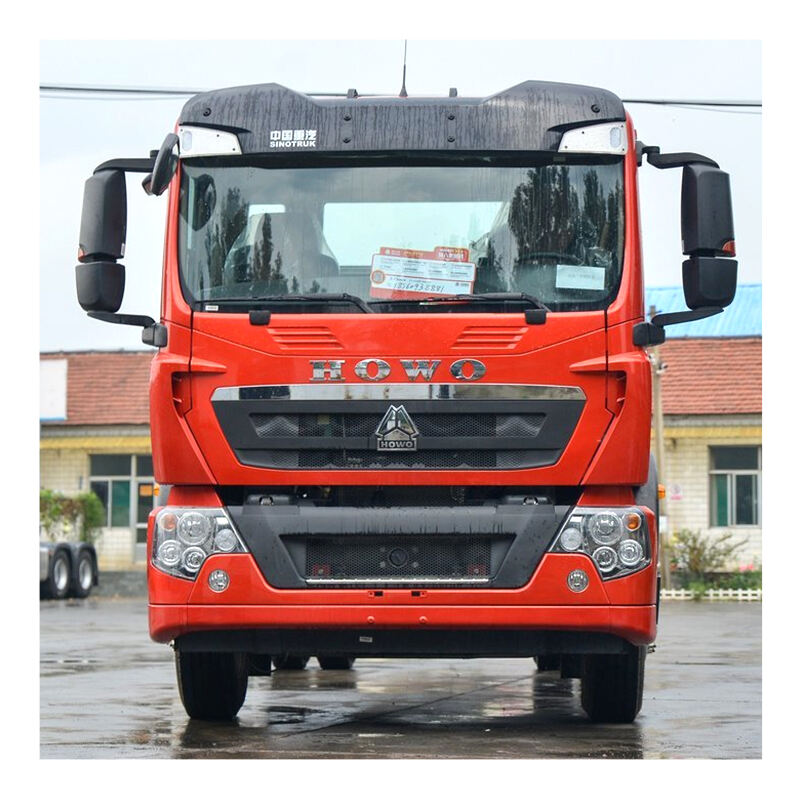

HOWO TX7 220 Chassis Tractor Truck

Introduction

Introduction

Sinotruk HOWO TX 220HP 4X2 6.75m Stake Truck
Basic Information
Announcement Model:	ZZ5187CCYK501GF1	type:	Saddle Truck
Drive type:	4X2	Wheelbase:	5000mm
Box length level:	6.8 m	engine:	Weichai WP4.6NQ220E61
Gearbox:	Sinotruk HW95508STCL	Rear axle ratio:	4.33
Body length:	9 meters	Body width:	2.55 m
Ride height:	3.75 m	Front track:	2035mm
Rear track:	1860mm	Vehicle weight:	7.88 tons
Rated load:	9.99 tons	Total mass:	18 tons
Maximum speed:	101KM/h	Origin:	Jinan, Shandong
Tonnage level:	Medium Card	Driving license:	A1,A2,B2
Approach Angle:	19 degrees	Departure angle:	17 degrees
Market Segments:	Agricultural and sideline products transportation, Green Pass	Front overhang/rear overhang:	1.43/2.57m
Fuel Type:	diesel fuel
Engine parameters
Engine Model:	Weichai WP4.6NQ220E61	Engine Brand:	Weichai
Engine common name:	Weichai WP4.6	Number of cylinders:	4 cylinders
Fuel Type:	diesel fuel	Cylinder arrangement:	In-line
Displacement:	4.58L	Emission standards:	National VI
Maximum output power:	162kw	Maximum horsepower:	220 hp
Maximum Torque:	800Nm	Maximum torque speed:	1200-1800RPM
Rated speed:	2300RPM	Engine Type:	Four valves, high pressure common rail, turbocharged intercooler, EGR+DPF+DOC+SCR
Cargo box parameters
Cargo box form:	Barn type	Length of cargo box:	6.75 m
Cargo box width:	2.47 m

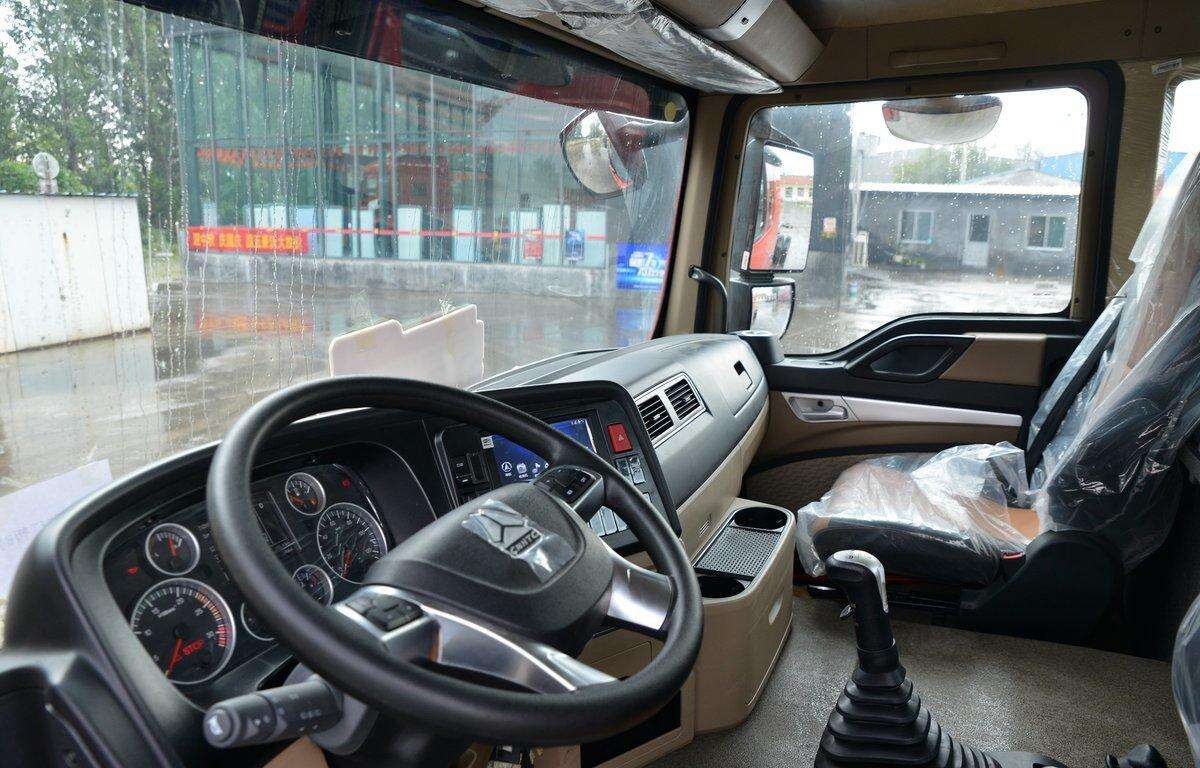

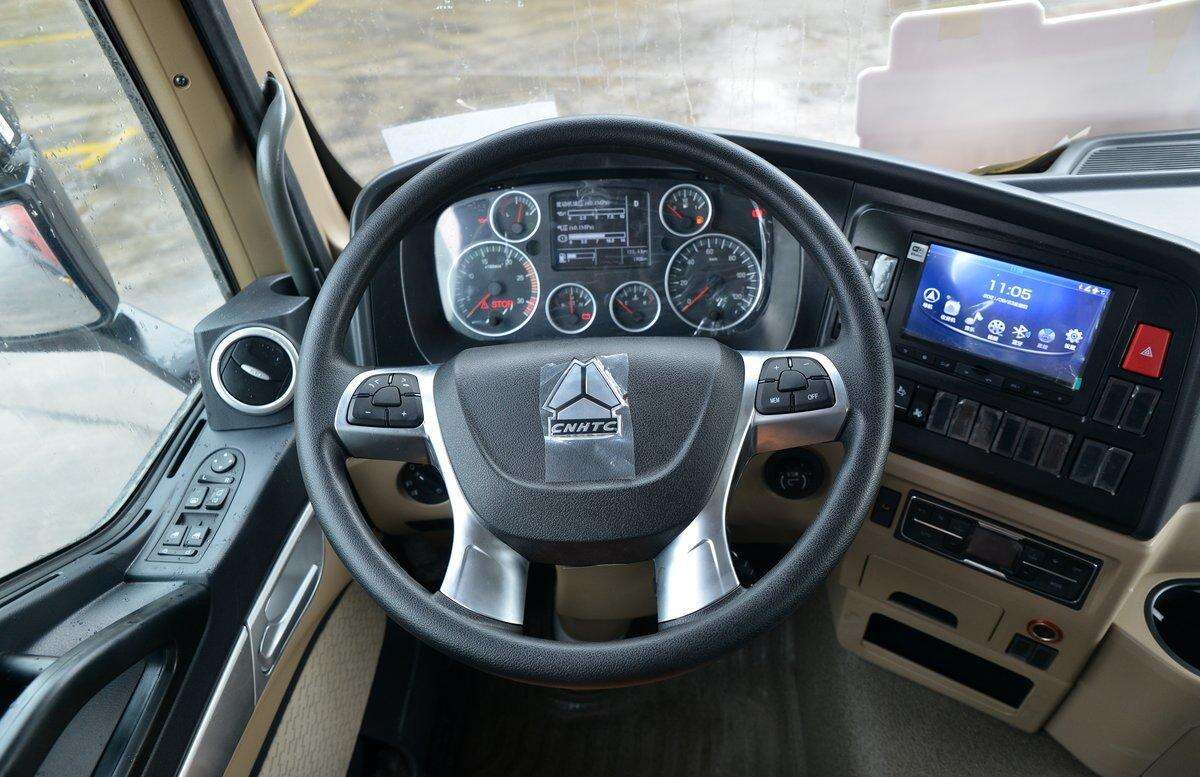

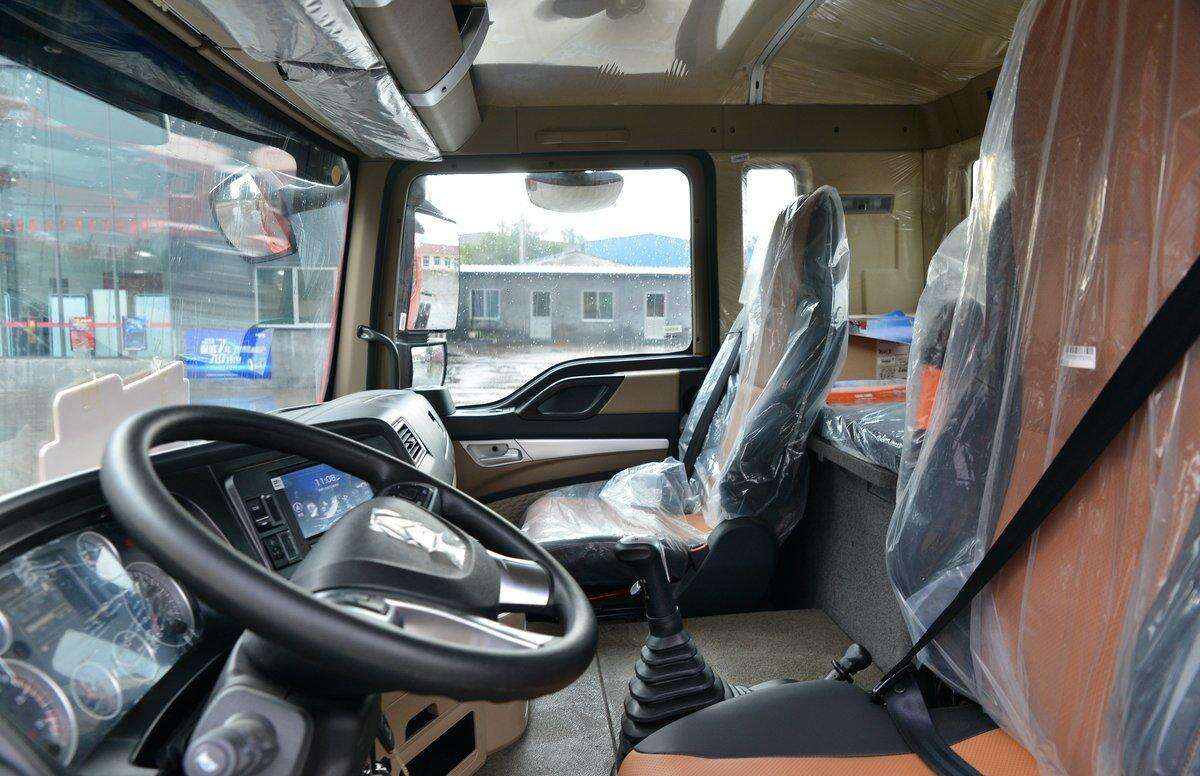

Cab parameters
Cab width:	2280mm	Number of passengers allowed:	2 people
Number of Seat Rows:	Half row	Driver's seat type:	Airbag shock absorbing seat
Gearbox parameters
Gearbox Model:	Sinotruk HW95508STCL	Gearbox brand:	Sinotruk
Shifting method:	Manual	Forward gears:	8 gears
Reverse gear number:	2
tank
Fuel tank capacity:	300L

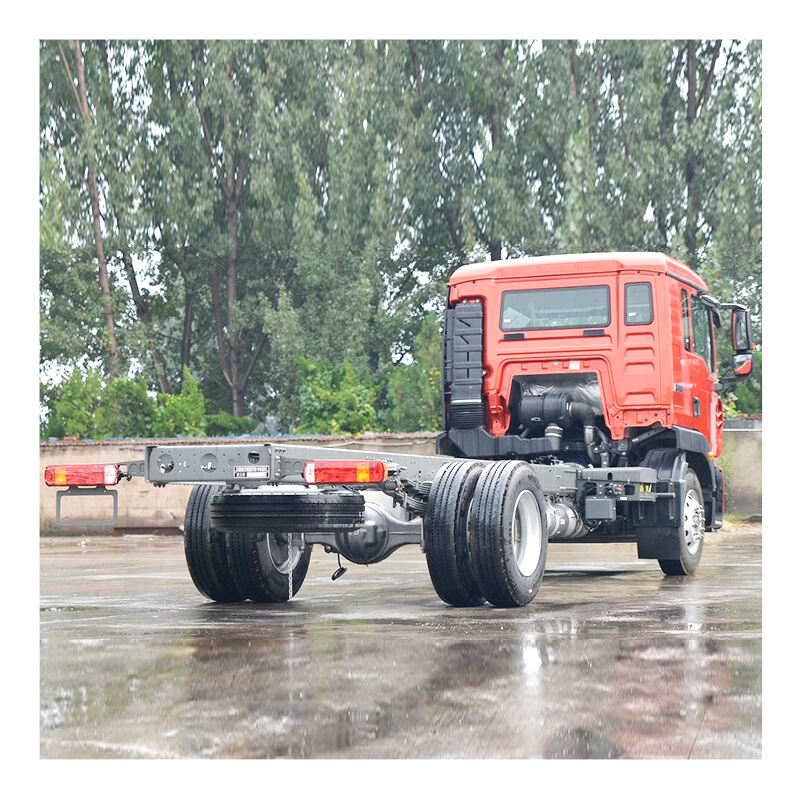

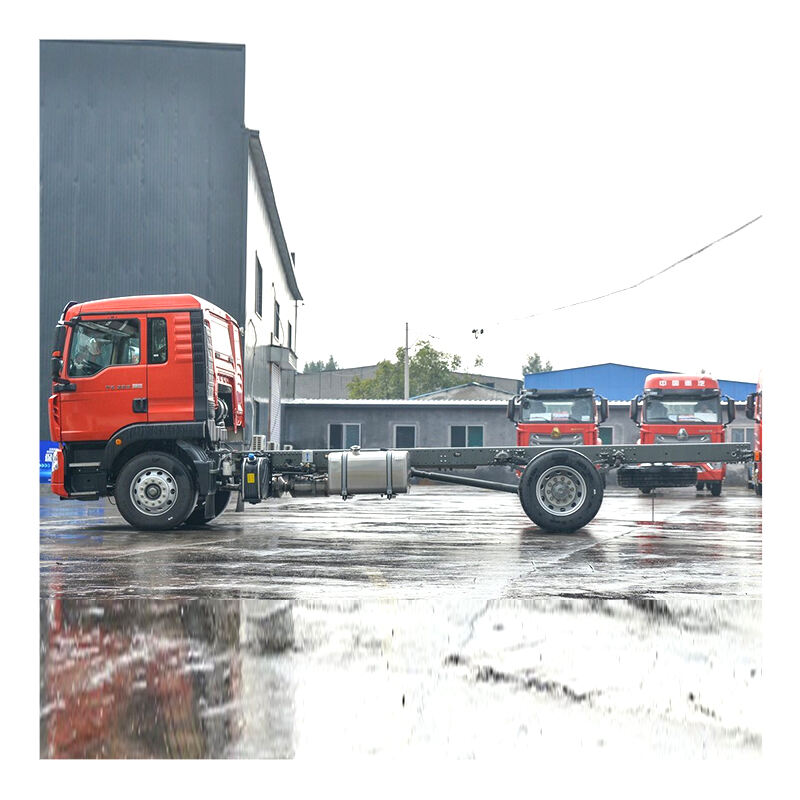

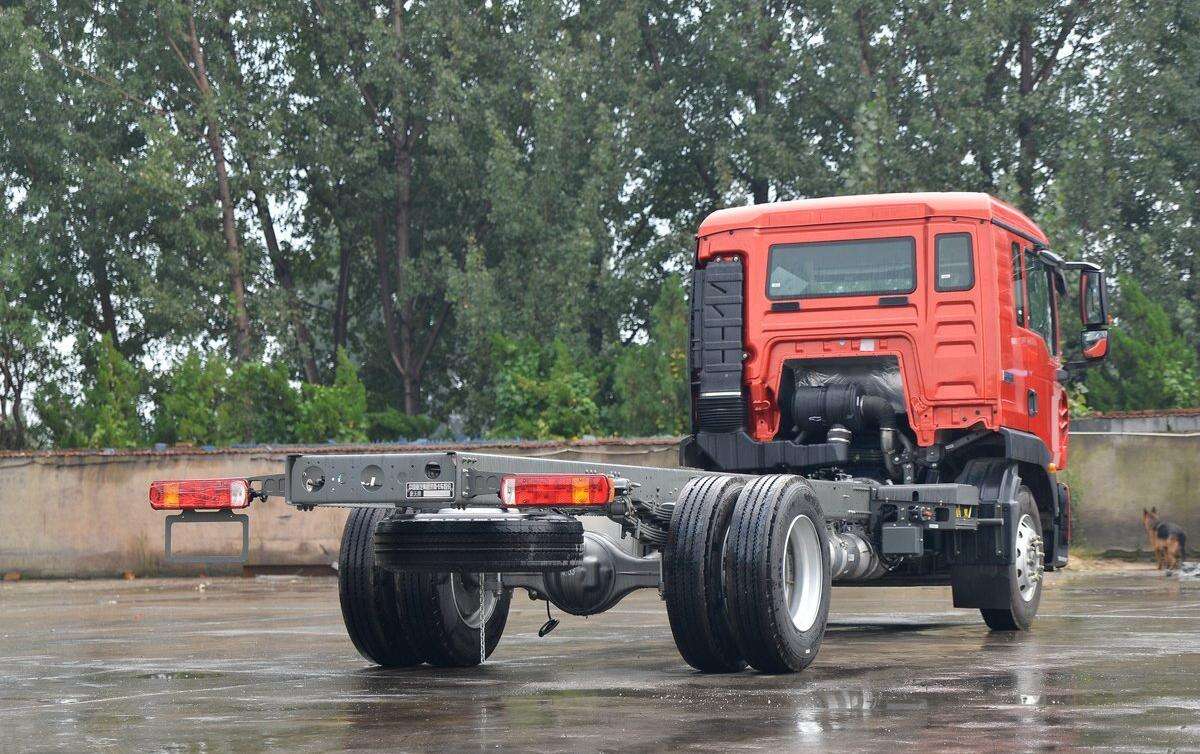

Chassis parameters
Front axle description:	1094 self-adjusting arm front axle (drum)	Permissible load on front axle:	6500KG
Rear Axle Description:	MCJ09BG self-adjusting arm single rear axle (drum)	Permissible load on rear axle:	11500KG
Speed atio:	4.33	Number of springs:	7/7 6)
tire
Tire specifications:	275/80R22.5	Number of tires:	6
