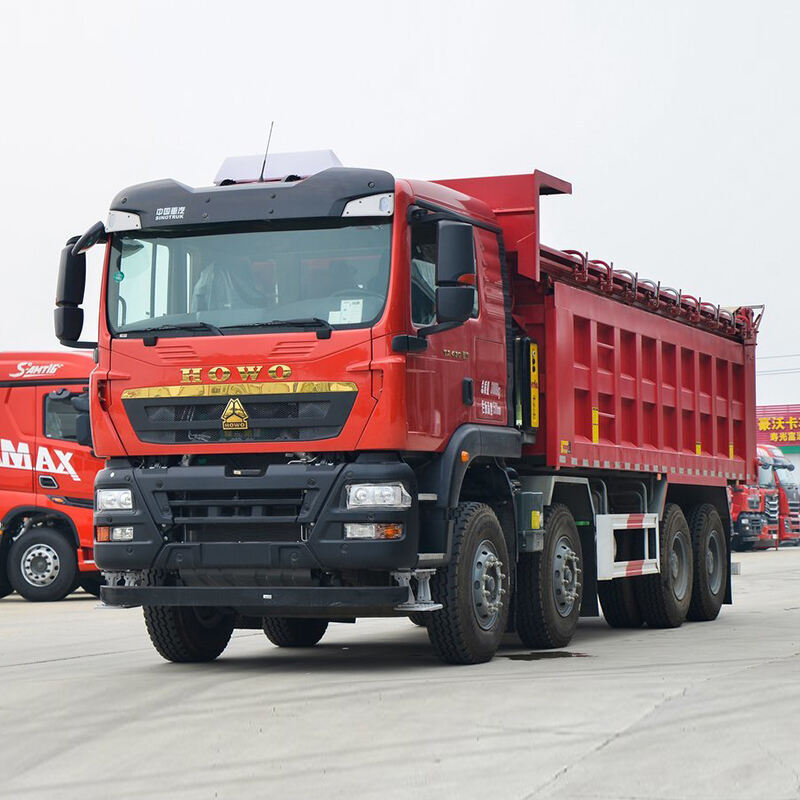

| Basic Information | |||
| Driving license: | A1,A2,B2 | Announcement Model: | ZZ3317V326GF1 |
| Drive type: | 8X4 | Wheelbase: | 1950+3225+1350mm |
| engine: | Weichai WP12.430E62 | Gearbox: | 12-speed gearbox |
| Rear axle ratio: | 5.26 | Body length: | 9.93 m |
| Body width: | 2.55 m | Ride height: | 3.55 m |
| Front track: | 2022/2022mm | Rear track: | 1860/1860mm |
| Vehicle weight: | 15.5 tons | Rated load: | 15.37 tons |
| Total mass: | 31 tons | Tonnage level: | Heavy Truck |
| Approach Angle: | 17 degrees | Departure angle: | 21 degrees |
| Origin: | Jinan, Shandong | Market Segments: | Urban construction waste |
| Fuel Type: | diesel fuel | ||
| Engine parameters | |||
| Engine Model: | Weichai WP12.430E62 | Engine Brand: | Weichai |
| Number of cylinders: | 6 cylinders | Fuel Type: | diesel fuel |
| Displacement: | 11.6L | Emission standards: | National VI |
| Maximum horsepower: | 430 hp | Maximum output power: | 316kW |
| Maximum Torque: | 2100N路m | Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1900rpm | Engine Type: | CR+DOC+DPF+Hi_SCR |

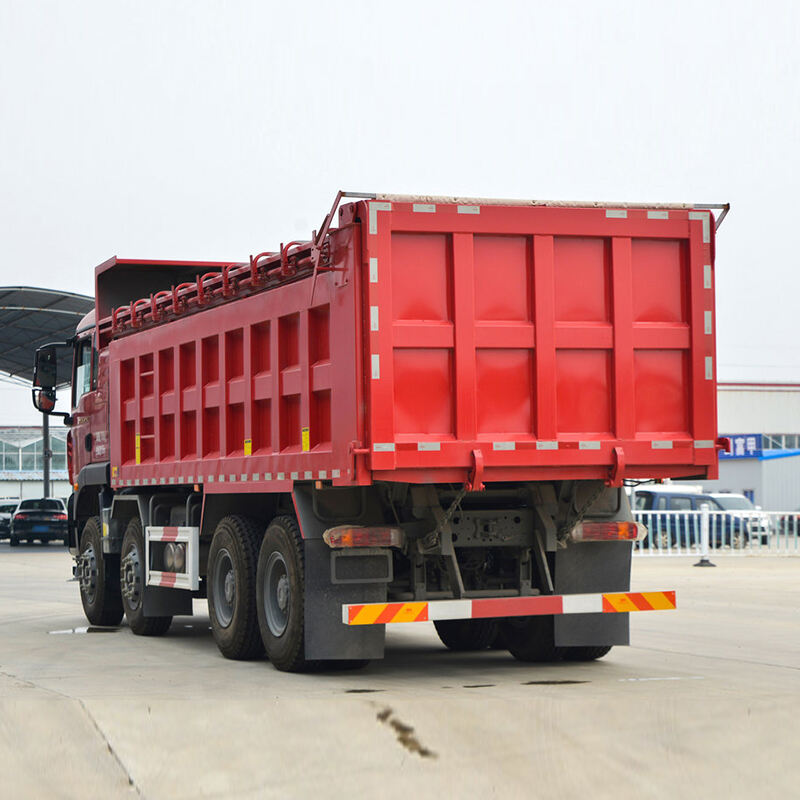

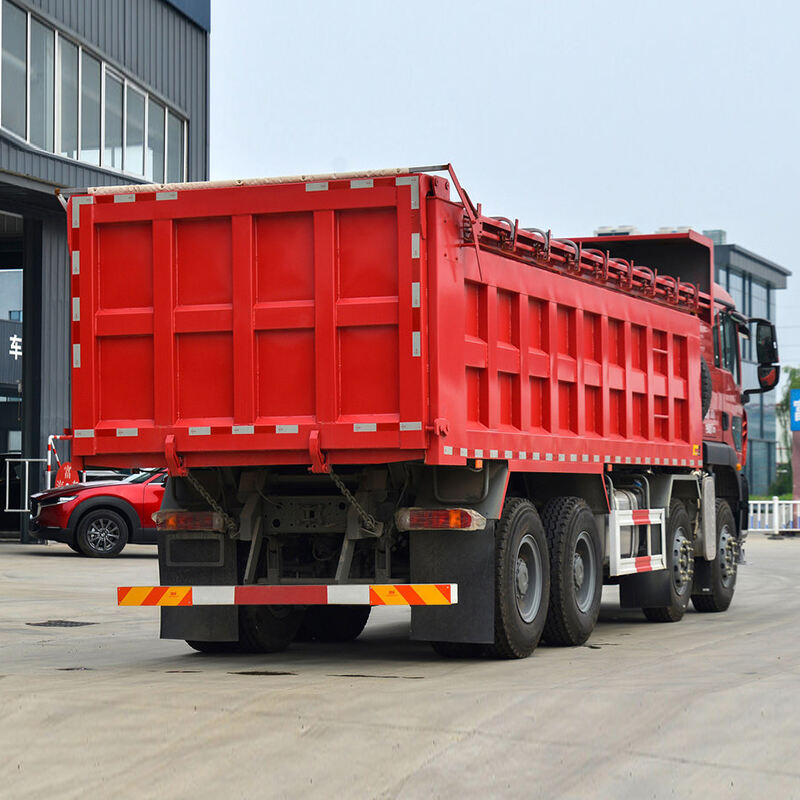

| Cargo box parameters | |||
| Length of cargo box: | 6.8 m | Cargo box width: | 2.35 m |
| Cargo box height: | 1.5 m | Cargo box form: | Self-unloading |

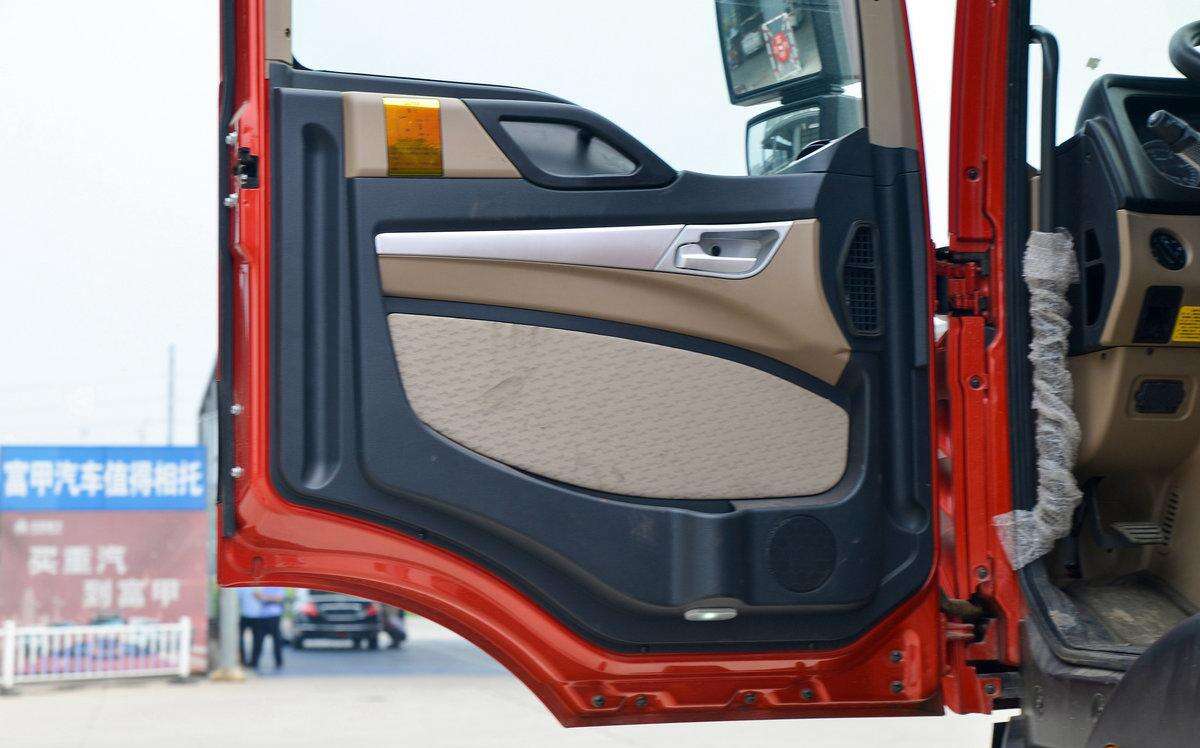

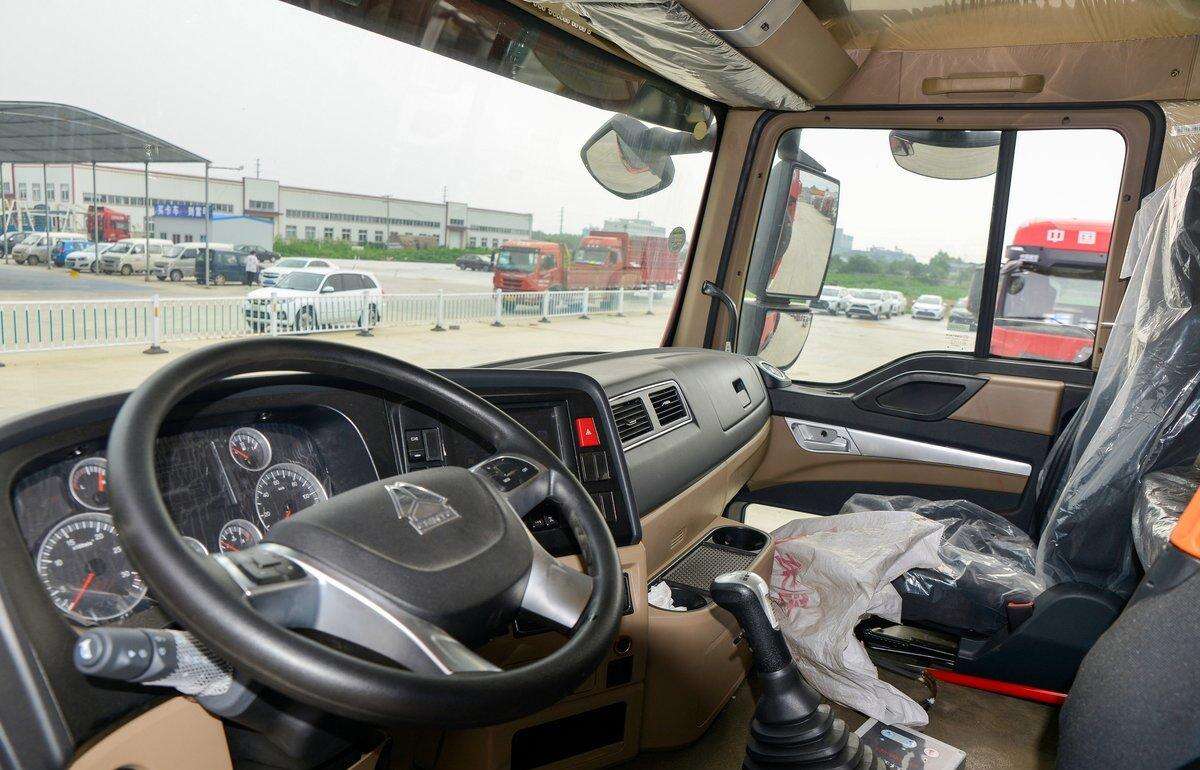

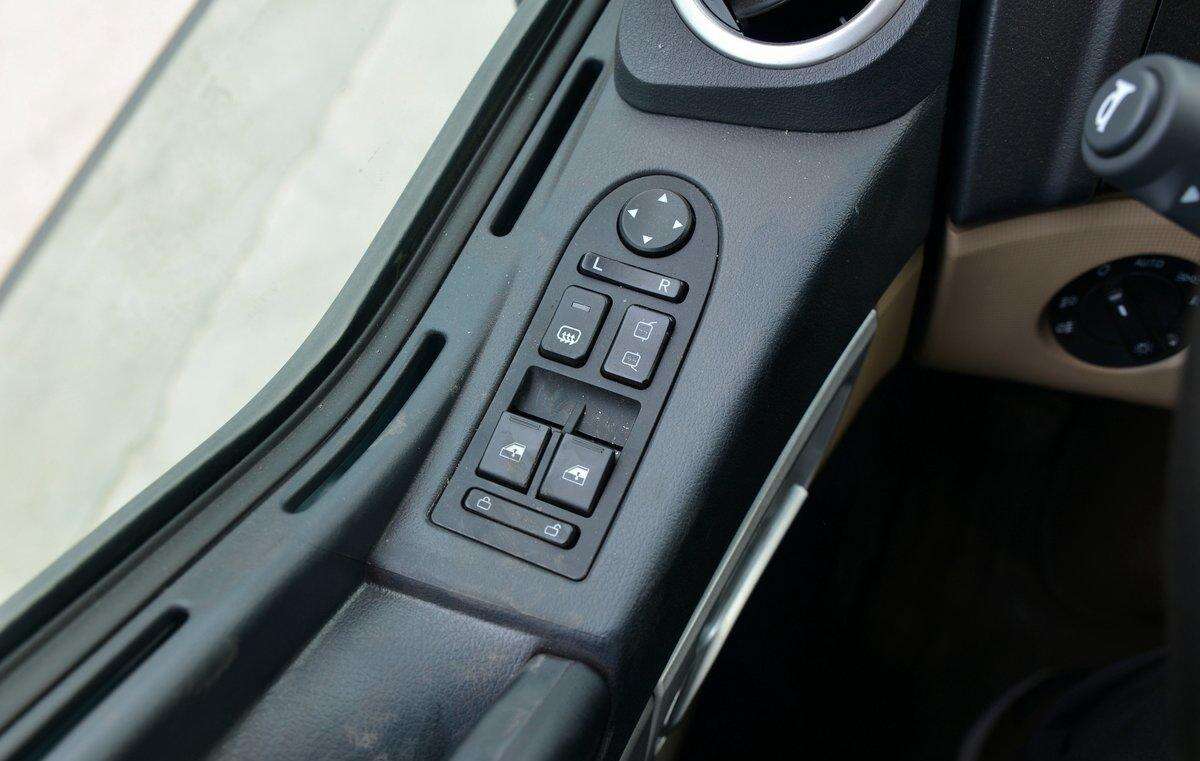

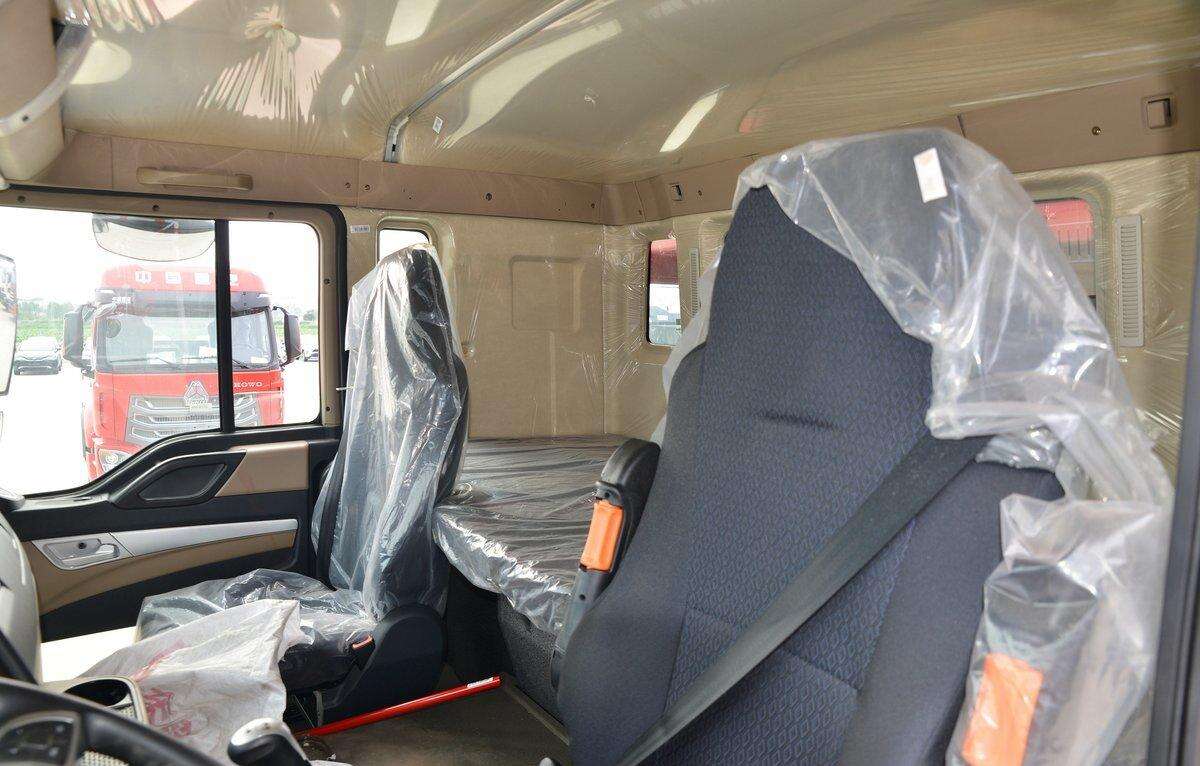

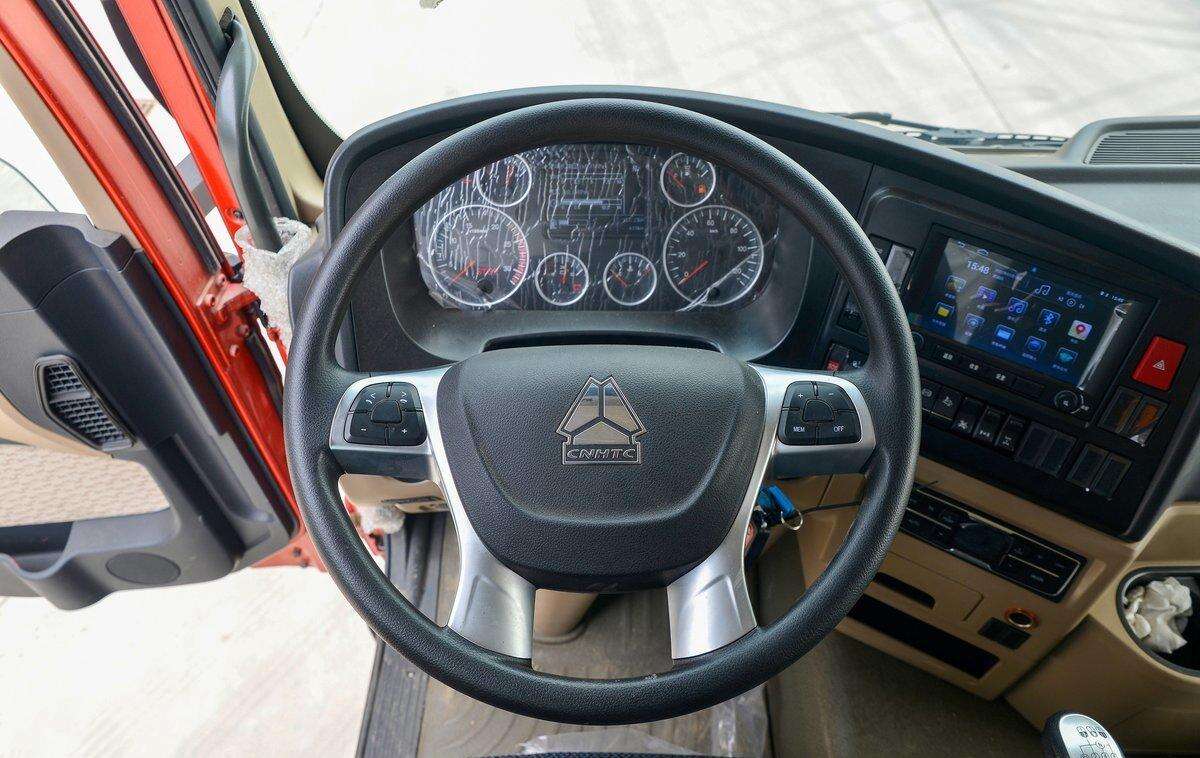

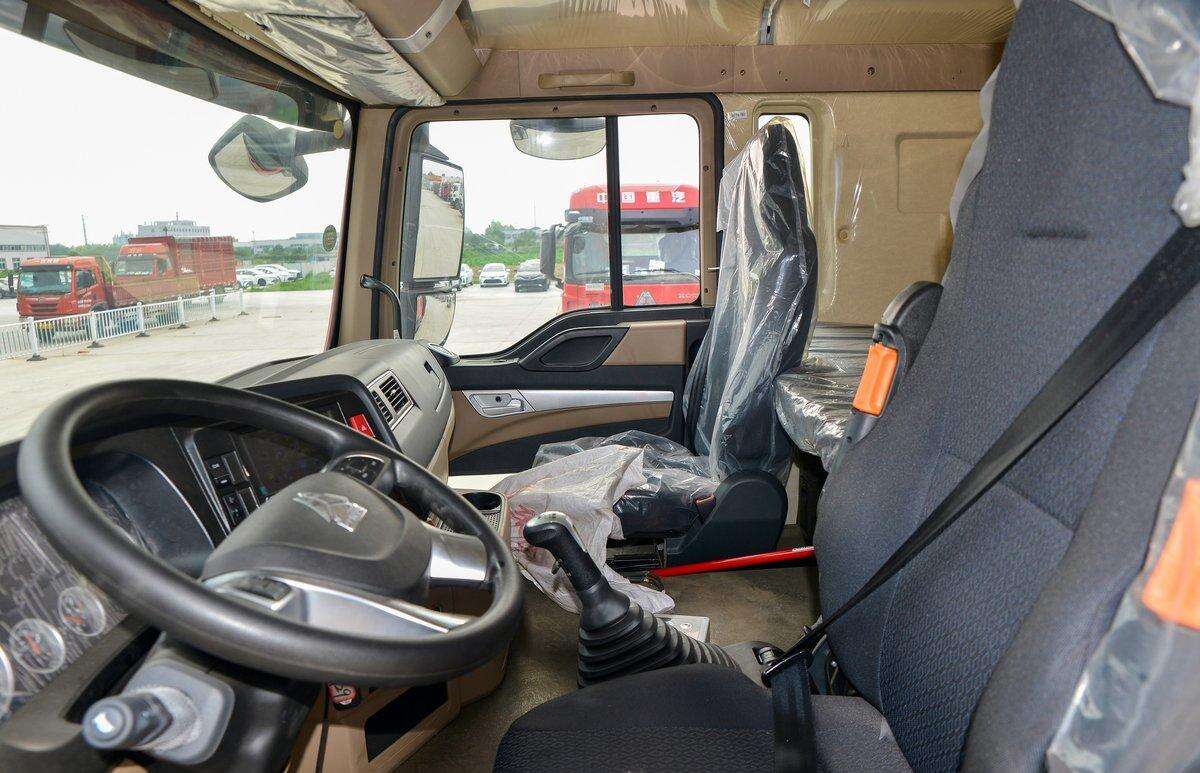

| Cab parameters | |||
| Cab width: | 2280mm | Number of passengers allowed: | 2 people |
| Gearbox parameters | |||
| Gearbox Model: | 12-speed gearbox | Shifting method: | Manual |
| Forward gears: | 12 gears | Reverse gear number: | 2 |
| Chassis parameters | |||
| Permissible load on front axle: | 6500/7000kg | Permissible load on rear axle: | 17500(two-axle group)kg |
| Speed atio: | 5.26 | Number of springs: | 2007/7/10 |

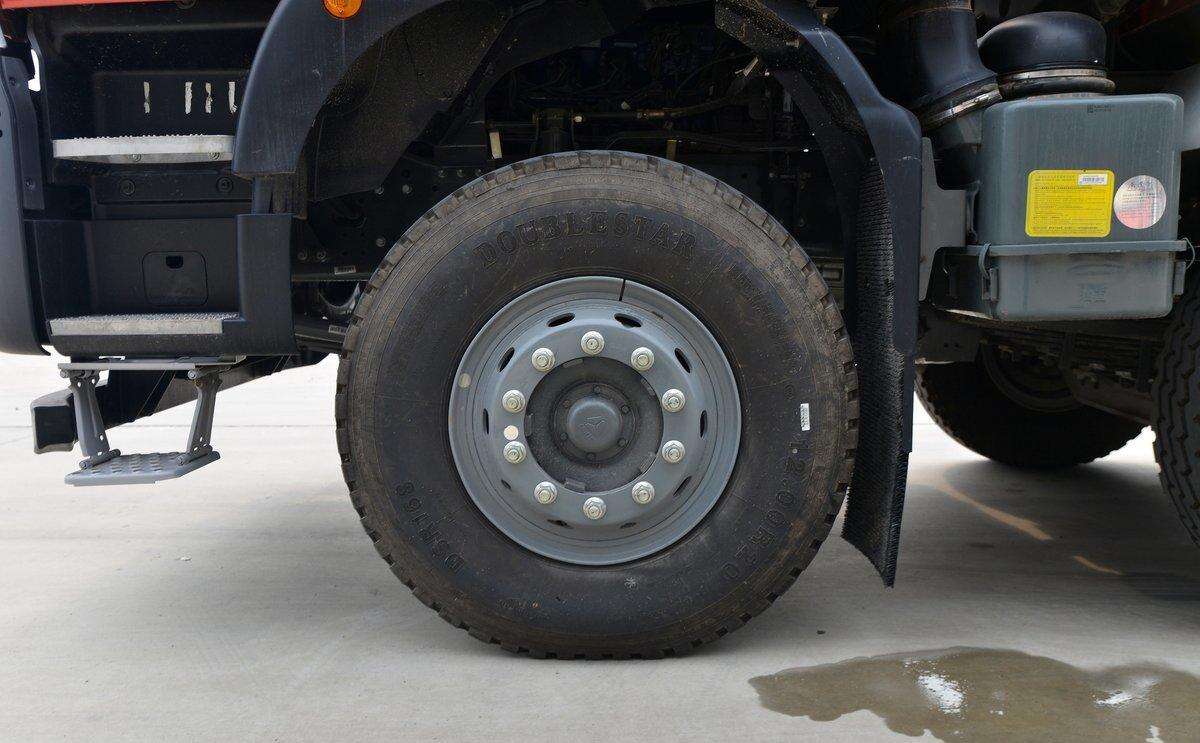

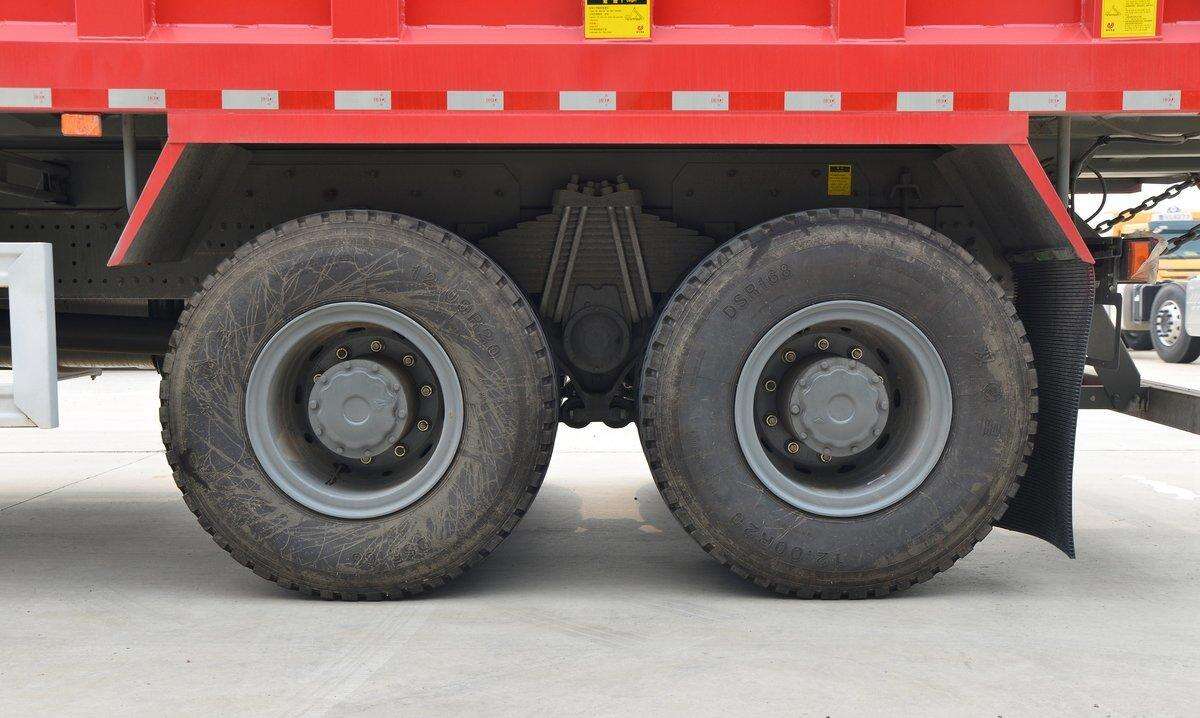

| tire | |||
| Tire specifications: | 12.00R20 | Number of tires: | 12 |
